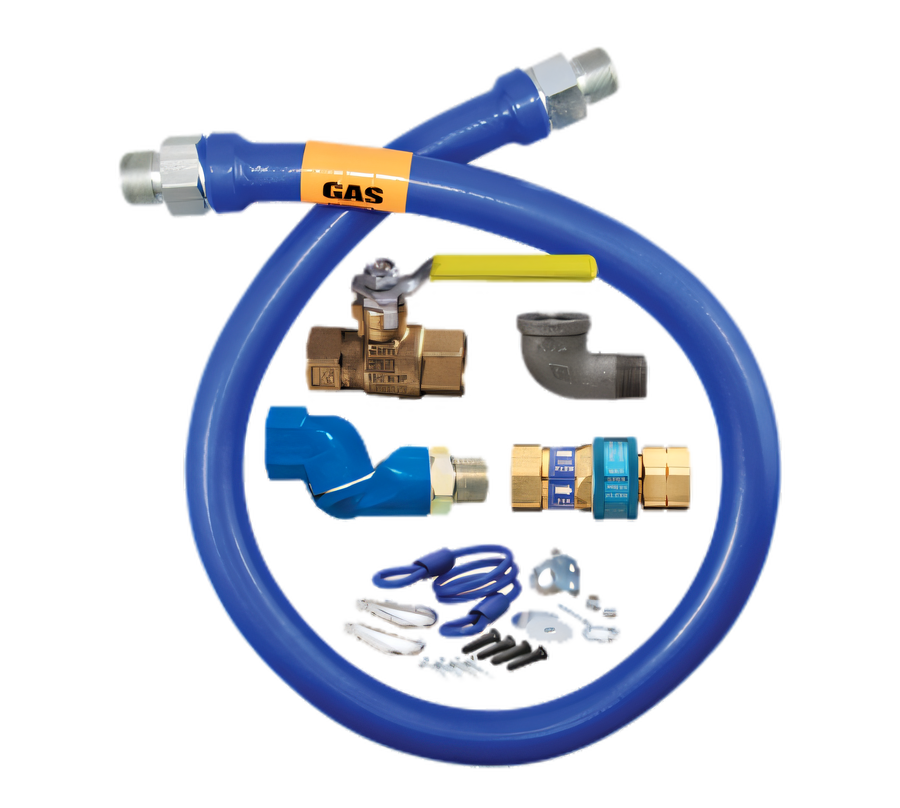

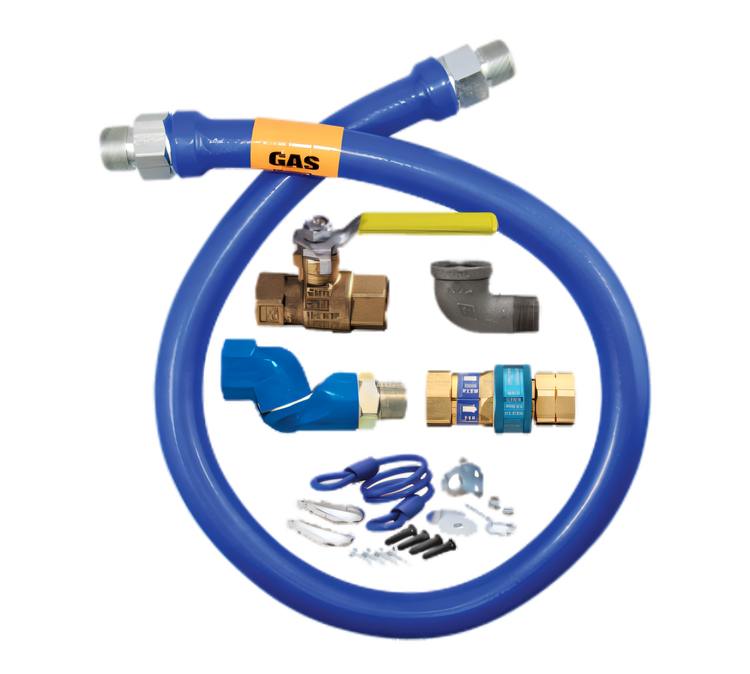

Dormont Blue Hose 72-Inch Moveable Gas Connector Kit, 1-1/4-Inch ID, with Swivel MAX and SnapFast Quick-Disconnect

Includes full port valve, elbow, and restraining cable; 460,000 BTU/hr flow capacity.

A complete moveable gas connection kit designed to reduce stress, speed appliance disconnects, and add safety with built-in thermal shut-off and a restraining device.

  • 72-inch moveable gas connector kit with 1-1/4-inch inside diameter.
  • Swivel MAX 360° end fittings help reduce connector stress and let appliances sit closer to the wall.
  • SnapFast quick-disconnect allows one-handed disconnects and includes thermal shut-off protection.
  • Includes full port valve, elbow, and coiled restraining cable with mounting hardware.
  • Stainless steel braid with blue antimicrobial PVC coating for durability and visibility.
  • Rated for up to 460,000 BTU/hr flow capacity and backed by a limited lifetime warranty.

Product Weight:

15.27 lb

Swivel MAX 360° Rotation

Multi-plane end fitting helps reduce stress on the connector and allows greater appliance placement flexibility.

SnapFast One-Handed Quick-Disconnect

Quick-disconnect fitting makes service and equipment movement easier with one-handed operation.

Thermal Shut-Off Safety

Automatically shuts off gas when internal temperature exceeds 350°F (177°C).

Blue Antimicrobial PVC Coating

Coating over the stainless steel braid helps with visibility and will not hold a flame.

Restraining Device Included

PVC-coated steel restraining cable with mounting hardware helps protect the connector when equipment is moved.

Full Port Valve and Elbow Included

Kit includes a full port brass valve and one malleable iron elbow for a more complete installation.

High Flow Capacity

Rated at 460,000 BTU/hr natural gas flow capacity at 0.5 inch WC pressure drop.

Limited Lifetime Warranty

Covered by a limited lifetime warranty.

Type Moveable Gas Connector Kit
Length 72 Inches
Inside Diameter 1-1/4 Inch
Material 304 Stainless Steel
Finish Blue Antimicrobial PVC
BTU 460,000 BTU/hr
Country of Origin USA
Selling Unit Each
Units Per Case 1

Warranty & Protection

Limited lifetime warranty.

Documents

PDF Cutsheet PDF Download PDF Restraining cable instructions PDF Download

Frequently Asked Questions

The kit includes the Dormont Blue Hose, Swivel MAX, SnapFast quick-disconnect, a full port valve, an elbow, and a restraining cable with hardware.
It is 72 inches long with a 1-1/4-inch inside diameter.
The kit is rated for 460,000 BTU/hr natural gas flow capacity at a 0.5 inch WC pressure drop.
Yes. The SnapFast quick-disconnect automatically shuts off gas when internal temperatures exceed 350°F (177°C).
Yes. The kit includes a PVC-coated steel multi-strand restraining cable with mounting hardware, and a restraining device is required for moveable gas equipment.
This product is covered by a limited lifetime warranty.
