Dormont Manufacturing

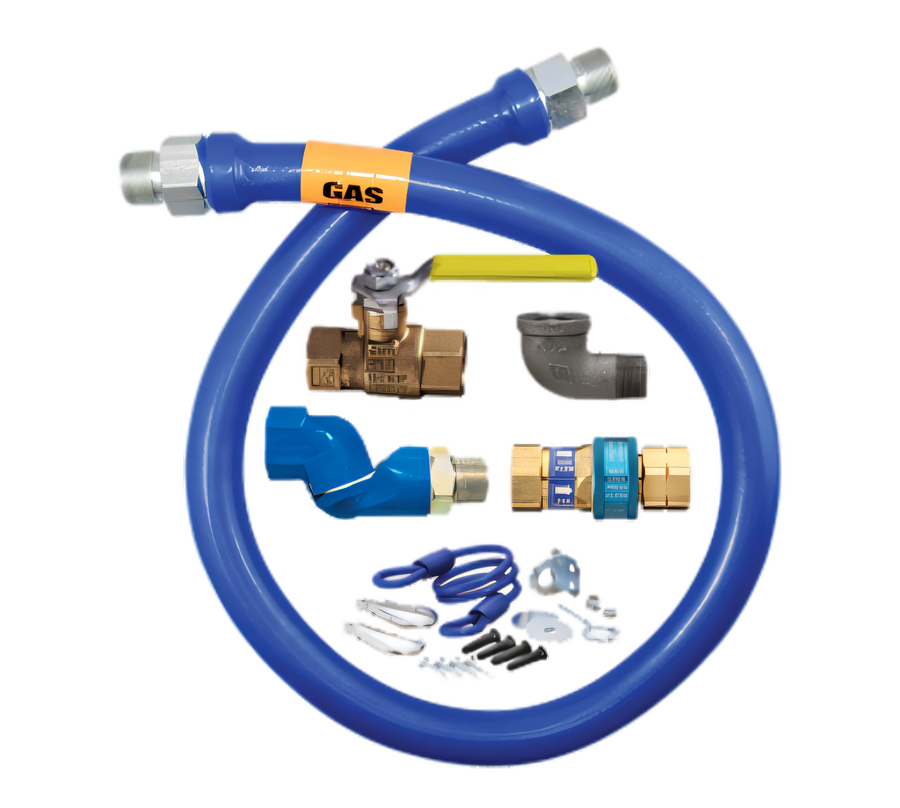

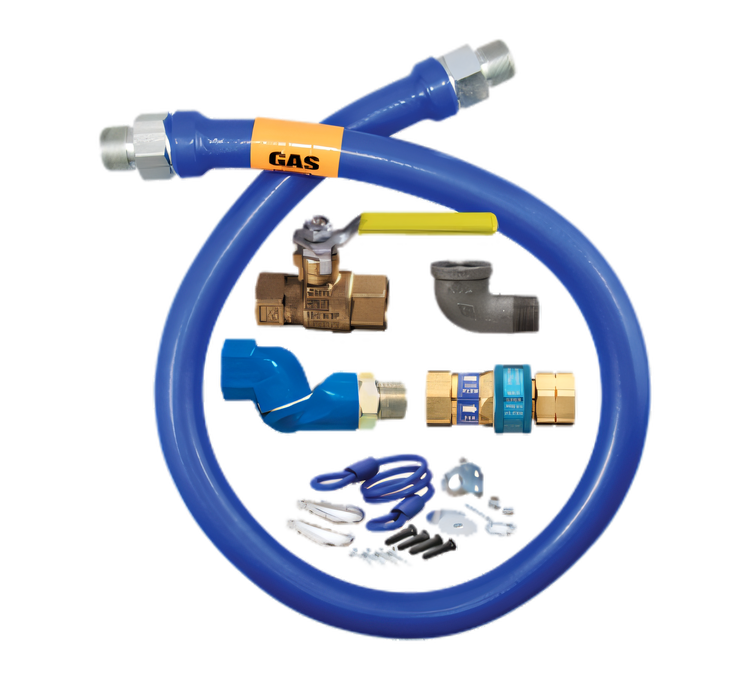

Dormont Blue Hose 1-1/4 Inch I.D. x 48 Inch Moveable Gas Connector Kit with Swivel MAX and SnapFast

SKU: 16125KITS48
GTIN: 662447023921
$833.06
/each
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers Dormont Manufacturing Gas Hose New Arrivals Restaurant Equipment Restaurant Equipment Parts

Dormont Blue Hose 1-1/4 Inch I.D. x 48 Inch Moveable Gas Connector Kit with Swivel MAX and SnapFast

Deluxe kit with full-port valve, elbow, and restraining cable

Built for moveable commercial gas equipment, this high-capacity 48-inch kit combines Swivel MAX flexibility, SnapFast quick-disconnect safety, and a restraining device for a more secure install.

  • Complete deluxe moveable gas connector kit for commercial kitchens.
  • 1-1/4 in. I.D. and 48 in. length support high-capacity gas flow.
  • Swivel MAX 360° ends reduce hose stress and help appliances sit closer to the wall.
  • SnapFast quick-disconnect adds one-handed operation and thermal shutoff protection.
  • Includes full-port valve, elbow, and coiled restraining cable with hardware.
  • Blue antimicrobial PVC coating over stainless steel construction helps protect the hose.
  • Limited lifetime warranty for the original appliance connection.

Product Weight:

13.08 lb

Swivel MAX Rotational End Fittings

360° movement at the hose ends helps reduce stress on the connector and gives installers more positioning flexibility.

SnapFast Quick-Disconnect

One-handed disconnect fitting makes service easier and includes thermal shutoff protection if internal temperatures exceed 350°F.

Stainless Steel Hose Construction

Annealed 304 stainless steel tubing with multi-strand stainless steel wire braid provides durable commercial gas connector performance.

Blue Antimicrobial PVC Coating

Blue antimicrobial PVC coating helps protect the hose and will not hold a flame; it melts at 350°F.

Included Restraining Device

Coiled PVC-coated steel cable and mounting hardware are included to help meet moveable equipment restraint requirements.

Full-Port Valve and Elbow Included

Kit includes a full-port brass valve and one malleable iron elbow for a more complete installation package.

High Flow Capacity

Rated for 482,000 BTU/hr natural gas flow capacity at 0.5 inch W.C. pressure drop.

Designed For Moveable Equipment

Engineered for commercial gas appliances that are mounted on casters or otherwise subject to movement.

Type Moveable Gas Connector Kit
Style Deluxe Kit
Inside Diameter 1-1/4 Inches
Length 48 Inches
Material 304 Stainless Steel
Finish Blue Antimicrobial PVC
BTU 482,000 BTU/hr
Country Of Origin USA
Selling Unit Each
Units Per Case 1

Warranty & Protection

Limited lifetime warranty

Documents

PDF Cutsheet PDF Download PDF Restraining cable instructions PDF Download

Frequently Asked Questions

The kit includes the Dormont Blue Hose, Swivel MAX, SnapFast quick-disconnect, a full-port valve, an elbow, and a coiled restraining cable with hardware.
It has a 1-1/4 inch inside diameter and is 48 inches long.
The hose is rated for 482,000 BTU/hr natural gas flow capacity at a 0.5 inch W.C. pressure drop.
SnapFast includes a thermal shutoff that closes the gas flow when internal temperatures exceed 350°F, and Swivel MAX helps reduce stress on the connector.
Yes. The documentation states a restraining device is required for moveable gas equipment, and this kit includes one.
No. The documentation says it is for indoor use only and should not be used in temperatures less than 32°F (0°C).
