Dormont Blue Hose 1-1/4-Inch I.D. x 60-Inch Deluxe Moveable Gas Connector Kit

SKU: 16125KIT2S60
GTIN: 662447050507
$1,107.13
/each
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers Dormont Manufacturing Gas Hose General Restaurant Equipment Parts New Arrivals Parts & Accessories Restaurant Equipment Restaurant Equipment Parts

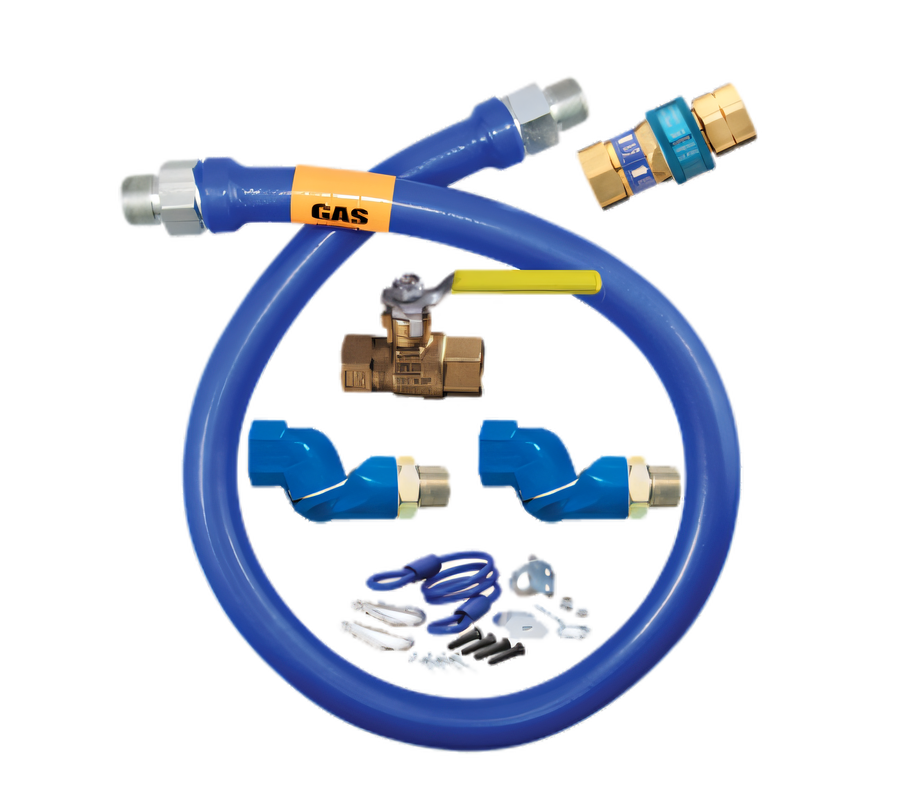

Dormont Blue Hose 1-1/4-Inch I.D. x 60-Inch Deluxe Moveable Gas Connector Kit

Includes SnapFast Quick-Disconnect, Double Swivel MAX Ends, Full Port Valve, and Restraining Device

Built for movable commercial gas appliances, this deluxe 60-inch connector kit combines flexible 360° movement, quick-disconnect safety, and an included restraining device.

  • 1-1/4" I.D. x 60" deluxe kit for moveable commercial gas appliances
  • 441,000 BTU/hr minimum flow capacity
  • Double Swivel MAX ends provide 360° multi-plane movement and help reduce connector stress
  • SnapFast quick-disconnect offers one-handed release with thermal shutoff at 350°F
  • Includes restraining device, full port valve, and mounting hardware; limited lifetime warranty

Product Weight:

14.88 lb

Double Swivel MAX Ends

360° rotational end fittings at both ends reduce stress on the connector and improve appliance placement.

SnapFast Quick-Disconnect

One-handed quick-disconnect fitting automatically shuts off gas when internal temperature exceeds 350°F (177°C).

Stainless Steel Hose Construction

Annealed 304 stainless steel tubing with multi-strand stainless steel wire braid for durable performance.

Blue Antimicrobial PVC Coating

Blue PVC coating helps protect the braid, melts at 350°F (177°C), and will not hold a flame.

Included Restraining Device

PVC-coated, multi-strand steel restraining cable with mounting hardware helps prevent strain on the connector.

Full Port Valve

Included brass body valve provides shutoff capability for the appliance connection.

High Flow Capacity

Rated at 441,000 BTU/hr minimum for the 1-1/4-inch I.D. x 60-inch configuration.

Limited Lifetime Warranty

Covered for the life of the original appliance to which it is connected.

Type Moveable Gas Connector Kit
Style Deluxe Kit
Length 60 Inches
Inside Diameter 1-1/4 Inches
BTU 441,000 BTU/hr
Material Stainless Steel
Finish Blue Antimicrobial PVC Coating
Color Blue
Shipping Weight 14.88 lb.
Country of Origin USA
Selling Unit Each
Units Per Case 1

Warranty & Protection

Limited lifetime warranty

Documents

PDF Cutsheet PDF Download PDF Restraining cable instructions PDF Download

Frequently Asked Questions

The kit includes the Dormont Blue Hose, Double Swivel MAX ends, SnapFast quick-disconnect, restraining device, full port valve, and mounting hardware.
It is designed for commercial moveable gas appliances, including equipment mounted on casters or otherwise subject to movement.
It allows one-handed quick disconnect and automatically shuts off gas when internal temperature exceeds 350°F (177°C).
The 60-inch 1-1/4-inch I.D. configuration is rated at 441,000 BTU/hr.
Yes. The documentation states a restraining device is required for all moveable gas equipment, and this kit includes one.
Yes. The document specifies indoor use only and notes it is not for use in temperatures below 32°F (0°C).
