Dormont Manufacturing

Dormont Blue Hose 1-1/4 Inch ID x 36 Inch Deluxe Moveable Gas Connector Kit

SKU: 16125KIT2S36
GTIN: 662447034972
$992.62
/each
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers Dormont Manufacturing Gas Hose General Restaurant Equipment Parts New Arrivals Parts & Accessories Restaurant Equipment Restaurant Equipment Parts

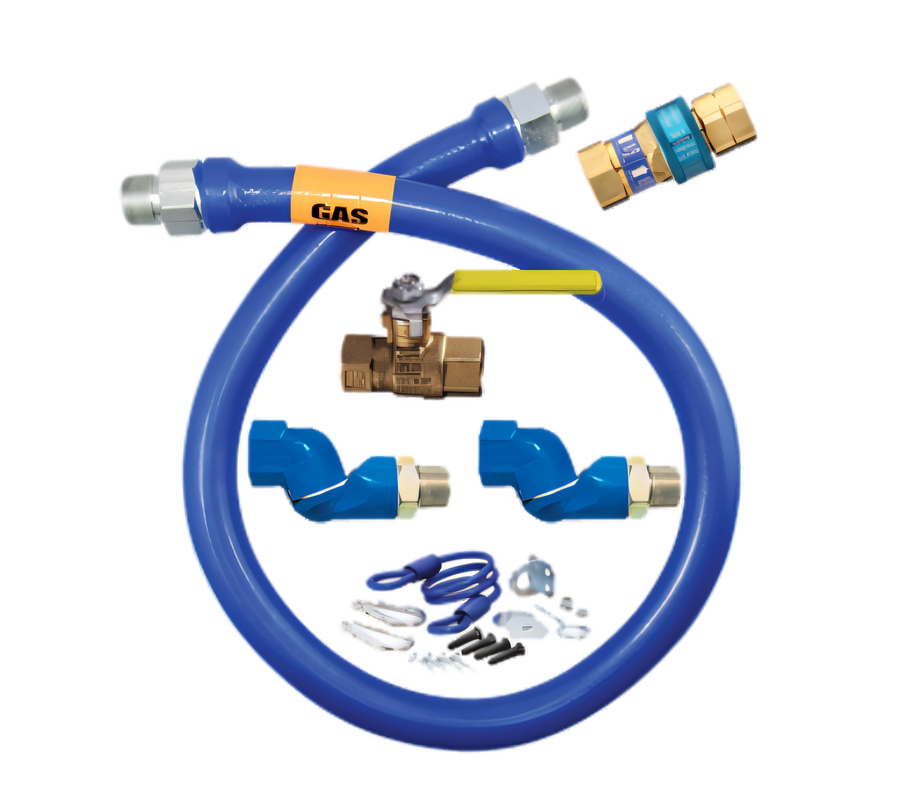

Dormont Blue Hose 1-1/4 Inch ID x 36 Inch Deluxe Moveable Gas Connector Kit

Double Swivel MAX, SnapFast Quick-Disconnect, Full Port Valve, and Restraining Cable

Built for moveable commercial equipment, this deluxe gas connector kit combines high flow capacity, 360° swivel protection, and thermal shutoff safety.

  • 1-1/4 inch inside diameter and 36 inch length with 461,000 BTU/hr minimum flow capacity.
  • Double Swivel MAX fittings provide 360° rotational movement to reduce stress on the hose.
  • SnapFast one-handed quick-disconnect includes automatic thermal shutoff at 350°F.
  • Includes a full port brass valve and coiled restraining cable with hardware.
  • Stainless steel braid with blue antimicrobial PVC coating helps protect the connector.
  • Made for indoor commercial applications and backed by a limited lifetime warranty.

Product Weight:

12.9 lb

Double Swivel MAX Rotational End Fittings

360° rotational movement at both ends helps reduce connector stress and allows the appliance to sit closer to the wall.

SnapFast One-Handed Quick-Disconnect

Quick-disconnect fitting allows fast one-handed connection and shuts off gas automatically when internal temperature exceeds 350°F.

Stainless Steel Braid with Blue Antimicrobial PVC Coating

Annealed 304 stainless steel tubing with multi-strand stainless steel braid is protected by a blue antimicrobial PVC coating.

Full Port Brass Valve

Includes a full port, brass body valve as part of the deluxe kit assembly.

Restraining Device with Hardware

PVC-coated steel multi-strand restraining cable and mounting hardware help prevent strain on the gas connector.

High Flow Capacity

The 1-1/4 inch I.D. 36 inch configuration is rated for 461,000 BTU/hr minimum natural gas flow capacity.

Limited Lifetime Warranty

Warranty coverage is provided for the life of the original appliance to which the connector is attached.

USA Manufactured

Manufactured in the USA under an ISO-qualified production process.

Type Moveable Gas Connector Kit
Style Deluxe Kit
Inside Diameter 1-1/4 Inches
Length 36 Inches
Material Plastic Coated Stainless Steel
Color Blue
BTU 461,000 BTU/hr
Country Of Origin USA
Selling Unit Each
Units Per Case 1
Shipping Weight 12.9 lb.

Warranty & Protection

Limited lifetime warranty

Documents

PDF Cutsheet PDF Download PDF Restraining cable instructions PDF Download

Frequently Asked Questions

The deluxe kit includes the Dormont Blue Hose, Double Swivel MAX, SnapFast quick-disconnect, restraining device, and full port valve.
The 1-1/4 inch I.D. 36 inch configuration is rated at 461,000 BTU/hr minimum natural gas flow capacity.
SnapFast is a one-handed quick-disconnect that automatically shuts off gas when internal temperatures exceed 350°F.
Yes. The document states that a restraining device is required for all moveable gas equipment, and this kit includes one.
It carries a limited lifetime warranty and is guaranteed for the life of the original appliance to which it is connected.
No. The document states that it is for indoor use only and should not be used in temperatures below 32°F.
