Dormont Manufacturing

Dormont Blue Hose 60-Inch Moveable Gas Connector Hose Assembly with Restraining Cable, 1-1/4-Inch I.D., Swivel MAX and SnapFast Quick Disconnect

SKU: 16125BPQSR60
GTIN: 662447046814
$849.29
/each
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers Dormont Manufacturing Gas Hose General Restaurant Equipment Parts New Arrivals Parts & Accessories Restaurant Equipment Restaurant Equipment Parts

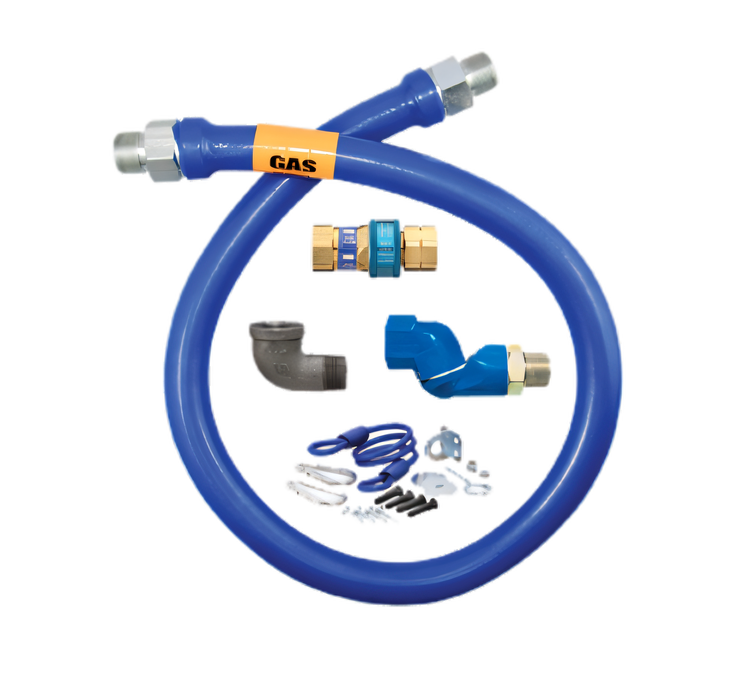

Dormont Blue Hose 60-Inch Moveable Gas Connector Hose Assembly with Restraining Cable, 1-1/4-Inch I.D., Swivel MAX and SnapFast Quick Disconnect

Basic kit configuration; stainless steel braid with blue antimicrobial PVC coating

Built for moveable commercial gas appliances, this 60-inch connector combines flexible 360° movement, quick-disconnect convenience, and a built-in restraining system for safer installation.

  • 60-inch moveable gas connector assembly with 1-1/4-inch I.D. for commercial kitchen equipment.
  • Swivel MAX 360° rotation helps reduce connector stress and lets appliances sit closer to the wall.
  • SnapFast one-handed quick disconnect includes thermal shut-off at 350°F (177°C).
  • Stainless steel tubing and braid are protected by a blue antimicrobial PVC coating.
  • Includes coiled restraining cable and mounting hardware for moveable gas equipment.
  • Rated for 463,000 BTU/hr minimum flow capacity.
  • Limited lifetime warranty for the original appliance connection.

Product Weight:

11.94 lb

Swivel MAX 360° Rotation

Multi-plane rotational end fittings help reduce stress on the connector and improve appliance placement flexibility.

SnapFast One-Handed Quick Disconnect

Brass-body quick-disconnect fitting allows fast appliance removal and automatically shuts off gas if internal temperatures exceed 350°F (177°C).

Stainless Steel Hose Construction

Annealed stainless steel tubing with multi-strand stainless steel wire braid provides durable gas connector performance.

Blue Antimicrobial PVC Coating

The blue outer coating helps protect the hose and will melt at 350°F (177°C) without holding a flame.

Included Restraining Device

Coiled PVC-coated steel restraining cable and mounting hardware help secure moveable equipment as required.

High Flow Capacity

Rated at 463,000 BTU/hr minimum flow capacity for natural gas applications at 0.5 inch W.C. pressure drop.

Indoor Use Only

Documentation specifies indoor use only and not for use in temperatures below 32°F (0°C).

Limited Lifetime Warranty

Covered by a limited lifetime warranty tied to the life of the original appliance to which it is connected.

Type Gas Connector Hose Assembly
Style Moveable
Material Stainless Steel
Color Blue
Finish Blue Antimicrobial PVC Coating
Inside Diameter 1-1/4 Inches
Length 60 Inches
BTU 463,000 BTU/hr
Shipping Weight 11.94 lb.
Country of Origin USA
Selling Unit Each
Units Per Case 1

Warranty & Protection

Limited lifetime warranty

Documents

PDF Cutsheet PDF Download PDF Restraining cable instructions PDF Download

Frequently Asked Questions

The documentation says the basic kit includes The Dormont Blue Hose, Swivel MAX, SnapFast, a restraining device, and a street elbow.
The 1-1/4-inch I.D., 60-inch model is rated at 463,000 BTU/hr minimum flow capacity on the natural gas flow rating table.
Yes. The SnapFast quick-disconnect shuts off gas when internal temperature exceeds 350°F (177°C).
Yes. The documentation states that a restraining device is required for all moveable gas equipment.
The line is offered in 1/2-inch, 3/4-inch, 1-inch, and 1-1/4-inch I.D. sizes, with 24-inch, 36-inch, 48-inch, 60-inch, and 72-inch lengths.
Yes. The documentation specifies indoor use only and not for use in temperatures less than 32°F (0°C).
