Dormont Manufacturing

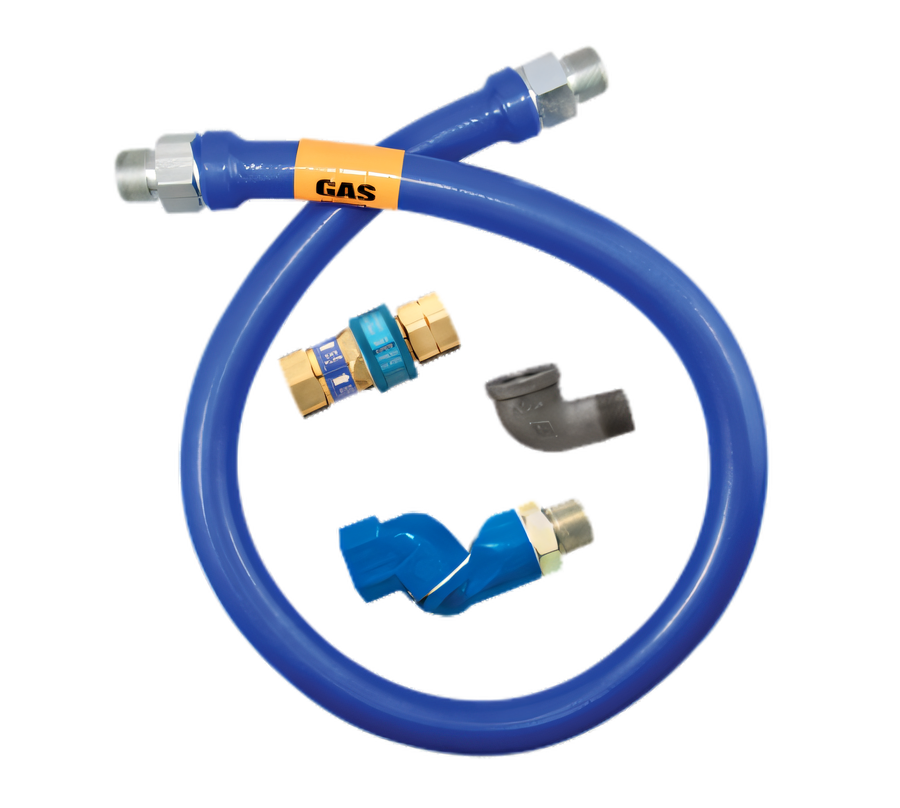

Dormont Blue Hose 1-1/4 Inch I.D. x 60 Inch Moveable Gas Connector Hose Assembly with Swivel MAX and SnapFast Quick-Disconnect

SKU: 16125BPQS60
GTIN: 662447046227
$852.89
/each
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers Dormont Manufacturing Gas Hose New Arrivals Restaurant Equipment Restaurant Equipment Parts

Dormont Blue Hose 1-1/4 Inch I.D. x 60 Inch Moveable Gas Connector Hose Assembly with Swivel MAX and SnapFast Quick-Disconnect

Blue antimicrobial PVC-coated stainless steel, 463,000 BTU/hr minimum flow capacity

Built for moveable commercial gas equipment, this connector combines 360° flexibility, one-handed quick disconnect, and thermal shut-off safety in one durable hose assembly.

  • 1-1/4 inch I.D. x 60 inch commercial moveable gas connector hose assembly
  • Swivel MAX fitting provides 360° rotational movement to reduce stress and improve wall clearance
  • SnapFast one-handed quick-disconnect includes automatic thermal shut-off at 350°F (177°C)
  • Annealed 304 stainless steel tubing with stainless steel braid and blue antimicrobial PVC coating
  • 463,000 BTU/hr minimum natural gas flow capacity at 0.5 inch WC pressure drop
  • Limited lifetime warranty and a restraining device is required for moveable gas equipment

Product Weight:

10.46 lb

360° Swivel MAX Movement

Multi-plane rotational end fittings reduce stress on the hose and allow the appliance to be positioned closer to the wall.

SnapFast One-Handed Quick Disconnect

Quick-disconnect fitting supports fast one-handed connection and automatically shuts off gas when internal temperature exceeds 350°F (177°C).

304 Stainless Steel Construction

Annealed 304 stainless steel tubing with multi-strand stainless steel wire braid helps deliver durability in commercial kitchens.

Blue Antimicrobial PVC Coating

Blue protective coating adds visibility and protection; it melts at 350°F (177°C) and will not hold a flame.

Designed for Moveable Equipment

Engineered for commercial gas appliances on casters, with a restraining device required for safe installation.

High Natural Gas Flow Capacity

Rated for 463,000 BTU/hr minimum flow capacity at a 0.5 inch WC pressure drop for the 1-1/4 inch by 60 inch configuration.

Limited Lifetime Warranty

Guaranteed for the life of the original appliance to which it is connected.

Type Moveable Gas Connector Hose Assembly
Style Swivel MAX / SnapFast Quick-Disconnect
Length 60 Inches
Inside Diameter 1-1/4 Inches
Material 304 Stainless Steel
Color Blue
Finish Blue Antimicrobial PVC Coating
BTU 463,000 BTU/hr
Maximum Operating Pressure 1/2 psi
Country of Origin USA
Shipping Weight 10.46 Pounds
Selling Unit Each
Units Per Case 1

Warranty & Protection

Limited lifetime warranty

Documents

PDF Cutsheet PDF Download

Frequently Asked Questions

It automatically shuts off gas when internal temperature exceeds 350°F (177°C).
Yes. The document states that a restraining device is required for all moveable gas equipment.
It has a 463,000 BTU/hr natural gas flow capacity at a 0.5 inch WC pressure drop.
The hose uses annealed 304 stainless steel tubing, stainless steel wire braid, and a blue antimicrobial PVC coating.
No. The document states it is for indoor use only and should not be used in temperatures below 32°F (0°C).
It includes a limited lifetime warranty and is guaranteed for the life of the original appliance to which it is connected.
