Dormont Manufacturing

Dormont Blue Hose 1-1/4 Inch I.D. x 48 Inch Moveable Gas Connector Hose Assembly with SnapFast Quick Disconnect and Swivel MAX

SKU: 16125BPQS48
GTIN: 662447046999
$770.84
/each
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers Dormont Manufacturing Gas Hose New Arrivals Restaurant Equipment Restaurant Equipment Parts

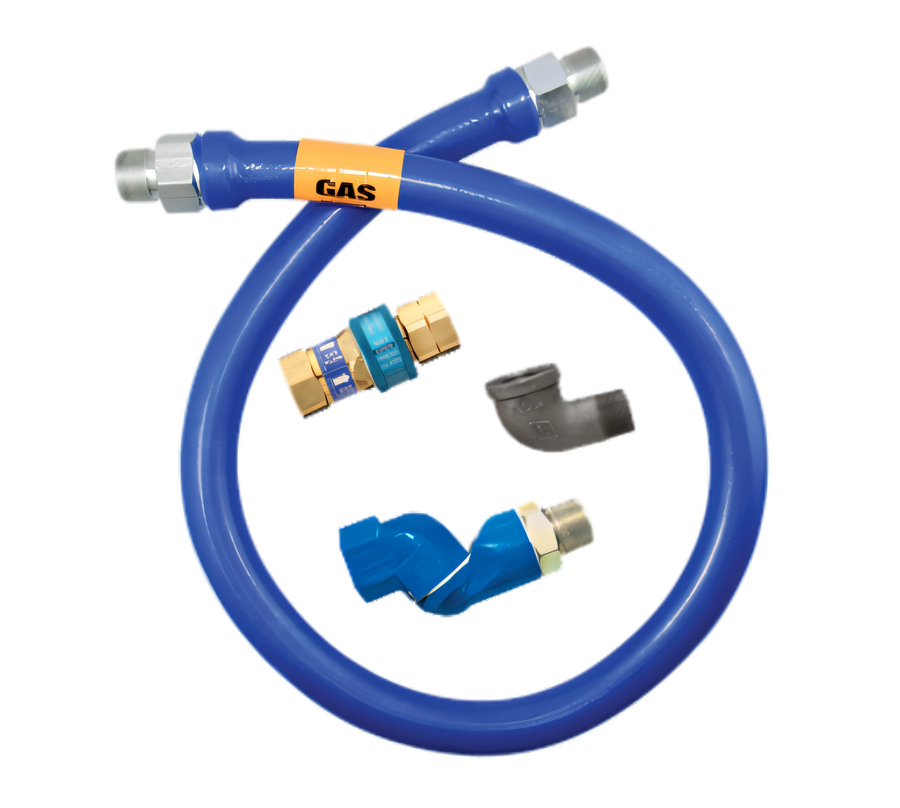

Dormont Blue Hose 1-1/4 Inch I.D. x 48 Inch Moveable Gas Connector Hose Assembly with SnapFast Quick Disconnect and Swivel MAX

Stainless Steel Braid, Blue Antimicrobial PVC Coating, 482,000 BTU/hr Flow Capacity

Built for moveable commercial gas equipment, this 48-inch Dormont Blue Hose assembly combines 360° swivel movement, SnapFast quick-disconnect safety, and high-flow performance in a durable stainless steel construction.

  • 48-inch moveable-grade gas connector hose assembly with 1-1/4 inch inside diameter.
  • Swivel MAX 360° rotation helps reduce stress on the connector and can allow closer wall placement.
  • SnapFast one-handed quick-disconnect includes thermal shut-off protection above 350°F.
  • Stainless steel tubing and braid are protected by a blue antimicrobial PVC coating.
  • Rated for 482,000 BTU/hr minimum natural gas flow capacity.
  • Backed by a limited lifetime warranty and manufactured in the USA.

Product Weight:

9.67 lb

Swivel MAX 360° Rotation

Multi-plane rotational fitting reduces stress on the hose and improves appliance placement flexibility.

SnapFast One-Handed Quick Disconnect

Quick-disconnect fitting is designed for easy, one-handed connection and includes thermal shut-off above 350°F.

304 Stainless Steel Hose Construction

Annealed stainless steel tubing with multi-strand stainless steel wire braid provides durability and flexibility.

Blue Antimicrobial PVC Coating

Protective blue coating helps resist flame holding and melts at 350°F.

Stress Guard Rotation Technology

360° rotational end fittings help reduce stress at both ends of the hose.

High Flow Capacity

Minimum flow capacity is rated at 482,000 BTU/hr for natural gas applications.

Moveable Equipment Design

Designed for commercial moveable gas appliances; a restraining device is required for moveable installations.

Type Moveable Gas Connector Hose Assembly
Style Single Swivel MAX/SnapFast
Inside Diameter 1-1/4 Inches
Length 48 Inches
Material Stainless Steel
Finish Blue Antimicrobial PVC
Color Blue
BTU 482,000 BTU/hr
Country of Origin USA
Selling Unit Each
Units Per Case 1

Warranty & Protection

Limited lifetime warranty.

Documents

PDF Cutsheet PDF Download

Frequently Asked Questions

It has a 1-1/4 inch inside diameter and is 48 inches long.
The hose assembly is rated at 482,000 BTU/hr minimum flow capacity for natural gas at a 0.5 inch WC pressure drop.
It includes a SnapFast one-handed quick-disconnect with thermal shut-off and a Swivel MAX fitting with 360° rotation.
The hose uses annealed 304 stainless steel tubing, stainless steel wire braid, and a blue antimicrobial PVC coating.
Yes. It is designed for commercial moveable gas appliances, and a restraining device is required for moveable installations.
