Dormont Manufacturing

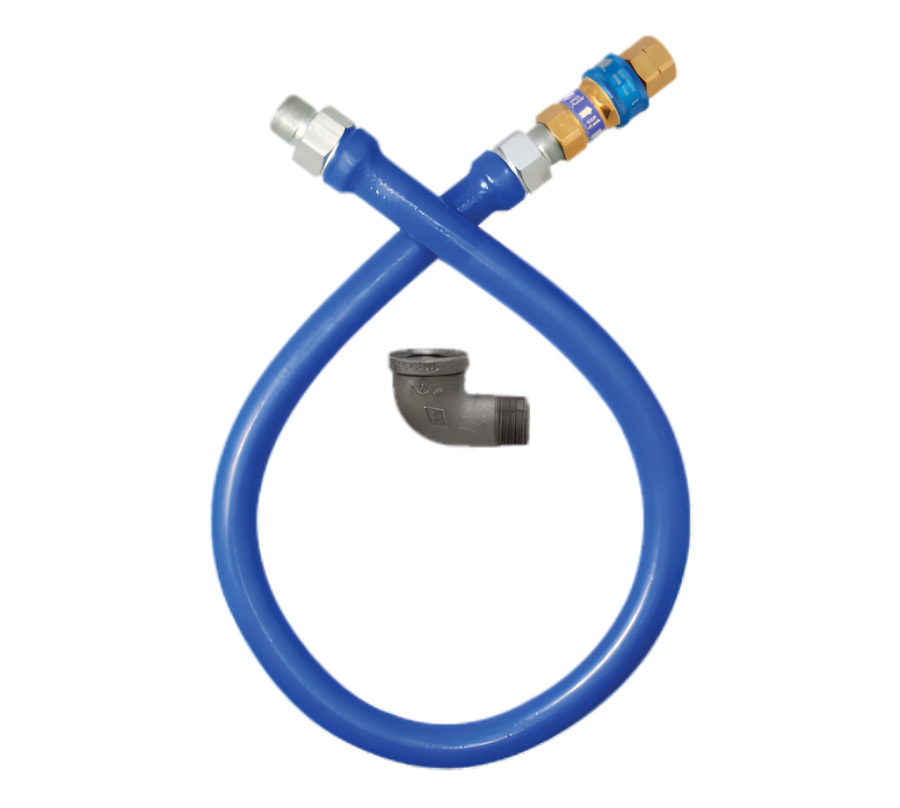

Dormont Blue Hose 1-1/4 Inch Inside Diameter x 72 Inch Moveable Gas Connector Hose Assembly with SnapFast Quick-Disconnect and Elbow

SKU: 16125BPQ72
GTIN: 662447001615
$655.45
/each
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers Dormont Manufacturing Gas Hose New Arrivals Restaurant Equipment Restaurant Equipment Parts

Dormont Blue Hose 1-1/4 Inch Inside Diameter x 72 Inch Moveable Gas Connector Hose Assembly with SnapFast Quick-Disconnect and Elbow

Blue antimicrobial PVC coating, 304 stainless steel construction, 419,000 BTU/hr flow capacity

Built for moveable commercial gas appliances, this 72-inch hose assembly pairs high-flow performance with SnapFast one-handed disconnect convenience and thermal shut-off safety.

  • 1-1/4 inch inside diameter and 72 inch length for moveable gas equipment hookups
  • SnapFast one-handed quick-disconnect makes appliance changes and service faster
  • Thermal shut-off automatically closes gas flow when internal temperature exceeds 350°F
  • 304 stainless steel tubing and stainless steel braid are protected by a blue antimicrobial PVC coating
  • 419,000 BTU/hr minimum flow capacity supports demanding gas appliance applications
  • Includes one SnapFast quick-disconnect and one elbow, with limited lifetime warranty

Product Weight:

10.85 lb

SnapFast One-Handed Quick-Disconnect

Allows quick, one-handed connection and disconnection for easier equipment servicing.

Thermal Shut-Off Safety

Automatically shuts off gas when internal temperatures exceed 350°F.

Stainless Steel Hose Construction

Features annealed 304 stainless steel tubing with multi-strand stainless steel wire braid for durability.

Blue Antimicrobial PVC Coating

Blue coating helps protect the hose and will not hold a flame when exposed to heat.

Stress Guard Rotation Technology

360° rotational end fittings at both ends help reduce stress on the hose during movement.

Included Components

Hose assembly includes the Dormont Blue Hose, one SnapFast quick-disconnect, and one elbow.

Type Moveable Gas Connector Hose Assembly
Style Moveable
Inside Diameter 1-1/4 Inches
Length 72 Inches
BTU 419,000 BTU/hr
Gas Type Natural Gas
Material 304 Stainless Steel
Finish Blue Antimicrobial PVC
Color Blue
Quick Disconnect Type SnapFast Quick-Disconnect
Thermal Shut-Off Temperature 350°F
Maximum Operating Pressure 1/2 psi
Country of Origin USA
Selling Unit Each
Units Per Case 1
Shipping Weight 10.85 lb.

Warranty & Protection

Limited lifetime warranty

Documents

PDF Cutsheet PDF Download

Frequently Asked Questions

It has a 1-1/4 inch inside diameter and is 72 inches long.
It provides one-handed quick disconnect convenience and includes thermal shut-off protection.
The thermal shut-off activates when internal temperature exceeds 350°F.
Yes. The documentation states that a restraining device is required for all moveable gas equipment.
No. The document states it is for indoor use only and not for temperatures less than 32°F.
The hose assembly has a minimum flow capacity of 419,000 BTU/hr.
