Dormont Manufacturing

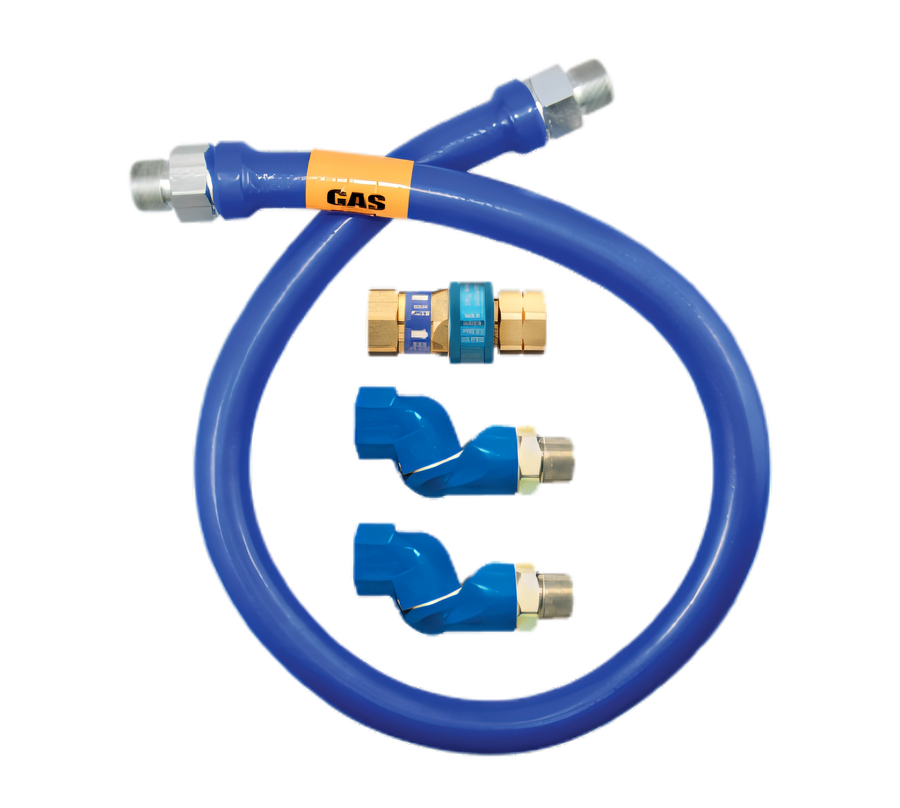

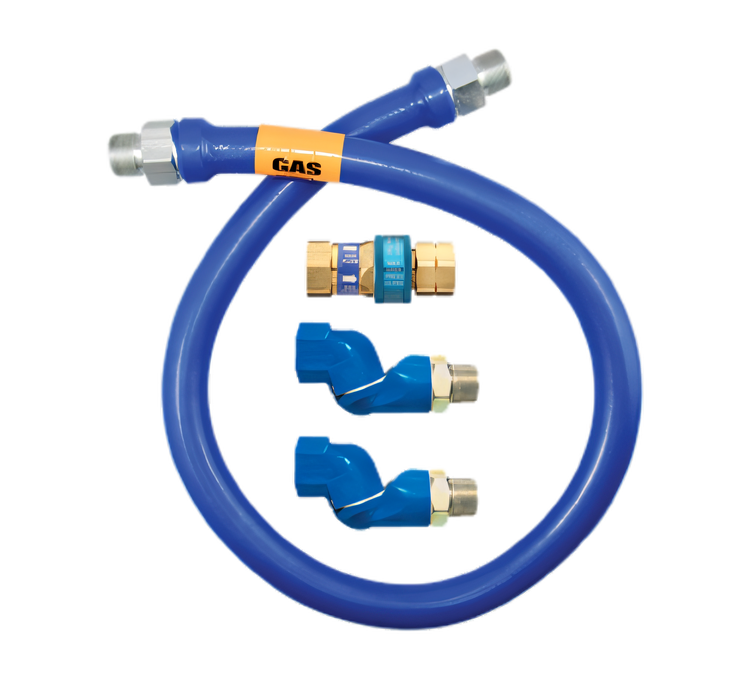

Dormont Blue Hose 1-1/4 Inch x 48 Inch Moveable Gas Connector Hose Assembly with Double Swivel MAX and SnapFast Quick-Disconnect

SKU: 16125BPQ2S48
GTIN: 662447027257
$983.62
/each
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers Dormont Manufacturing Gas Hose New Arrivals Restaurant Equipment Restaurant Equipment Parts

Dormont Blue Hose 1-1/4 Inch x 48 Inch Moveable Gas Connector Hose Assembly with Double Swivel MAX and SnapFast Quick-Disconnect

449,000 BTU/hr minimum flow capacity; stainless steel braid; blue antimicrobial PVC coating

Built for commercial moveable equipment, this 48-inch Blue Hose assembly combines high flow capacity with stress-reducing swivel fittings and a thermal shut-off quick disconnect.

  • 1-1/4" inside diameter and 48" length for commercial moveable gas applications.
  • 449,000 BTU/hr minimum flow capacity supports high-demand kitchen equipment.
  • Double Swivel MAX fittings provide 360° movement at both ends to reduce connector stress.
  • SnapFast one-handed quick-disconnect adds convenience and thermal shut-off protection at 350°F.
  • Annealed 304 stainless steel tubing with stainless braid and blue antimicrobial PVC coating.
  • Limited lifetime warranty for the life of the original appliance.

Product Weight:

11.52 lb

Double Swivel MAX Fittings

360° rotational end fittings at both ends reduce stress on the hose and help equipment sit closer to the wall.

SnapFast Quick-Disconnect

One-handed quick-disconnect fitting with a brass body and aluminum collar for easier appliance service.

Thermal Shut-Off Protection

Automatically shuts off gas when internal temperatures exceed 350°F (177°C).

Stainless Steel Hose Construction

Annealed 304 stainless steel tubing with multi-strand stainless steel wire braiding for durability.

Blue Antimicrobial PVC Coating

Protective blue PVC coating helps resist flame and melts at 350°F (177°C).

Designed for Moveable Equipment

Intended for commercial moveable gas appliances; caster-mounted equipment requires a restraining device.

High Flow Capacity

Rated for a minimum flow capacity of 449,000 BTU/hr.

Limited Lifetime Warranty

Guaranteed for the life of the original appliance to which it is connected.

Type Moveable Gas Connector Hose Assembly
Style Double Swivel MAX / SnapFast
Inside Diameter 1-1/4 Inches
Length 48 Inches
BTU 449,000 BTU/hr
Maximum Operating Pressure 1/2 PSI
Material Stainless Steel
Color Blue
Finish Blue Antimicrobial PVC Coating
Country of Origin USA
Selling Unit Each
Units Per Case 1
Shipping Weight 11.52 lb.

Warranty & Protection

Limited lifetime warranty

Documents

PDF Cutsheet PDF Download

Frequently Asked Questions

This hose assembly includes the Dormont Blue Hose, Double Swivel MAX fittings, and SnapFast quick-disconnect components.
Yes. The SnapFast quick-disconnect shuts off gas when internal temperatures exceed 350°F (177°C).
The 1-1/4" x 48" assembly has a minimum flow capacity of 449,000 BTU/hr.
Yes. It is designed for commercial moveable gas equipment, including equipment mounted on casters.
Yes. The document states that a restraining device is required for all moveable gas equipment.
It carries a limited lifetime warranty for the life of the original appliance to which it is connected.
