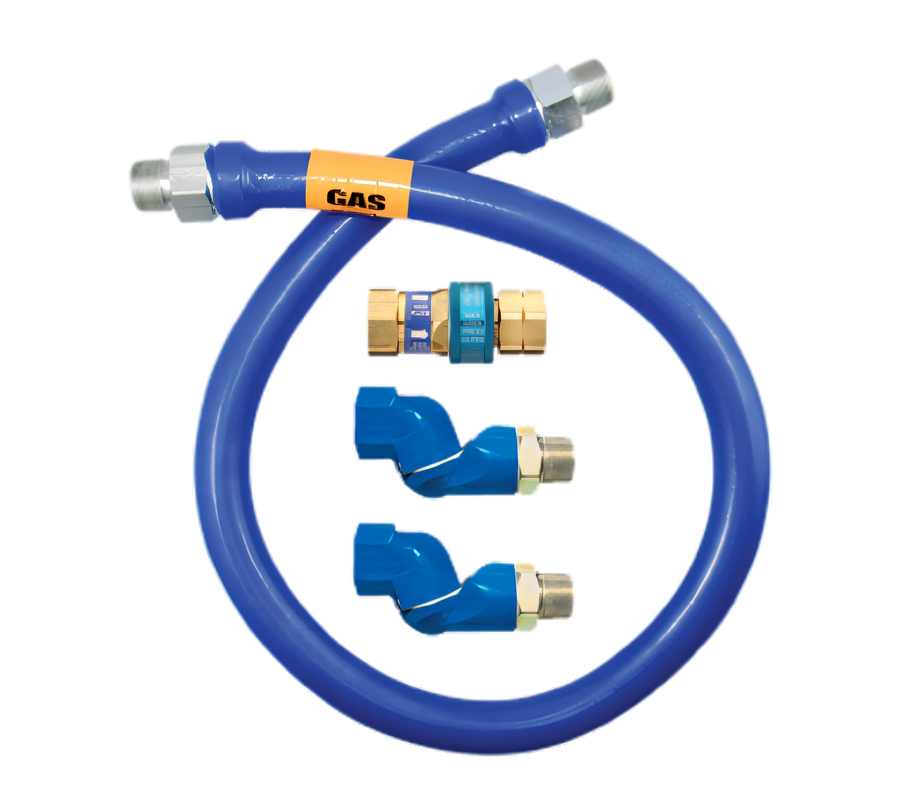

Dormont Blue Hose 1-1/4-Inch x 36-Inch Moveable Gas Connector Hose Assembly with SnapFast Quick-Disconnect and Dual Swivel MAX

Blue Antimicrobial PVC Coating, Stainless Steel Braid

Built for moveable commercial gas equipment, this high-flow connector combines one-handed safety disconnects with 360° swivel flexibility to help reduce stress and improve placement.

  • 1-1/4-inch inside diameter and 36-inch length for moveable gas appliance installations.
  • 461,000 BTU/hr minimum flow capacity at 0.5 inch W.C. pressure drop.
  • SnapFast one-handed quick-disconnect automatically shuts off gas when internal temperatures exceed 350°F (177°C).
  • Dual Swivel MAX fittings provide 360° rotational movement at both ends to reduce connector stress.
  • Annealed 304 stainless steel tubing with stainless steel wire braid and blue antimicrobial PVC coating.
  • Limited lifetime warranty for the life of the original appliance.

Product Weight:

10.44 lb

One-Handed SnapFast Quick-Disconnect

Allows fast connection and disconnection and automatically shuts off gas when internal temperature exceeds 350°F (177°C).

Dual Swivel MAX Rotation

360° rotational end fittings at both ends help position the appliance more easily and reduce stress on the hose.

304 Stainless Steel Construction

Annealed stainless steel tubing with multi-strand stainless steel wire braid is built for commercial use.

Blue Antimicrobial PVC Coating

Protective blue coating adds durability and is designed not to hold a flame when exposed to heat.

High Flow Capacity

The 1-1/4-inch I.D. hose is rated for 461,000 BTU/hr minimum flow capacity at a 0.5 inch W.C. pressure drop.

Moveable Equipment Safety Support

Designed for moveable gas equipment; a restraining device is required for all moveable gas applications.

Type Moveable Gas Connector Hose Assembly
Style Double Swivel MAX / SnapFast Quick-Disconnect
Material Stainless Steel
Finish Blue Antimicrobial PVC Coating
Inside Diameter 1-1/4 Inch
Length 36 Inches
BTU 461,000 BTU/hr
Country Of Origin USA
Shipping Weight 10.44 lb.
Selling Unit Each
Units Per Case 1

Warranty & Protection

Limited lifetime warranty

Documents

PDF Cutsheet PDF Download

Frequently Asked Questions

The assembly includes the Dormont Blue Hose, Dual Swivel MAX ends, and a SnapFast quick-disconnect fitting.
Yes. The SnapFast fitting automatically shuts off gas when internal temperature exceeds 350°F (177°C).
This 1-1/4-inch x 36-inch hose assembly has a minimum flow capacity of 461,000 BTU/hr.
Yes. The documentation states that a restraining device is required for all moveable gas equipment.
The product is manufactured in the USA.
