Dormont Blue Hose 1-Inch ID x 60-Inch Single Swivel MAX Moveable Gas Connector Kit

SKU: 16100KITS60PS
$641.92
/each
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers Dormont Manufacturing Gas Hose General Restaurant Equipment Parts New Arrivals Parts & Accessories Restaurant Equipment Restaurant Equipment Parts

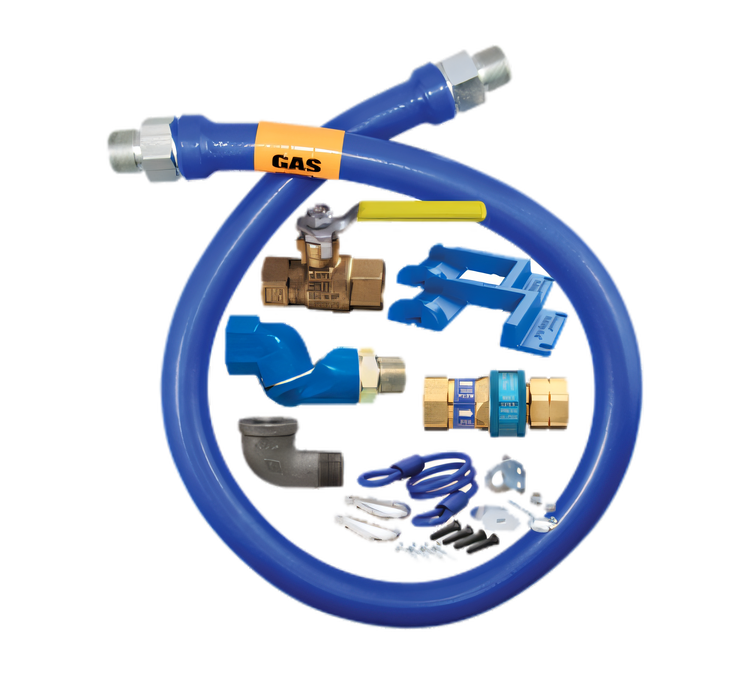

Dormont Blue Hose 1-Inch ID x 60-Inch Single Swivel MAX Moveable Gas Connector Kit

Stainless Steel Braid, Blue Antimicrobial PVC Coating, and Safety-Set Wheel Placement System

Built for caster-mounted commercial cooking equipment, this moveable gas connector kit combines durable stainless steel construction with safety-focused fittings that help reduce hose stress and simplify installation.

  • 1-inch inside diameter and 60-inch length for moveable commercial gas equipment.
  • Includes SnapFast quick-disconnect, Swivel MAX fitting, full-port gas valve, 90° street elbow, and Safety-Set wheel placement system.
  • Stainless steel tubing with tight-weave braid and blue antimicrobial PVC coating for durability and cleaner operation.
  • Stress Guard technology helps reduce stress on both hose ends during installation and movement.
  • Restraining cable helps prevent strain from being transmitted to the connector.
  • Limited lifetime warranty as connector to the original appliance.

Product Weight:

11.17 lb

Stress Guard Technology

Rotation technology reduces stress on both ends of the hose and makes installation easier.

304 Stainless Steel Tubing

Heavy-duty, flexible, corrugated stainless steel construction built for commercial gas connections.

Stainless Steel Braid

Tight-weave braid helps prevent corrugations from stretching as equipment is moved.

Blue Antimicrobial PVC Coating

Protective coating helps inhibit bacteria, mold, and mildew growth on the gas connector.

SnapFast Quick-Disconnect

One-handed quick-disconnect fitting with thermal shut-off when internal temperature exceeds 350°F (177°C).

Swivel MAX Fitting

Helps reduce stress on the connector and allows the hose to sit closer to the wall for more aisle space.

Full Port Gas Valve

Included full-port valve is part of the complete connector kit.

90° Street Elbow

Included elbow adds installation flexibility for gas equipment hookups.

Safety-Set Wheel Placement System

PS suffix adds the Safety-Set wheel placement system, which helps keep equipment in the design-specified location and installs with adhesive foam tape or thumbscrews.

Restraining Cable

Prevents transmission of strain to the connector and is provided shorter than the gas connector to support safe movement.

Type Moveable Gas Connector Kit
Style Single Swivel MAX
Length 60 Inches
Inside Diameter 1 Inch
Material 304 Stainless Steel
Finish Blue Antimicrobial PVC Coating
Color Blue
BTU 294,000 BTU/hr
Selling Unit Each
Units Per Case 1

Warranty & Protection

Limited lifetime warranty as connector

Documents

PDF Cutsheet PDF Download

Frequently Asked Questions

Add PS to the end of the part number to include the Safety-Set wheel placement system.
The kit includes the Blue Hose, SnapFast quick-disconnect, one Swivel MAX, full-port gas valve, one 90° street elbow, restraining cable, and Safety-Set hardware options.
It uses heavy-duty, flexible, corrugated 304 stainless steel tubing with a stainless steel braid and blue antimicrobial PVC coating.
Yes. It is specifically engineered for caster-mounted commercial cooking equipment that is moved regularly for service, positioning, or cleaning.
Yes. The SnapFast quick-disconnect includes thermal shut-off when internal temperature exceeds 350°F (177°C).
Dormont provides a limited lifetime warranty as connector to the original appliance.
