Dormont Manufacturing

Dormont Blue Hose 1" ID x 48" Single Swivel MAX Moveable Gas Connector Kit with SnapFast Quick-Disconnect

SKU: 16100KITS48
GTIN: 662447015445
$493.72
/each
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers Dormont Manufacturing Gas Hose General Restaurant Equipment Parts New Arrivals Parts & Accessories Restaurant Equipment Restaurant Equipment Parts

Dormont Blue Hose 1" ID x 48" Single Swivel MAX Moveable Gas Connector Kit with SnapFast Quick-Disconnect

Includes full port valve, elbow, and restraining cable; 310,000 BTU/hr minimum flow capacity

Built for caster-mounted commercial equipment, this Blue Hose kit combines a stainless steel braided connector, SnapFast quick-disconnect, Swivel MAX fitting, and restraining cable for safer, easier movement and service.

  • 1" inside diameter and 48" length for moveable commercial gas equipment connections.
  • Single Swivel MAX configuration helps reduce strain and improves positioning flexibility.
  • Includes SnapFast quick-disconnect, full port gas valve, 90° elbow, and coiled restraining cable with hardware.
  • 304 stainless steel tubing with stainless steel braid and blue antimicrobial PVC coating.
  • Stress Guard technology helps reduce stress on both hose ends during installation and movement.
  • 310,000 BTU/hr minimum flow capacity with limited lifetime warranty as connector.

Product Weight:

9.02 lb

Stress Guard Technology

Rotation technology reduces stress on both ends of the hose and helps make installation easier.

304 Stainless Steel Tubing

Heavy-duty, flexible corrugated stainless steel construction for commercial gas applications.

Stainless Steel Braid

Tight-weave braid helps prevent corrugations from stretching as equipment is moved.

Blue Antimicrobial PVC Coating

Protective coating helps inhibit the growth of bacteria, mold, and mildew on the connector.

SnapFast Quick-Disconnect

One-handed quick-disconnect fitting with thermal shut-off when internal temperature exceeds 350°F (177°C).

Swivel MAX Fitting

Helps reduce connector stress and allows equipment to be positioned closer to the wall for more aisle space.

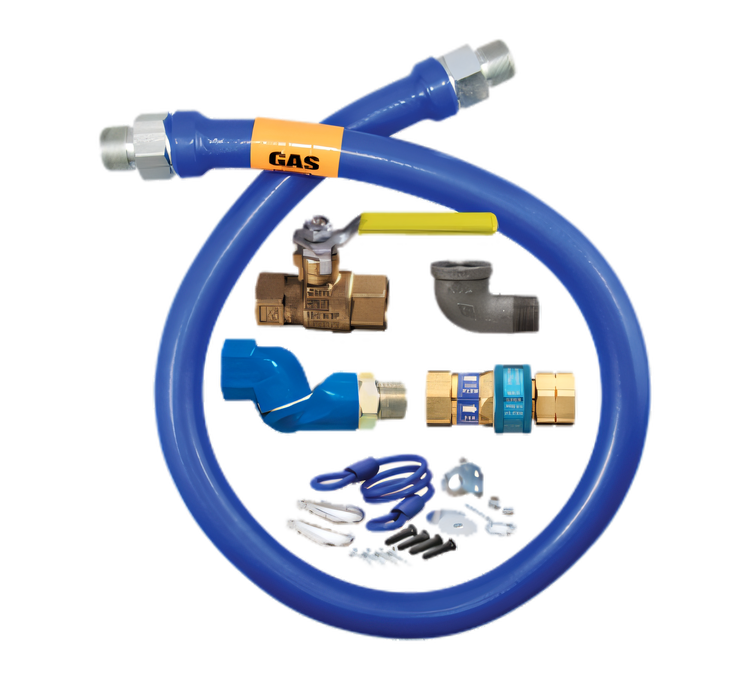

Complete Kit Components

Includes the Blue Hose, full port gas valve, one 90° street elbow, and coiled restraining cable with hardware.

Restraining Cable

Helps prevent strain from being transmitted to the connector and is provided 1' shorter than the gas connector.

High Flow Capacity

Rated for 310,000 BTU/hr minimum flow capacity at 0.5" w.c. pressure drop on natural gas.

Type Moveable Gas Connector Kit
Style Single Swivel MAX
Inside Diameter 1 Inch
Length 48 Inches
Material 304 Stainless Steel
Color Blue
Finish Blue Antimicrobial PVC Coating
BTU 310,000 BTU/hr
Selling Unit Each
Units Per Case 1

Warranty & Protection

Limited lifetime warranty as connector

Documents

PDF Cutsheet PDF Download PDF Restraining cable instructions PDF Download

Frequently Asked Questions

The kit includes the Blue Hose, SnapFast quick-disconnect, one Swivel MAX fitting, a full port gas valve, one 90° street elbow, and a coiled restraining cable with hardware.
This model has a 1" inside diameter and is 48" long.
It is rated for 310,000 BTU/hr minimum flow capacity.
Yes. The SnapFast quick-disconnect includes thermal shut-off when the internal temperature exceeds 350°F (177°C).
The restraining cable helps prevent strain from being transmitted to the connector and is supplied 1' shorter than the gas connector.
Yes. The documentation notes additional configurations are available in the catalog, including other lengths and kit styles.
