Dormont Manufacturing

Dormont Blue Hose 1 Inch I.D. x 24 Inch Moveable Gas Connector Deluxe Kit with Swivel MAX and SnapFast Quick-Disconnect

SKU: 16100KITS24
GTIN: 662447050019
$452.58
/each
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers Dormont Manufacturing Gas Hose General Restaurant Equipment Parts New Arrivals Parts & Accessories Restaurant Equipment Restaurant Equipment Parts

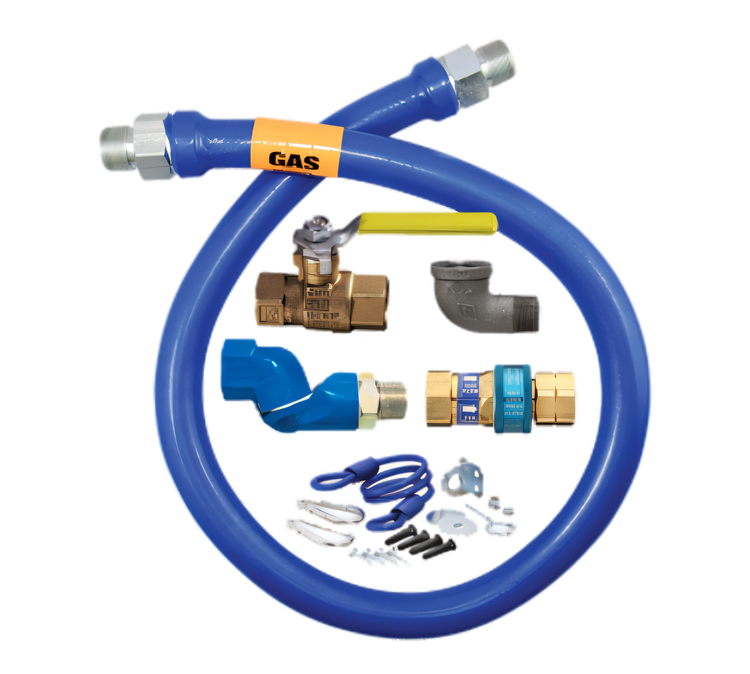

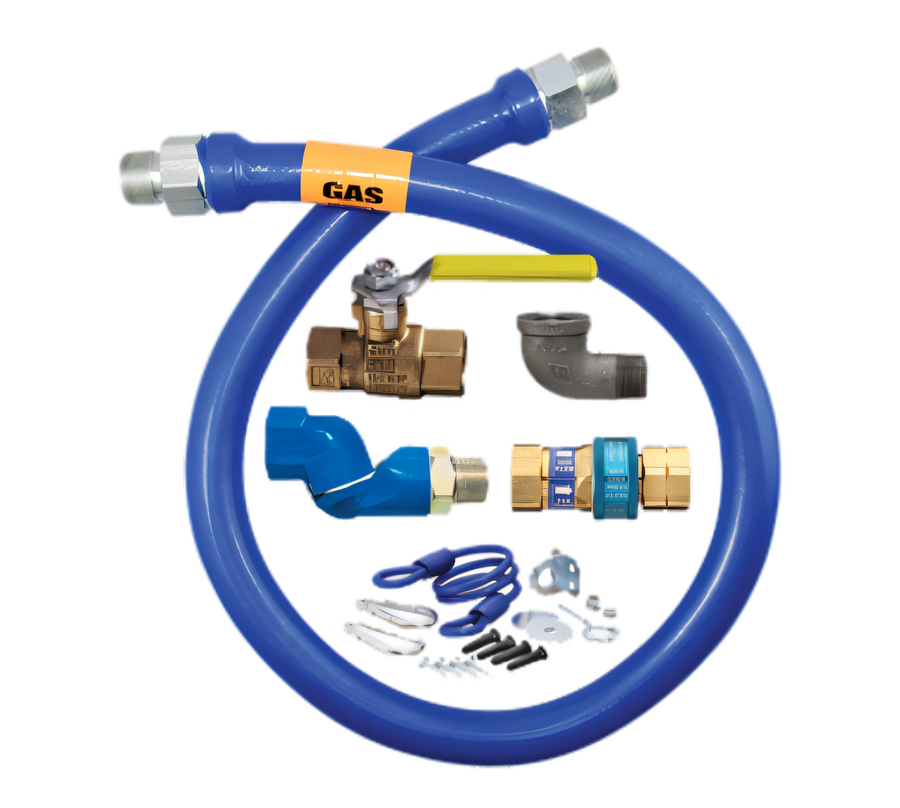

Dormont Blue Hose 1 Inch I.D. x 24 Inch Moveable Gas Connector Deluxe Kit with Swivel MAX and SnapFast Quick-Disconnect

Includes restraining device, full port valve, elbow, and blue antimicrobial PVC coating.

Built for moveable gas appliances, this 1-inch x 24-inch kit combines a swivel quick-disconnect and restraining device for safer, more flexible installation.

  • 1-inch inside diameter x 24-inch long deluxe moveable gas connector kit
  • Swivel MAX 360-degree rotation helps reduce connector stress and adds flexibility
  • SnapFast one-handed quick-disconnect includes automatic thermal shut-off at 350°F
  • Blue antimicrobial PVC coating covers stainless steel braid for added protection
  • Includes restraining cable, full port valve, elbow, and mounting hardware
  • 385,000 BTU/hr minimum flow capacity with a limited lifetime warranty

Product Weight:

7.31 lb

One-Handed Quick-Disconnect

SnapFast fitting allows quick, one-handed disconnect and automatically shuts off gas when internal temperature exceeds 350°F (177°C).

360-Degree Swivel Movement

Swivel MAX multi-plane fitting provides 360-degree rotation to reduce hose stress and help position the appliance closer to the wall.

Stainless Steel Hose Construction

Annealed stainless steel tubing with multi-strand stainless steel braid is built for durable commercial use.

Blue Antimicrobial PVC Coating

Protective blue coating resists flame and melts at 350°F (177°C).

Restraining Device Included

PVC-coated steel restraining cable with mounting hardware helps protect the connector on moveable equipment.

Complete Deluxe Kit

Kit includes a full port brass valve and one elbow along with the connector assembly.

High Flow Capacity

Rated for a minimum flow capacity of 385,000 BTU/hr at the 1-inch, 24-inch configuration.

Type Moveable Gas Connector Kit
Style Deluxe Kit
Inside Diameter 1 Inch
Length 24 Inches
Material Stainless Steel
Color Blue
Finish Antimicrobial PVC Coating
BTU 385,000 BTU/hr
Country of Origin USA
Selling Unit Each
Units Per Case 1

Warranty & Protection

Limited lifetime warranty.

Documents

PDF Cutsheet PDF Download PDF Restraining cable instructions PDF Download

Frequently Asked Questions

It has a 1-inch inside diameter and is 24 inches long.
It provides one-handed quick-disconnect operation and automatically shuts off gas when internal temperature exceeds 350°F (177°C).
Yes. It includes a PVC-coated steel restraining cable and mounting hardware.
The 1-inch, 24-inch configuration has a minimum flow capacity of 385,000 BTU/hr.
The kit includes the Blue Hose, Swivel MAX fitting, SnapFast quick-disconnect, restraining device, full port valve, elbow, and hardware.
The maximum operating pressure is 1/2 psi.
