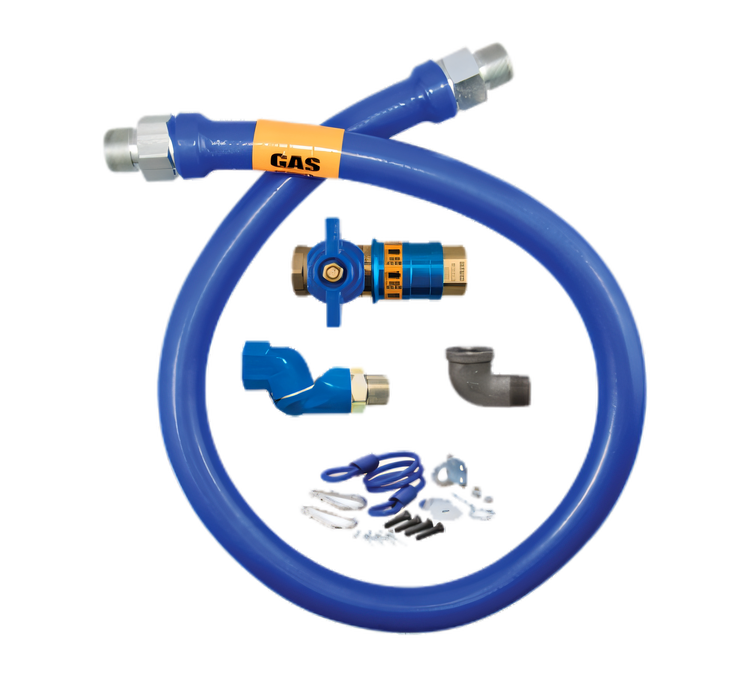

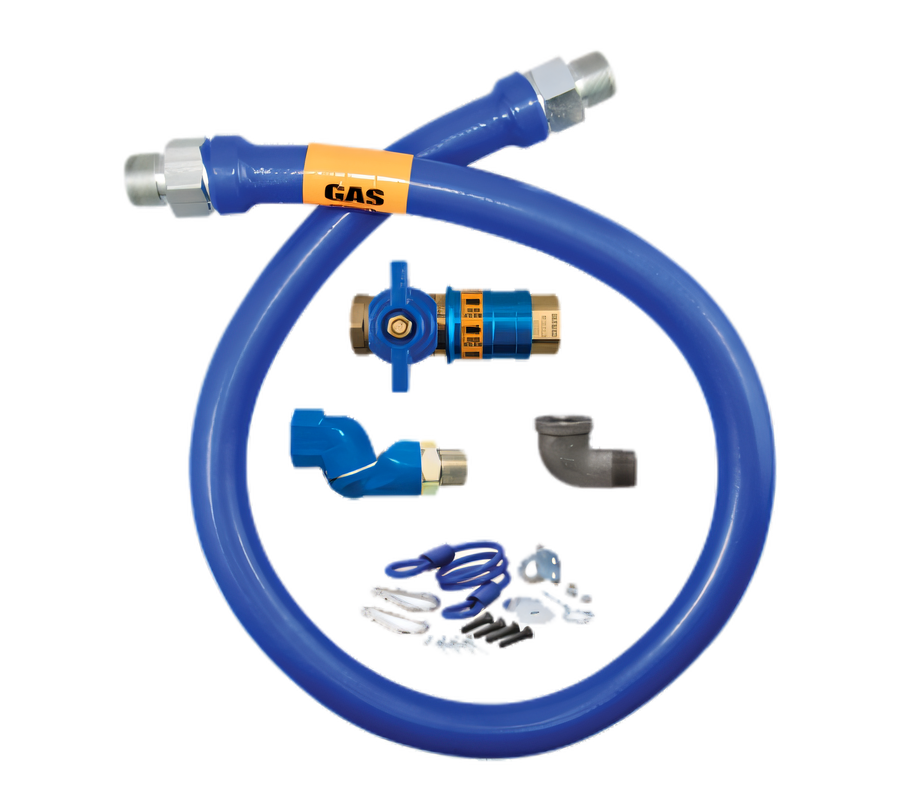

Dormont Blue Hose 1-Inch x 72-Inch Deluxe Moveable Gas Connector Kit with Swivel MAX and Safety Quik

1-Inch Inside Diameter, 72-Inch Length, Includes Restraining Cable

This 1-inch, 72-inch moveable gas connector kit combines flexible swivel movement, a safety quick-disconnect valve, and a restraining cable for safer commercial kitchen installations.

  • Designed for moveable commercial gas appliances that need safe, flexible connection.
  • Includes Swivel MAX for 360° rotational movement and reduced hose stress.
  • Safety Quik quick-disconnect valve adds one-handed disconnect convenience and shutoff protection.
  • Blue antimicrobial PVC coating covers the stainless steel braid for added durability.
  • Rated for 260,000 BTU/hr natural gas flow capacity.
  • Deluxe kit includes the restraining device and mounting hardware required for moveable equipment.

Product Weight:

9.89 lb

Swivel MAX 360° Rotation

Multi-plane fitting provides 360° rotational movement to help protect the connector and improve appliance positioning.

Safety Quik Quick-Disconnect Valve

Flat-face push-to-connect valve design includes a full-port brass ball valve and thermal shutoff protection.

Stainless Steel Hose Construction

Annealed stainless steel tubing with multi-strand stainless steel wire braiding supports commercial-duty use.

Blue Antimicrobial PVC Coating

Blue PVC coating adds visibility and antimicrobial protection while helping the coating resist flame.

Stress Guard Rotation Technology

Rotational end fittings at both ends help reduce stress on the hose and extend connector life.

Included Restraining Device

PVC-coated steel cable and mounting hardware are included for moveable gas equipment applications.

High Flow Capacity

Supports up to 260,000 BTU/hr natural gas flow capacity under the stated test conditions.

Type Moveable Gas Connector Kit
Style Deluxe Kit
Inside Diameter 1 Inch
Length 72 Inches
Material Stainless Steel
Color Blue
Finish Blue Antimicrobial PVC Coating
BTU 260,000 BTU/hr
Gas Type Natural Gas
Shipping Weight 9.89 lb.
Selling Unit Each
Units Per Case 1
Country of Origin USA

Warranty & Protection

Limited lifetime warranty

Documents

PDF Cutsheet PDF Download PDF Restraining cable instructions PDF Download

Frequently Asked Questions

This deluxe kit includes the Dormont Blue Hose, Swivel MAX, Safety Quik quick-disconnect valve, a restraining device with hardware, and a street elbow.
The hose has a 1-inch inside diameter and is 72 inches long.
This model is rated for 260,000 BTU/hr natural gas flow capacity.
Yes. A restraining device is required for moveable gas equipment, and it is included with this kit.
Safety Quik provides quick-disconnect functionality and a thermal shutoff that closes gas flow within the stated temperature range.
No. The documentation states that it is for indoor use only.
