Dormont Blue Hose 1-Inch ID x 48-Inch Safety Quik Single Swivel MAX Moveable Gas Connector Kit with Safety-Set

Blue antimicrobial PVC-coated, stainless steel braided connector with restraining device

A complete moveable gas connector solution for caster-mounted commercial cooking equipment, combining a flexible stainless steel hose, safety shutoff, swivel protection, and wheel placement support.

  • Designed for commercial cooking equipment that is moved regularly for service, positioning, or cleaning.
  • 1-inch inside diameter, 48-inch long connector with stainless steel braid and blue antimicrobial PVC coating.
  • Stress Guard technology helps reduce strain on hose ends and simplifies installation.
  • Safety Quik valve helps prevent accidental gas flow when disconnected and includes thermal shut-off protection.
  • Swivel MAX helps reduce connector stress and can help position equipment closer to the wall.
  • Includes restraining device and Safety-Set wheel placement system hardware for better equipment control.
  • Backed by a limited lifetime warranty as long as the original appliance remains connected.

Product Weight:

9.48 lb

Stress Guard Technology

Rotation technology reduces stress on both ends of the hose and makes installation easier.

304 Stainless Steel Tubing

Heavy-duty, flexible corrugated stainless steel construction built for moveable commercial equipment.

Stainless Steel Braid

Tight-weave braid helps prevent corrugations from stretching as equipment is moved.

Blue Antimicrobial PVC Coating

Protective coating helps inhibit the growth of bacteria, mold, and mildew on the connector.

Safety Quik Quick-Disconnect Valve

Helps prevent gas from being turned on while the appliance is disconnected and includes thermal shut-off protection above 350°F (177°C).

Swivel MAX

Reduces stress on the connector and can increase aisle space by allowing the hose to sit closer to the wall.

Restraining Cable

Helps prevent strain from being transmitted to the connector and is supplied shorter than the gas connector.

Safety-Set Wheel Placement System

Helps ensure cooking equipment stays in the design-specified location and allows fast installation with mounting hardware options.

Limited Lifetime Warranty

Covered for the life of the original appliance to which the connector is attached.

Type Moveable Gas Connector Kit
Style Single Swivel MAX
Length 48 Inches
Inside Diameter 1 Inch
Material 304 Stainless Steel
Finish Blue Antimicrobial PVC Coated
Restraining Device Included
BTU 310,000 BTU/hr
Selling Unit Each
Units Per Case 1
Shipping Weight 9.48 lb.

Warranty & Protection

Limited lifetime warranty as connector.

Documents

PDF Cutsheet PDF Download

Frequently Asked Questions

It is engineered for caster-mounted commercial cooking equipment that is moved regularly for service, positioning, or area cleanliness.

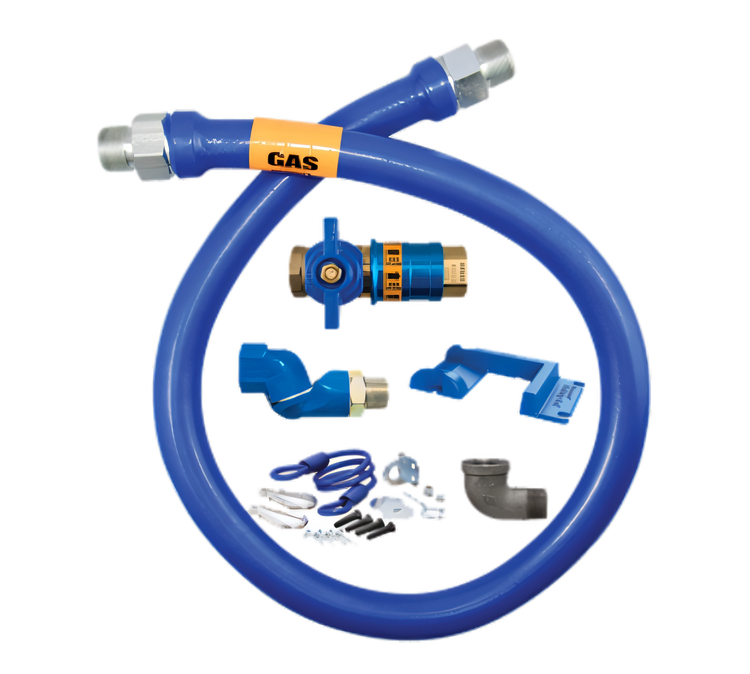

The kit includes a 1-inch ID, 48-inch Blue Hose connector with stainless steel braid and blue antimicrobial PVC coating, plus a Safety Quik quick-disconnect valve, one Swivel MAX, and Safety-Set wheel placement hardware.
It helps prevent the gas from being turned on while the appliance is disconnected and includes thermal shut-off protection when internal temperature exceeds 350°F (177°C).
PS indicates the Safety-Set wheel placement system is included.
Dormont offers a limited lifetime warranty as the connector, guaranteed for the life of the original appliance to which it is connected.
