Dormont Manufacturing

Dormont Blue Hose 1-Inch I.D. x 72-Inch Moveable Gas Connector Deluxe Kit with Safety Quik Quick-Disconnect Valve, Double Swivel MAX, and Restraining Device

SKU: 16100KITCF2S72PS
$864.62
/each
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers Dormont Manufacturing Gas Hose New Arrivals Restaurant Equipment Restaurant Equipment Parts

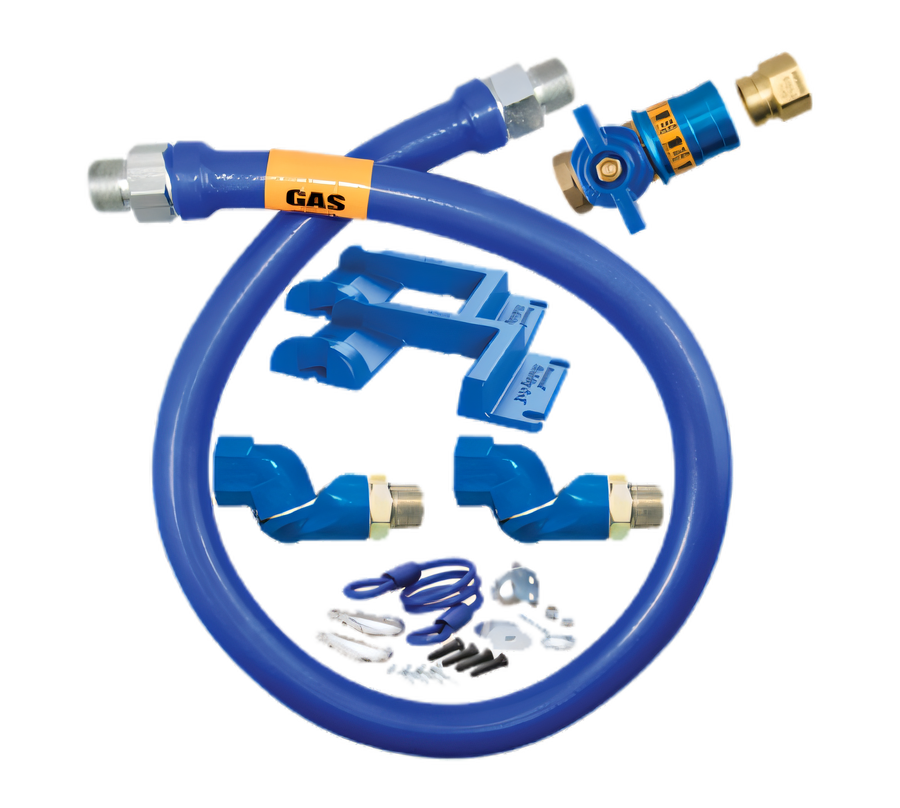

Dormont Blue Hose 1-Inch I.D. x 72-Inch Moveable Gas Connector Deluxe Kit with Safety Quik Quick-Disconnect Valve, Double Swivel MAX, and Restraining Device

Blue antimicrobial PVC-coated stainless steel hose for commercial moveable gas equipment

Designed for moveable commercial appliances, this kit combines flexible 360° movement, quick-disconnect safety, and a built-in restraining device in a single 72-inch assembly.

  • 72-inch commercial moveable gas connector kit with 1-inch inside diameter
  • Safety Quik quick-disconnect valve helps prevent accidental gas flow when disconnected
  • Double Swivel MAX fittings provide 360° rotation and reduce connector stress
  • Stainless steel braid with blue antimicrobial PVC coating adds durability and protection
  • Includes restraining device and mounting hardware for moveable equipment
  • Limited lifetime warranty and USA manufacturing

Product Weight:

11.84 lb

304 Stainless Steel Tubing

Annealed 304 stainless steel tubing provides a durable, flexible base for the connector.

Stainless Steel Wire Braid

Multi-strand stainless steel wire braid adds strength and abrasion resistance.

Blue Antimicrobial PVC Coating

Blue PVC coating helps protect the hose, will not hold a flame, and melts at 350°F.

Safety Quik Quick-Disconnect Valve

Flat-face, push-to-connect brass valve supports one-handed disconnect and thermal shutoff at 250°F to 300°F.

Double Swivel MAX End Fittings

360° rotational fittings at both ends help reduce stress on the connector and allow equipment to be positioned closer to the wall.

Restraining Device Included

PVC-coated, multi-strand steel cable and mounting hardware are included for moveable equipment installations.

Commercial Moveable-Grade Design

Designed for moveable gas appliances; indoor use only, with a maximum operating pressure of 1/2 psi.

Type Moveable Gas Connector Kit
Style Deluxe Kit
Length 72 Inches
Inside Diameter 1 Inch
BTU 247,000 BTU/hr
Material 304 Stainless Steel
Color Blue
Finish Blue Antimicrobial PVC
Country of Origin USA
Selling Unit Each
Units Per Case 1
Shipping Weight 11.84 Pounds

Warranty & Protection

Limited lifetime warranty

Documents

PDF Cutsheet PDF Download

Frequently Asked Questions

The deluxe kit includes the Dormont Blue Hose, Double Swivel MAX, Safety Quik quick-disconnect valve, and a restraining device.
It provides one-handed quick disconnect functionality and includes a thermal shutoff that closes the gas flow within 250°F to 300°F.
The document lists a natural gas flow capacity of 247,000 BTU/hr for the 1-inch I.D., 72-inch configuration.
Yes, it is designed for moveable commercial gas appliances, including caster-mounted equipment.
The ordering information shows 1/2-inch, 3/4-inch, and 1-inch sizes, with lengths of 24, 36, 48, 60, and 72 inches.
It is backed by a limited lifetime warranty, with coverage for the life of the original appliance to which it is connected.
