Dormont Manufacturing

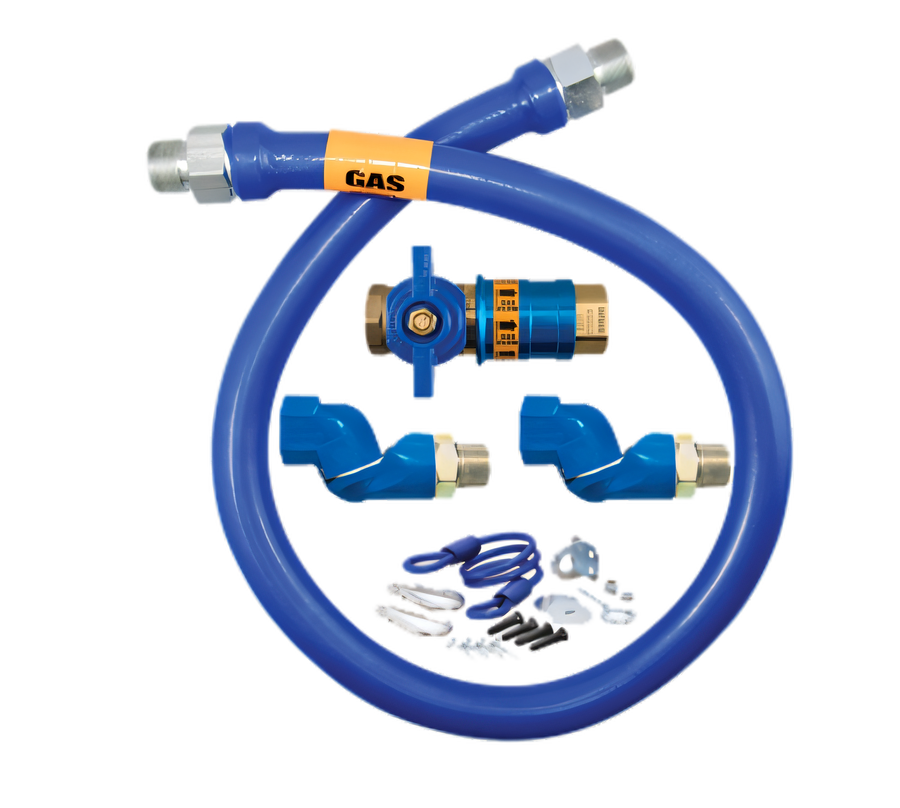

Dormont Blue Hose 1 Inch I.D. x 60 Inch Moveable Gas Connector Deluxe Kit with Safety Quik Valve and Restraining Device

SKU: 16100KITCF2S60
GTIN: 662447054277
$753.71
/each
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers Dormont Manufacturing Gas Hose New Arrivals Restaurant Equipment Restaurant Equipment Parts

Dormont Blue Hose 1 Inch I.D. x 60 Inch Moveable Gas Connector Deluxe Kit with Safety Quik Valve and Restraining Device

Blue Antimicrobial PVC-Coated Stainless Steel Hose, 261,000 BTU/hr

Designed for moveable commercial equipment, this deluxe gas connector kit combines flexible 360° swivel movement, a Safety Quik shutoff valve, and a restraining device for safer installation.

  • 1 inch inside diameter x 60 inch long moveable gas connector deluxe kit.
  • Includes Double Swivel MAX fittings, Safety Quik quick-disconnect valve, and restraining device with hardware.
  • Annealed stainless steel tubing and stainless steel braid for commercial durability.
  • Blue antimicrobial PVC coating helps protect the hose and will not hold a flame.
  • 360° rotational fittings help reduce connector stress and allow equipment to sit closer to the wall.
  • 261,000 BTU/hr minimum flow capacity for the 1 inch x 60 inch configuration.
  • Limited lifetime warranty for the original appliance connection.

Product Weight:

9.65 lb

Double Swivel MAX Fittings

360° rotational end fittings at both ends help reduce connector stress and allow appliances to be positioned closer to the wall.

Safety Quik Quick-Disconnect Valve

Flat-face, push-to-connect valve with a brass body and full-port brass ball valve; thermal shutoff closes gas flow within 250°F to 300°F.

304 Stainless Steel Hose Construction

Annealed 304 stainless steel tubing with multi-strand stainless steel wire braid for commercial durability.

Blue Antimicrobial PVC Coating

Blue antimicrobial PVC coating helps protect the hose; it melts at 350°F and will not hold a flame.

Restraining Device Included

PVC-coated steel multi-strand restraining cable and mounting hardware are included for moveable gas equipment.

261,000 BTU/hr Flow Capacity

The 1 inch I.D. by 60 inch configuration is rated for 261,000 BTU/hr natural gas flow capacity.

Limited Lifetime Warranty

Guaranteed for the life of the original appliance to which it is connected.

Made in USA

Manufactured in the USA under an ISO qualified production process.

Type Moveable Gas Connector Kit
Style Deluxe Kit
Length 60 Inches
Inside Diameter 1 Inch
Material Stainless Steel
Finish Blue Antimicrobial PVC Coating
BTU 261,000 BTU/hr
Country of Origin USA
Shipping Weight 9.65 lb.
Selling Unit Each
Units Per Case 1

Warranty & Protection

Limited lifetime warranty

Documents

PDF Cutsheet PDF Download PDF Restraining cable instructions PDF Download

Frequently Asked Questions

The kit includes the Dormont Blue Hose, Double Swivel MAX fittings, Safety Quik quick-disconnect valve, restraining device, and mounting hardware.
It is 60 inches long with a 1 inch inside diameter.
The 1 inch by 60 inch configuration is rated at 261,000 BTU/hr natural gas flow capacity.
Yes. The deluxe kit includes a PVC-coated steel restraining cable with mounting hardware, and the documentation notes that a restraining device is required for moveable gas equipment.
This product carries a limited lifetime warranty for the life of the original appliance to which it is connected.
