Dormont Blue Hose 1-Inch ID x 48-Inch Double Swivel MAX Moveable Gas Connector Kit

Blue antimicrobial PVC-coated 304 stainless steel with SnapFast QD, full port valve, and restraining cable

Built for caster-mounted commercial cooking equipment, this 48-inch double Swivel MAX kit combines a quick disconnect, full port valve, and restraining cable for safer, easier gas hookups.

  • Designed for caster-mounted commercial cooking equipment that is moved regularly for service or cleaning.
  • 1-inch inside diameter and 48-inch length with 295,000 BTU/hr minimum flow capacity.
  • Double Swivel MAX configuration helps reduce connector stress and improve equipment positioning.
  • Includes SnapFast quick-disconnect, full port gas valve, and coiled restraining cable with hardware.
  • Blue antimicrobial PVC coating and stainless steel braid help protect the connector as equipment moves.
  • Stress Guard technology helps make installation easier and reduces stress on hose ends.

Product Weight:

9.66 lb

Stress Guard Technology

Rotation technology reduces stress on both ends of the hose and makes installation easier.

304 Stainless Steel Tubing

Heavy-duty, flexible, corrugated stainless steel tubing provides durable gas connection performance.

Stainless Steel Braid

Tight-weave braid helps prevent corrugations from stretching as equipment is moved.

Blue Antimicrobial PVC Coating

Protective blue coating helps inhibit bacteria, mold, and mildew growth on the connector.

SnapFast Quick-Disconnect

One-handed quick-disconnect fitting with thermal shut-off above 350°F (177°C).

Double Swivel MAX Layout

Two Swivel MAX fittings help reduce connector stress and allow closer wall positioning.

Full Port Gas Valve

Included full port valve supports a full-flow gas connection.

Coiled Restraining Cable

Helps prevent strain from being transmitted to the connector and is supplied 1 foot shorter than the gas connector.

Type Moveable Gas Connector Kit
Style Double Swivel MAX
Material 304 Stainless Steel
Finish Blue Antimicrobial PVC Coating
Inside Diameter 1 Inch
Length 48 Inches
BTU 295,000 BTU/hr
Shipping Weight 9.66 lb.
Selling Unit Each
Units Per Case 1

Warranty & Protection

Limited lifetime warranty as connector

Documents

PDF Cutsheet PDF Download PDF Restraining cable instructions PDF Download

Frequently Asked Questions

It is designed for caster-mounted commercial cooking equipment that is moved regularly for service, positioning, or cleaning.

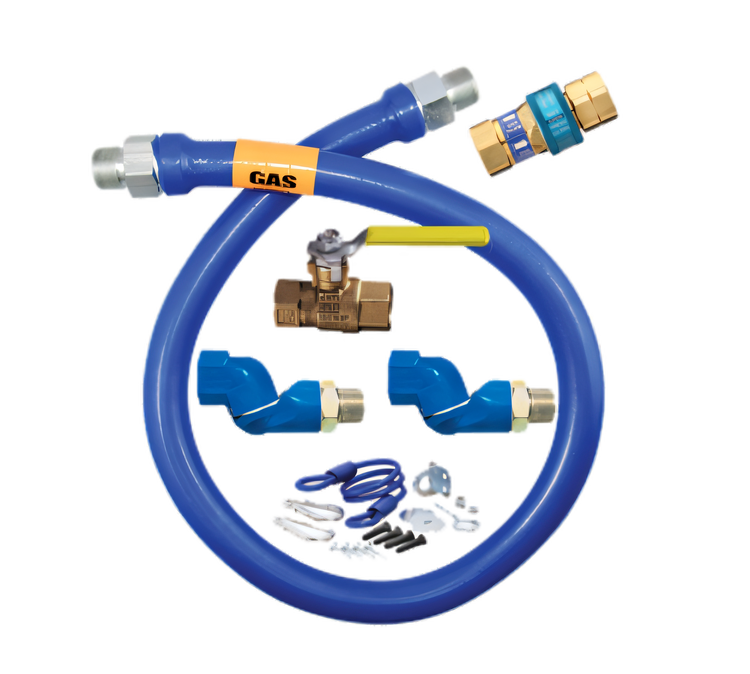

The kit includes a Blue Hose moveable gas connector, SnapFast quick-disconnect, two Swivel MAX swivels, a full port gas valve, and a coiled restraining cable with hardware.
The hose is 1 inch inside diameter and 48 inches long, with a 295,000 BTU/hr minimum flow capacity.
The restraining cable helps prevent strain from reaching the connector and is supplied 1 foot shorter than the gas connector.
It carries a limited lifetime warranty as a connector for the life of the original appliance to which it is connected.
