Dormont Blue Hose 1 Inch ID x 24 Inch Moveable Gas Connector Deluxe Kit with Double Swivel MAX, SnapFast Quick-Disconnect, Valve, and Restraining Device

Blue antimicrobial PVC-coated stainless steel braid; 366,000 BTU/hr natural gas flow capacity

Built for moveable commercial gas equipment, this 24-inch Dormont Blue Hose kit combines a 1-inch stainless steel connector, one-handed SnapFast disconnect, and restraining device for dependable, high-capacity performance.

  • 1-inch inside diameter and 24-inch length for moveable gas appliance connections.
  • Includes Double Swivel MAX fittings, SnapFast quick-disconnect, full port valve, and restraining cable with hardware.
  • 304 stainless steel tubing with stainless steel braid and blue antimicrobial PVC coating.
  • 360° rotation helps reduce connector stress and lets appliances sit closer to the wall.
  • Rated for 366,000 BTU/hr natural gas flow capacity.
  • Limited lifetime warranty for the original appliance connection.

Product Weight:

7.95 lb

304 Stainless Steel Tubing

Annealed 304 stainless steel tubing is built for commercial gas connection applications.

Stainless Steel Braid

Multi-strand stainless steel wire braid adds flexibility and durability.

Blue Antimicrobial PVC Coating

Protective blue coating helps resist microbial growth and will not hold a flame; it melts at 350°F.

Double Swivel MAX Rotation

360° rotational end fittings at both ends help reduce stress on the hose and improve appliance placement.

SnapFast One-Handed Quick-Disconnect

One-handed quick-disconnect fitting features a brass body, aluminum collar, and thermal shut-off above 350°F.

Included Restraining Device and Valve

Deluxe kit includes a PVC-coated steel restraining cable with mounting hardware and a full port brass valve.

Built for Moveable Equipment

Designed for moveable, caster-mounted gas appliances where a restraining device is required.

Limited Lifetime Warranty

Covered for the life of the original appliance to which it is connected.

Type Moveable Gas Connector Kit
Style Double Swivel MAX / SnapFast Quick-Disconnect Deluxe Kit
Inside Diameter 1 Inch
Length 24 Inches
Material Stainless Steel
Finish Blue Antimicrobial PVC Coating
Color Blue
BTU 366,000 BTU/hr
Gas Type Natural Gas
Country of Origin USA
Selling Unit Each
Units Per Case 1

Warranty & Protection

Limited lifetime warranty

Documents

PDF Cutsheet PDF Download PDF Restraining cable instructions PDF Download

Frequently Asked Questions

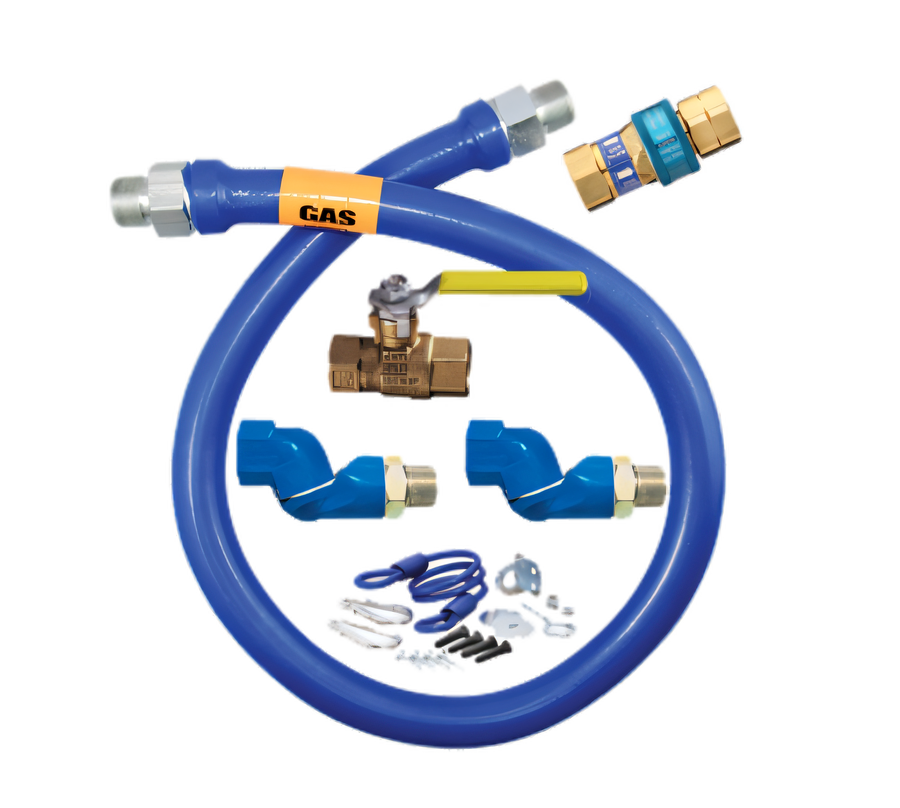

The kit includes the Blue Hose, Double Swivel MAX, SnapFast quick-disconnect, restraining device, full port valve, and mounting hardware.
This model has a 1-inch inside diameter and is 24 inches long.
The 1-inch, 24-inch configuration is rated at 366,000 BTU/hr for natural gas flow capacity.
Yes. The deluxe kit includes a coiled restraining cable with hardware, and a restraining device is required for moveable gas equipment.
SnapFast is a one-handed quick-disconnect fitting with thermal shut-off that closes when internal temperatures exceed 350°F.
Dormont offers a limited lifetime warranty for the life of the original appliance to which the connector is attached.
