Dormont Blue Hose Food Truck Grade Gas Connector Kit, 1 Inch ID x 60 Inch, with 90 Degree Elbows and Full Port Valve

304 Stainless Steel, Blue Antimicrobial PVC Coating

Built for food trucks and other moveable equipment, this 60-inch connector delivers high-flow gas performance, stainless-steel durability, and the fittings needed for a complete installation.

  • 60-inch, 1-inch ID Blue Hose food truck gas connector kit
  • 304 stainless steel corrugated tube with multi-strand stainless braid for commercial durability
  • Blue antimicrobial UV PVC coating helps resist flame and melts at 350°F

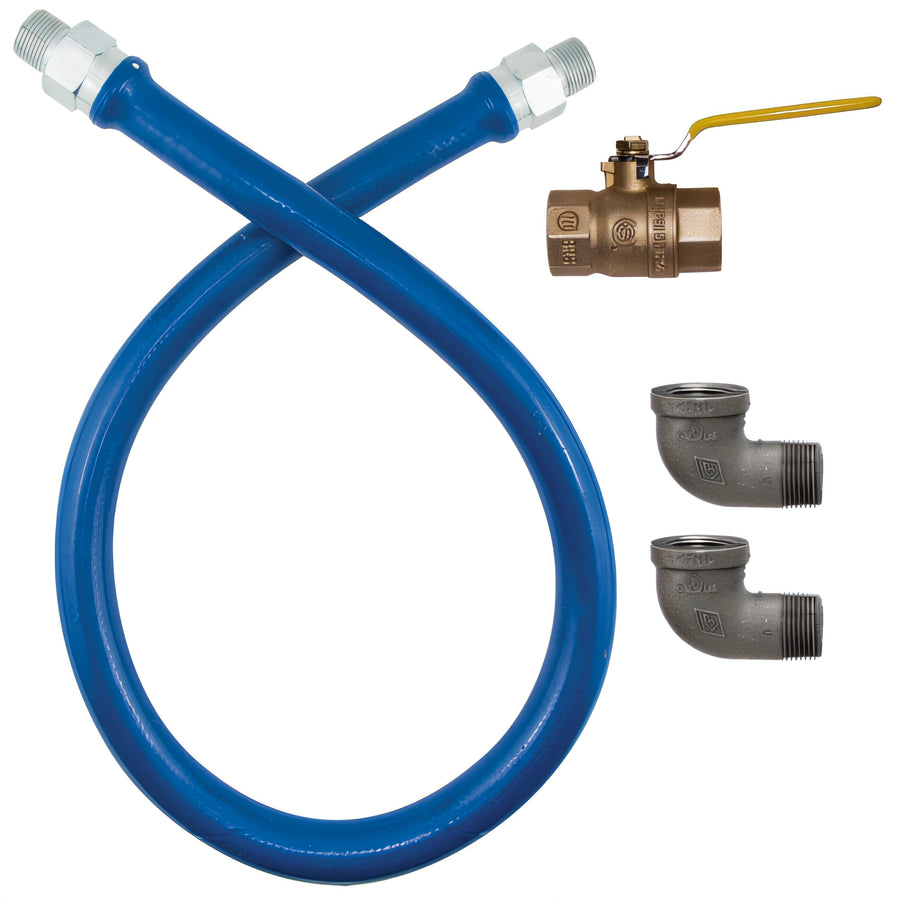

  • Includes (2) 1-inch 90 degree elbows and a full port valve for a complete hookup
  • Stress Guard rotational end fittings reduce hose strain at both ends
  • Rated for 397,000 BTU/hr natural gas flow at a 0.5 inch W.C. pressure drop
  • Designed for moveable and caster-mounted equipment; fulfills IFC 2018 and IFC 2021 requirements

Overall Dimensions:

10.38"W x 2.88"D x 26.63"H

Product Weight:

8.01 lb

Moveable-Grade Design

Designed for moveable equipment and caster-mounted appliances that are regularly repositioned for cleaning and repair.

304 Stainless Steel Corrugated Tube

Annealed 304 stainless steel tubing provides commercial-duty strength and corrosion resistance.

Multi-Strand Stainless Steel Braid

Stainless steel braiding adds flexibility and helps protect the hose during use.

Blue Antimicrobial UV PVC Coating

Blue PVC coating helps protect the hose, will not hold a flame, and melts at 350°F.

Stress Guard Rotational End Fittings

360-degree rotational fittings at both ends help reduce stress and strain on the connector.

Full Port Valve and Elbows Included

Kit includes a full port valve and (2) 1-inch 90 degree elbows for installation convenience.

High Flow Capacity

Rated for 397,000 BTU/hr natural gas flow capacity at a 0.5 inch W.C. pressure drop.

Food Truck Code Compliance

Fulfills IFC 2018 and IFC 2021 requirements for food truck gas appliance connections.

Type Gas Connector Kit
Style Food Truck Grade
Length 60 Inches
Inside Diameter 1 Inch
Material 304 Stainless Steel
Color Blue
Finish PVC Coated
BTU 397,000 BTU/hr
Shipping Width 11 Inches
Shipping Depth 3 Inches
Shipping Height 27 Inches
Shipping Weight 8.01 Pounds
Selling Unit Each
Units Per Case 1

Warranty & Protection

Limited lifetime warranty.

Documents

PDF Cutsheet PDF Download

Frequently Asked Questions

It includes a 60-inch, 1-inch ID connector, (2) 1-inch 90 degree elbows, and a full port valve.
The connector is rated for 397,000 BTU/hr natural gas flow at a 0.5 inch W.C. pressure drop.
Yes. It is a food truck grade connector and fulfills IFC 2018 and IFC 2021 requirements for food truck gas appliance connections.
The Blue Hose coating has an operating temperature range of -10°F to 350°F (-23°C to 177°C).
Yes. The documentation states that connectors used on caster-mounted equipment should be installed with a restraining device to prevent strain from being transmitted to the connector.
It includes a limited lifetime warranty, and Dormont guarantees its commercial gas connectors for the life of the original appliance to which it is connected.
