Dormont Manufacturing

Dormont Blue Hose Food Truck Grade Gas Connector Kit, 1 Inch I.D. x 48 Inch, Stainless Steel, Blue PVC-Coated

SKU: 16100BPV48BXFT
GTIN: 662447002506
$305.77
/each
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers Dormont Manufacturing Gas Hose General Restaurant Equipment Parts New Arrivals Parts & Accessories Restaurant Equipment Restaurant Equipment Parts

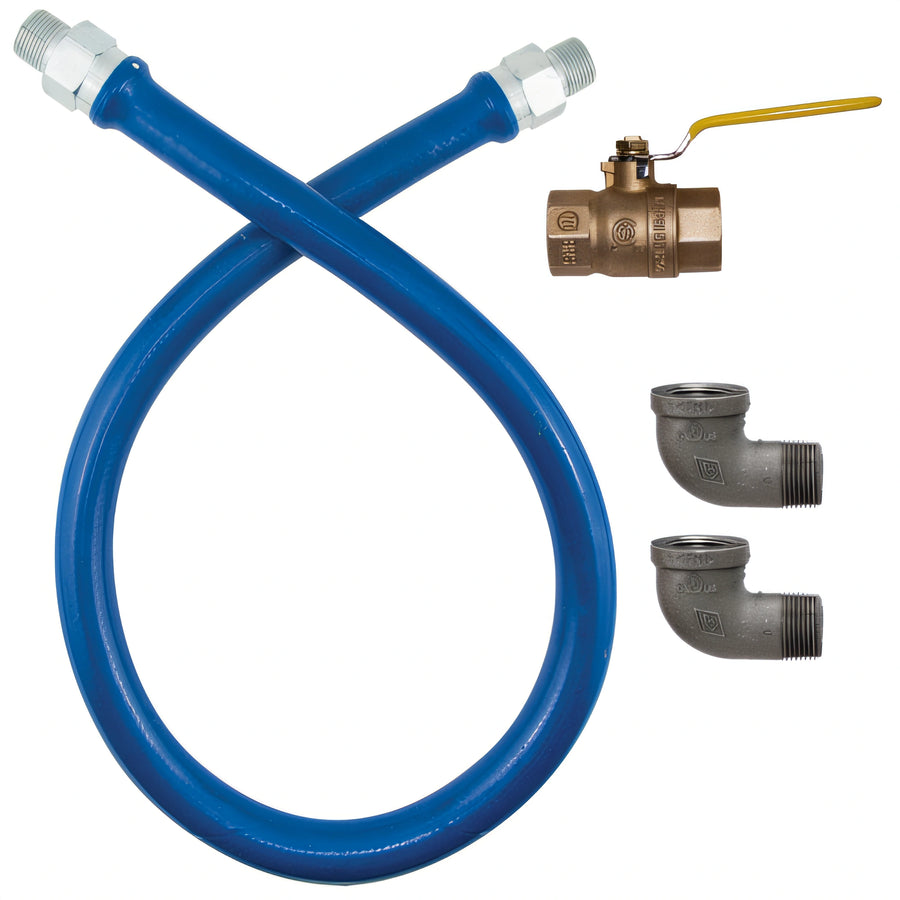

Dormont Blue Hose Food Truck Grade Gas Connector Kit, 1 Inch I.D. x 48 Inch, Stainless Steel, Blue PVC-Coated

Includes two 90° elbows and a full port valve

Built for food trucks and other moveable equipment, this high-flow gas connector kit combines stainless steel durability, antimicrobial PVC protection, and stress-reducing swivel ends.

  • Designed for food trucks and other moveable or caster-mounted gas equipment.
  • 1 inch inside diameter and 48 inch length for high-flow natural gas connections.
  • 304 stainless steel tubing with a tight-weave stainless steel braid for durability.
  • Blue antimicrobial, UV PVC coating helps protect the hose and will not hold a flame.
  • Stress Guard 360° rotational end fittings help reduce strain at both ends.
  • Includes two 1 inch 90° elbows and a full port valve.
  • Meets IFC 2018 and IFC 2021 food truck gas appliance connection requirements.

Overall Dimensions:

10.38"W x 2.88"D x 26.63"H

Product Weight:

7.3 lb

Food Truck Grade Design

Built for moveable equipment and regular repositioning for cleaning or repair.

304 Stainless Steel Tubing

Annealed 304 stainless steel corrugated tubing provides durable gas flow performance.

Stainless Steel Braid

Multi-strand stainless steel wire braid adds strength and flexibility.

Blue Antimicrobial PVC Coating

Blue antimicrobial and UV PVC coating helps protect the hose; it melts at 350°F and will not hold a flame.

Stress Guard Rotation Technology

360° rotational end fittings at both ends help reduce stress on the connector.

Included Fittings

Kit includes two 1 inch 90° elbows and a full port valve.

High Flow Capacity

Rated for 451,000 BTU/hr natural gas flow capacity at 0.5 inch W.C. pressure drop.

Code Compliance

Fulfills IFC 2018 and IFC 2021 requirements for food truck gas appliance connections.

Operating Limits

Operating temperature range is -10°F to 350°F, with a maximum operating pressure of 1/2 psi.

Warranty Coverage

Backed by a limited lifetime warranty for the original appliance to which it is connected.

Type Gas Connector Kit
Style Food Truck Grade
Inside Diameter 1 Inch
Length 48 Inches
Material 304 Stainless Steel
Color Blue
Finish Antimicrobial UV PVC Coating
BTU 451,000 BTU/hr
Gas Type Natural Gas
Shipping Width 11 Inches
Shipping Depth 3 Inches
Shipping Height 27 Inches
Shipping Weight 7.3 Pounds
Selling Unit Each
Units Per Case 1

Warranty & Protection

Limited lifetime warranty

Documents

PDF Cutsheet PDF Download

Frequently Asked Questions

This kit has a 1 inch inside diameter and is 48 inches long.
It includes two 1 inch 90° elbows and a full port valve.
The connector is rated at 451,000 BTU/hr for natural gas flow capacity at a 0.5 inch W.C. pressure drop.
Yes. It is designed for moveable equipment and fulfills IFC 2018 and IFC 2021 food truck gas appliance connection requirements.
The hose uses annealed 304 stainless steel tubing, a stainless steel wire braid, and a blue antimicrobial PVC coating.
It carries a limited lifetime warranty for the original appliance to which it is connected.
