Dormont Blue Hose Food Truck Gas Connector Kit — 1 Inch I.D. x 36 Inch, 512,000 BTU/hr

SKU: 16100BPV36BXFT
GTIN: 662447002391
$272.64
/each
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers Dormont Manufacturing Gas Hose New Arrivals Restaurant Equipment Restaurant Equipment Parts

Dormont Blue Hose Food Truck Gas Connector Kit — 1 Inch I.D. x 36 Inch, 512,000 BTU/hr

304 Stainless Steel Corrugated Tube with Stainless Steel Braid & Antimicrobial Blue PVC Coating

Food-truck-rated 1" gas connector kit engineered for moveable equipment — 304 stainless steel construction with antimicrobial blue PVC coating, Stress Guard rotational ends, and a 512,000 BTU/hr natural gas flow capacity.

  • Food Truck Grade gas connector kit for moveable or caster-mounted equipment
  • 1 Inch inside diameter, 36 Inches length — 512,000 BTU/hr flow capacity (Natural Gas)
  • Annealed 304 stainless steel corrugated tube with multi-strand stainless steel braid
  • Blue antimicrobial & UV PVC coating (melts at 350°F / 177°C); coating will not hold a flame
  • Stress Guard® 360° rotational end fittings reduce end-of-hose stress

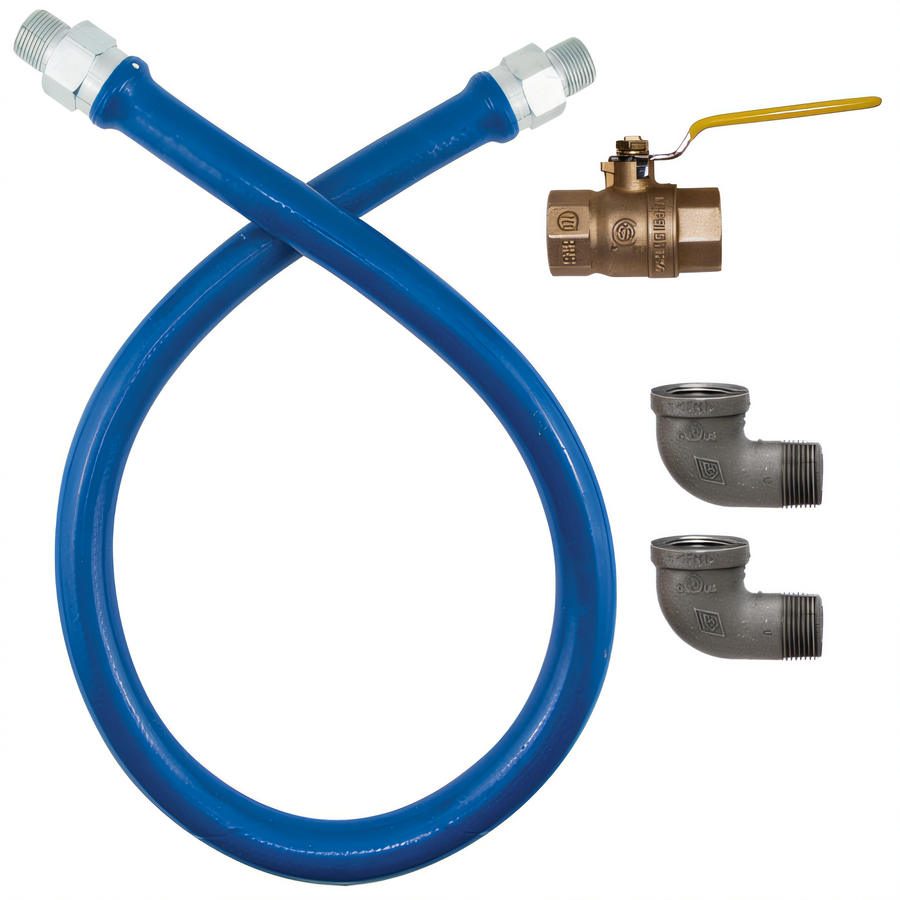

  • Includes (2) 1" 90° elbows and a full port valve
  • Limited lifetime warranty — guaranteed for the life of the original appliance to which it is connected

Overall Dimensions:

10.38"W x 2.88"D x 26.63"H

Product Weight:

6.59 lb

Antimicrobial Blue PVC Coating

Blue antimicrobial and UV-resistant PVC coating over the braid. Coating melts at 350°F (177°C) and will not hold a flame, providing a hygienic, durable finish suitable for food truck environments.

Stress Guard® Rotational Ends

360° rotational end fittings at both ends reduce stress and twisting at connections for equipment that is moved regularly.

304 Stainless Steel Tubing

Annealed 304 stainless steel corrugated tube for flexibility and long-term corrosion resistance.

Stainless Steel Braid

Multi-strand stainless steel wire braid provides abrasion resistance and added strength.

End Fittings

Carbon steel end fittings with zinc trivalent chromate finish for durability and corrosion protection.

Included Components

Kit includes two 1" 90° elbows and a full port valve for typical food truck installations.

High Flow Capacity

512,000 BTU/hr rated flow capacity for Natural Gas (flow rating based on 0.64 specific gravity @ 0.5 Inches W.C. pressure drop).

Operating Range

Blue Hose operating temperature range: -10°F to 350°F (-23°C to 177°C). Maximum operating pressure: 0.5 psi.

Approvals & Certifications

Fulfills IFC 2018 and IFC 2021 requirements for food truck gas appliance connections. NSF/ANSI 169; ANSI Z21.69/CSA 6.16; meets requirements of ANSI Z223.1/NFPA 54.

Installation Note

When used on caster-mounted equipment, install a restraining device to prevent transmission of strain to the connector (ANSI Z21.69 section 1.7.4).

Type Gas Connector Kit
Style Food Truck Grade
Material 304 Stainless Steel
Finish Blue Antimicrobial PVC Coating
Color Blue
BTU 512,000 BTU/hr
Gas Type Natural Gas
Gas Connection Size 1 Inch
Length 36 Inches
Temperature Range -10°F - 350°F
Max Operating Pressure 0.5 psi
Selling Unit Each
Units Per Case 1
Shipping Width 11 Inches
Shipping Depth 3 Inches
Shipping Height 27 Inches
Shipping Weight 6.59 Pounds

Warranty & Protection

Limited lifetime warranty — guaranteed for the life of the original appliance to which it is connected.

Documents

PDF Cutsheet PDF Download

Frequently Asked Questions

Yes. This product fulfills the requirements in IFC 2018 and IFC 2021 for food truck gas appliance connections and complies with ANSI Z21.69/CSA 6.16, NSF/ANSI 169, and ANSI Z223.1/NFPA 54.
The 1 Inch I.D. x 36 Inch model is rated for 512,000 BTU/hr for natural gas (flow rating based on 0.64 specific gravity at a 0.5 Inches W.C. pressure drop).
The kit includes two 1" 90° elbows and a full port valve (Food Truck kits typically include these components).
Operating temperature range is -10°F to 350°F (-23°C to 177°C). Maximum operating pressure is 0.5 psi.
Yes. ANSI Z21.69 section 1.7.4 requires that connectors used on caster-mounted equipment be installed with a restraining device to prevent transmission of strain to the connector.
