Dormont Blue Hose Moveable-Grade Food Truck Gas Connector Kit, 1-Inch I.D. x 24-Inch, Braided Stainless Steel

SKU: 16100BPV24BXFT
GTIN: 662447300701
$248.64
/each
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers Dormont Manufacturing Gas Hose General Restaurant Equipment Parts New Arrivals Parts & Accessories Restaurant Equipment Restaurant Equipment Parts

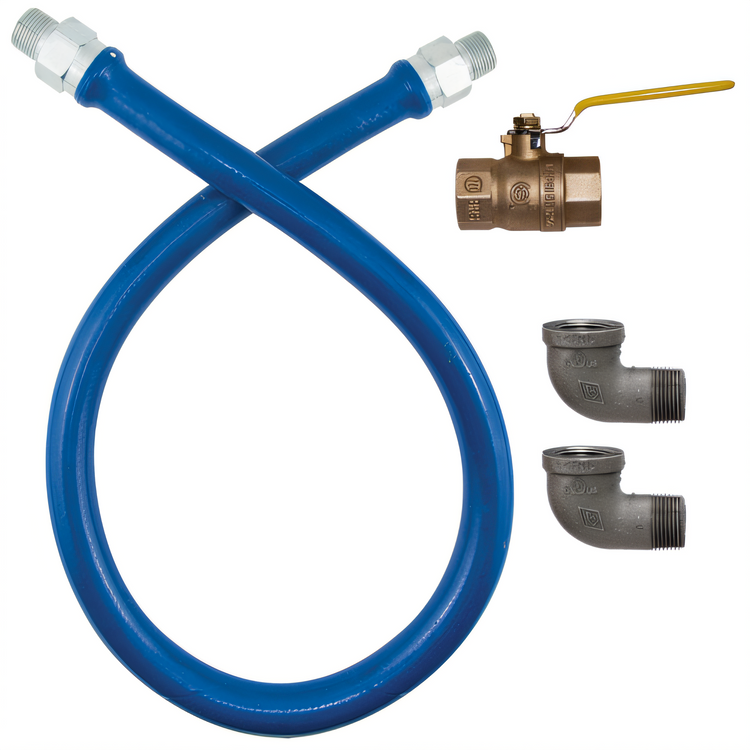

Dormont Blue Hose Moveable-Grade Food Truck Gas Connector Kit, 1-Inch I.D. x 24-Inch, Braided Stainless Steel

Blue Antimicrobial UV PVC Coating; Includes 2 Elbows, 2 Shoulder Nipples & Full Port Valve

Built for food trucks and other moveable equipment, this 1-inch connector combines durable 304 stainless steel construction with a blue antimicrobial PVC coating and a high-flow 582,000 BTU/hr rating.

  • 1-inch I.D. x 24-inch food truck gas connector kit for moveable and caster-mounted equipment.
  • Braided 304 stainless steel tubing with a blue antimicrobial UV PVC coating for durability.
  • Stress Guard 360° rotational end fittings help reduce strain at both ends of the hose.
  • Includes 2 1-inch 90° elbows, 2 shoulder nipples, and a full port valve.
  • Rated for 582,000 BTU/hr natural gas service with a -10°F to 350°F operating range.

Overall Dimensions:

10.38"W x 2.88"D x 26.63"H

Product Weight:

5.88 lb

304 Stainless Steel Tubing

Annealed 304 stainless steel tubing with multi-strand stainless steel wire braid provides flexible, durable gas service.

Blue Antimicrobial UV PVC Coating

Protective blue PVC coating is antimicrobial, UV-resistant, and melts at 350°F; it will not hold a flame.

Stress Guard Rotational Fittings

360° rotational end fittings at both ends help reduce strain on the connector during use and movement.

Complete Food Truck Kit

Includes two 1-inch 90° elbows, two shoulder nipples, and a full port valve.

Moveable-Grade Design

Designed for moveable equipment and caster-mounted equipment that is regularly moved for cleaning and repair.

High Flow Capacity

The 1-inch, 24-inch model is rated at 582,000 BTU/hr for natural gas service.

Operating Temperature Range

Rated for service from -10°F to 350°F (-23°C to 177°C).

Type Food Truck Gas Connector Kit
Style Moveable-Grade
Gas Connection Size 1 Inch
Length 24 Inches
Material 304 Stainless Steel
Color Blue
Finish Blue Antimicrobial UV PVC
BTU 582,000 BTU/hr
Gas Type Natural Gas
Temperature Range -10°F to 350°F (-23°C to 177°C)
Shipping Width 11 Inches
Shipping Depth 3 Inches
Shipping Height 27 Inches
Shipping Weight 5.88 lb.
Selling Unit Each
Units Per Case 1

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified

Warranty & Protection

Limited lifetime warranty

Documents

PDF Cutsheet PDF Download

Frequently Asked Questions

It is a 1-inch inside diameter connector with a 24-inch length.
The kit includes two 1-inch 90° elbows, two shoulder nipples, and a full port valve.
It is designed for moveable equipment and caster-mounted equipment that is moved regularly for cleaning and repair.
The operating temperature range is -10°F to 350°F (-23°C to 177°C).
The 1-inch, 24-inch model is rated at 582,000 BTU/hr for natural gas service.
Yes. It uses Stress Guard 360° rotational end fittings at both ends to help reduce strain on the connector.
