Dormont Blue Hose 1 Inch ID x 72 Inch Moveable Gas Connector Hose Assembly

SKU: 16100BPQSR72
GTIN: 662447053546
$571.60
/each
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers Dormont Manufacturing Gas Hose New Arrivals Restaurant Equipment Restaurant Equipment Parts

Dormont Blue Hose 1 Inch ID x 72 Inch Moveable Gas Connector Hose Assembly

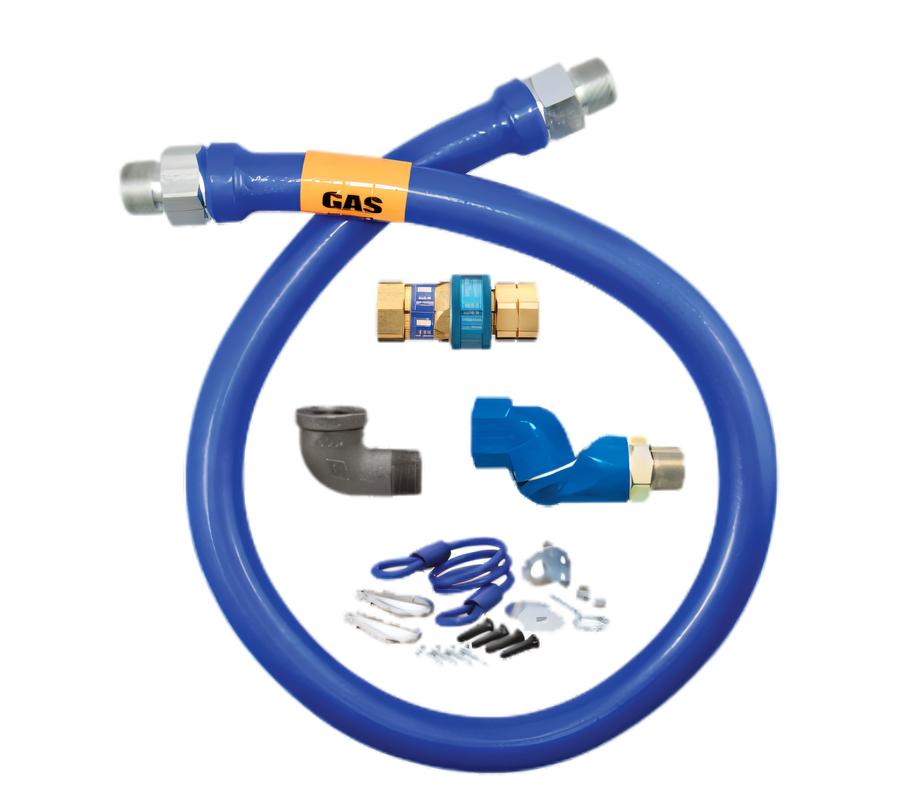

Basic Kit with SnapFast QD, Swivel MAX, and restraining device

Built for moveable commercial gas equipment, this 72-inch connector combines flexible 360° swivel action, quick-disconnect convenience, and thermal shut-off safety.

  • 72-inch moveable gas connector hose assembly for commercial kitchen appliances.
  • 1-inch inside diameter supports a 260,000 BTU/hr natural gas flow capacity.
  • Swivel MAX 360° rotation helps reduce connector stress and allows tighter wall placement.
  • SnapFast quick-disconnect offers one-handed removal with thermal shut-off at 350°F.
  • Includes a coiled restraining cable with mounting hardware for moveable equipment installations.
  • Stainless steel construction with blue antimicrobial PVC coating for durable, flexible service.

Product Weight:

9.54 lb

Swivel MAX 360° Rotation

Multi-plane end fitting provides flexible movement, helps reduce stress on the connector, and can increase aisle space by allowing the appliance to sit closer to the wall.

SnapFast One-Handed Quick-Disconnect

Quick-disconnect fitting allows fast, one-handed separation for easier equipment moves and service access.

Thermal Shut-Off Protection

Automatically shuts off gas flow when internal temperatures exceed 350°F (177°C) for added safety.

Stainless Steel Hose Construction

Annealed 304 stainless steel tubing with multi-strand stainless steel wire braid is built for commercial use and flexibility.

Blue Antimicrobial PVC Coating

Protective blue coating is antimicrobial, melts at 350°F (177°C), and will not hold a flame.

Included Restraining Device

PVC-coated steel multi-strand cable and mounting hardware help prevent strain on the connector for moveable gas equipment.

High Flow Capacity

Rated at 260,000 BTU/hr at a 0.5 inch W.C. pressure drop for natural gas flow applications.

Limited Lifetime Warranty

Covered by a limited lifetime warranty and guaranteed for the life of the original appliance to which it is connected.

Type Moveable Gas Connector Hose Assembly
Style Basic Kit
Inside Diameter 1 Inch
Length 72 Inches
Material 304 Stainless Steel
Finish Blue Antimicrobial PVC
Color Blue
BTU 260,000 BTU/hr
Shipping Weight 9.54 Pounds
Country of Origin USA
Selling Unit Each
Units Per Case 1

Warranty & Protection

Limited lifetime warranty

Documents

PDF Cutsheet PDF Download PDF Restraining cable instructions PDF Download

Frequently Asked Questions

It includes a thermal shut-off that automatically stops gas flow when internal temperature exceeds 350°F (177°C).
Yes. The assembly includes a PVC-coated steel restraining cable with mounting hardware.
It is designed for commercial moveable gas equipment and appliances that may be mounted on casters or otherwise subject to movement.
The hose uses annealed 304 stainless steel tubing, stainless steel wire braid, and a blue antimicrobial PVC coating.
The 1-inch, 72-inch assembly is rated at 260,000 BTU/hr for natural gas at a 0.5 inch W.C. pressure drop.
This product is covered by a limited lifetime warranty and is guaranteed for the life of the original appliance to which it is connected.
