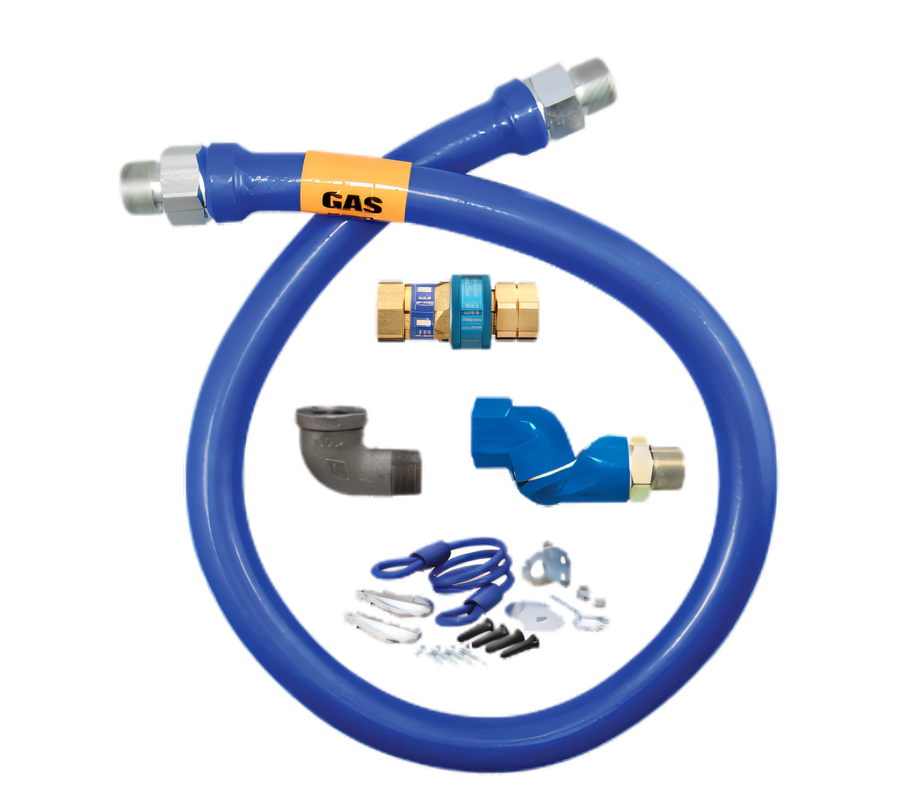

Dormont Blue Hose 60-Inch Moveable Gas Connector Hose Assembly with SnapFast Quick-Disconnect, Swivel MAX, and Restraining Device

1-Inch Inside Diameter, Blue Antimicrobial PVC-Coated 304 Stainless Steel

Designed for moveable commercial equipment, this safety-focused gas connector combines 360° swivel action, quick-disconnect convenience, and an included restraining cable.

  • 60-inch gas connector hose with 1-inch inside diameter for moveable equipment.
  • Swivel MAX fitting provides 360° rotational movement to reduce connector stress.
  • SnapFast quick-disconnect offers one-handed service with automatic thermal shut-off.
  • 304 stainless steel tubing and braid are protected by a blue antimicrobial PVC coating.
  • Includes a PVC-coated restraining cable and mounting hardware for moveable appliances.
  • Rated for 274,000 BTU/hr natural gas flow capacity and backed by a limited lifetime warranty.

Product Weight:

8.66 lb

Swivel MAX 360° Rotation

Multi-plane rotational fitting helps reduce stress on the connector and allows appliances to be positioned closer to the wall.

SnapFast Quick-Disconnect

One-handed quick-disconnect fitting makes appliance service and movement easier.

Thermal Shut-Off Protection

Automatically shuts off gas when internal temperatures exceed 350°F (177°C).

304 Stainless Steel Construction

Annealed 304 stainless steel tubing with multi-strand stainless steel wire braid adds durability.

Blue Antimicrobial PVC Coating

Blue coating helps protect the hose, will not hold a flame, and melts at 350°F (177°C).

Included Restraining Device

PVC-coated steel multi-strand cable and mounting hardware help secure moveable gas equipment.

Natural Gas Flow Capacity

Rated at 274,000 BTU/hr minimum flow capacity at a 0.5 inch W.C. pressure drop.

Type Moveable Gas Connector Hose Assembly
Style Basic Kit
Length 60 Inches
Inside Diameter 1 Inch
Material 304 Stainless Steel
Finish Blue Antimicrobial PVC
Color Blue
BTU 274,000 BTU/hr
Gas Type Natural Gas
Maximum Operating Pressure 1/2 psi
Country of Origin USA
Selling Unit Each
Units Per Case 1

Warranty & Protection

Limited lifetime warranty

Documents

PDF Cutsheet PDF Download PDF Restraining cable instructions PDF Download

Frequently Asked Questions

It is 60 inches long with a 1-inch inside diameter.
Yes. It includes a PVC-coated restraining cable with mounting hardware.
The SnapFast fitting has an automatic thermal shut-off that closes the gas flow when internal temperatures exceed 350°F (177°C).
The documented minimum flow capacity is 274,000 BTU/hr for natural gas.
Yes. The documentation states that it is for indoor use only and not for temperatures below 32°F (0°C).
