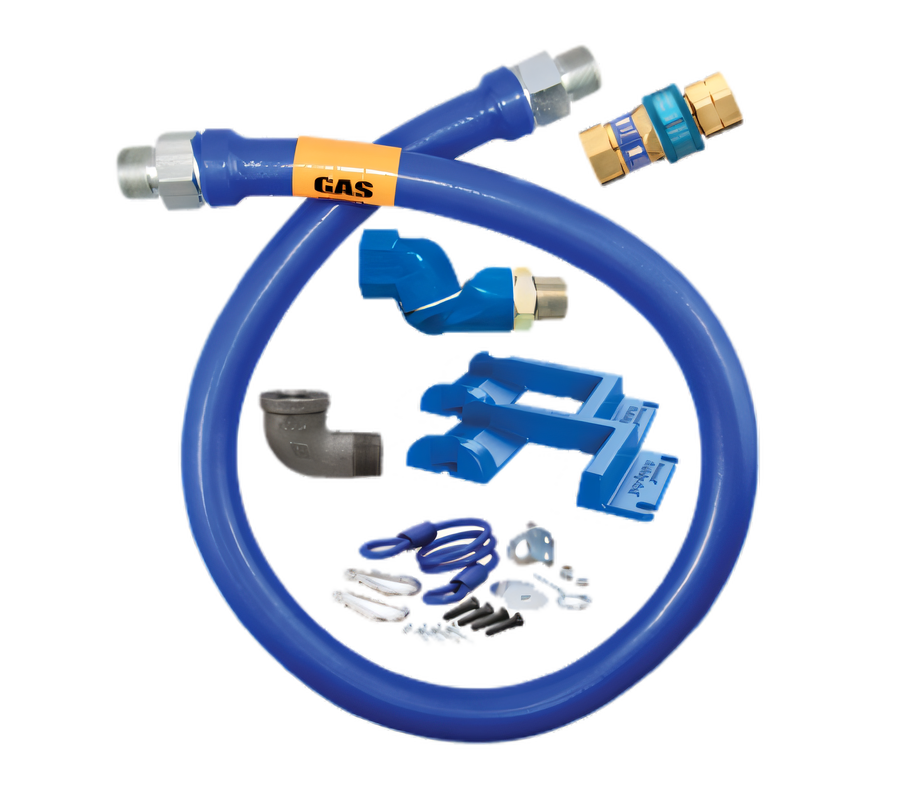

Dormont Blue Hose 1 Inch I.D. x 48 Inch Moveable Gas Connector Hose Assembly with SnapFast Quick Disconnect, Swivel MAX and Safety Set

SKU: 16100BPQSR48BXPS
$559.87
/each
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers Dormont Manufacturing Gas Hose New Arrivals Restaurant Equipment Restaurant Equipment Parts

Dormont Blue Hose 1 Inch I.D. x 48 Inch Moveable Gas Connector Hose Assembly with SnapFast Quick Disconnect, Swivel MAX and Safety Set

304 Stainless Steel Braid, Blue Antimicrobial PVC Coating

Built for moveable commercial gas appliances, this 48-inch connector combines stainless steel durability, 360° swivel protection and quick-disconnect convenience.

  • 1 inch inside diameter and 48 inch length for moveable commercial gas connections.
  • Swivel MAX 360° rotation helps reduce hose stress and lets equipment sit closer to the wall.
  • SnapFast one-handed quick disconnect speeds appliance servicing and includes thermal shutoff protection.
  • 304 stainless steel tubing and braid add strength, flexibility and long service life.
  • Blue antimicrobial PVC coating helps protect the hose assembly and will not hold a flame.
  • Includes a Safety Set restraining device with adhesive foam tape and hardware mounting options.

Product Weight:

9.37 lb

Swivel MAX 360° Rotation

Rotational end fitting reduces stress at both ends of the hose and helps reclaim kitchen aisle space.

SnapFast Quick Disconnect

One-handed quick-disconnect fitting makes it easier to move or service connected equipment.

Thermal Shutoff Protection

Automatically shuts off gas when internal temperature exceeds 350°F (177°C).

304 Stainless Steel Construction

Annealed stainless steel tubing with multi-strand stainless steel wire braid for durability and flexibility.

Blue Antimicrobial PVC Coating

Protective blue coating resists flame and melts at 350°F (177°C).

Safety Set Restraining Device

Includes a PVC-coated steel multi-strand cable with adhesive foam tape and hardware mounting options.

Moveable-Grade Commercial Design

Designed for commercial gas equipment that is mounted on casters or otherwise subject to movement.

Type Moveable Gas Connector Hose Assembly
Style Swivel MAX / SnapFast Quick Disconnect
Material 304 Stainless Steel
Finish Blue Antimicrobial PVC
Inside Diameter 1 Inch
Hose Length 48 Inches
BTU 310,000 BTU/hr
Maximum Operating Pressure 1/2 psi
Selling Unit Each
Units Per Case 1
Country of Origin USA

Warranty & Protection

Limited lifetime warranty.

Documents

PDF Cutsheet PDF Download

Frequently Asked Questions

The assembly includes a 1 inch I.D. hose, 48 inch length, stainless steel braid, blue antimicrobial PVC coating, SnapFast quick disconnect, Swivel MAX fitting, and Safety Set restraining device.
Yes. The documentation states that a restraining device is required for all moveable gas equipment.
It provides one-handed quick disconnect convenience and automatically shuts off gas when internal temperature exceeds 350°F (177°C).
Yes. It is designed for commercial moveable-grade gas equipment, including appliances mounted on casters.
The documented natural gas flow capacity for the 1 inch I.D., 48 inch length configuration is 310,000 BTU/hr.
No. The documentation says it is for indoor use only and not for temperatures less than 32°F (0°C).
