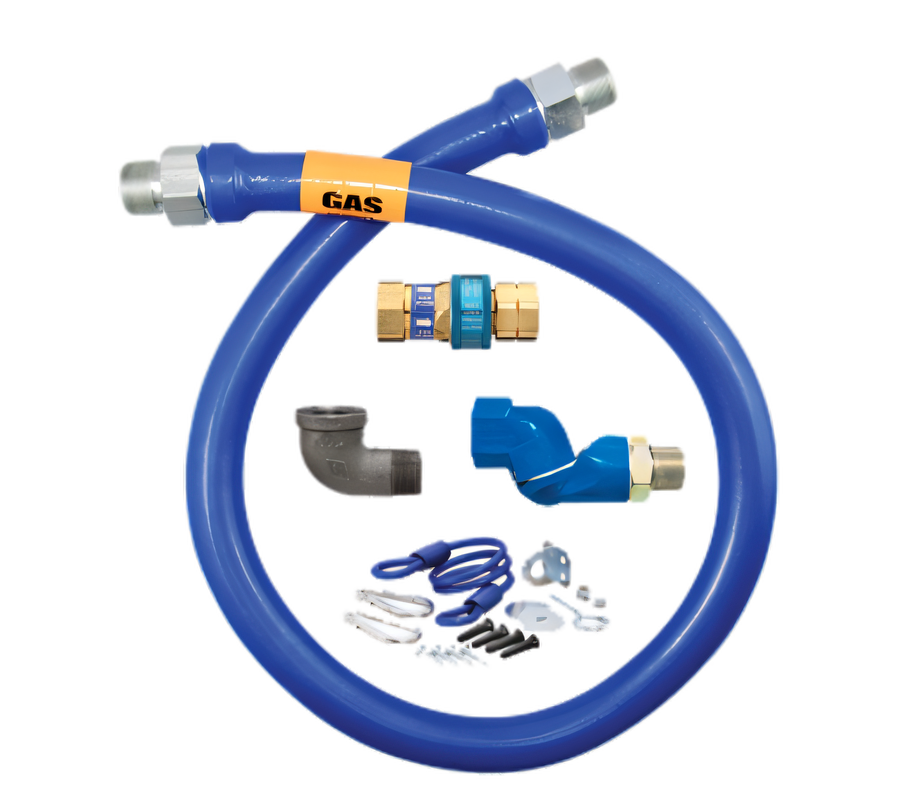

Dormont Blue Hose 48-Inch Moveable Gas Connector Hose Assembly, 1-Inch I.D., with SnapFast QD and Swivel MAX

Stainless Steel Braid, Blue Antimicrobial PVC Coating, Restraining Cable Included

Built for moveable commercial gas equipment, this 48-inch hose assembly combines a one-handed quick-disconnect, 360° swivel movement, and an included restraining cable for safer, more flexible installation.

  • 48-inch, 1-inch I.D. moveable gas connector hose assembly for commercial kitchen equipment.
  • SnapFast one-handed quick-disconnect includes thermal shut-off above 350°F (177°C).
  • Swivel MAX 360° rotational fitting helps reduce connector stress and lets appliances sit closer to the wall.
  • Annealed 304 stainless steel tubing and stainless steel wire braid are protected by a blue antimicrobial PVC coating.
  • Includes a PVC-coated steel restraining cable and mounting hardware for moveable equipment.
  • Rated at 310,000 BTU/hr minimum flow capacity and backed by a limited lifetime warranty.

Product Weight:

7.82 lb

One-Handed SnapFast Quick-Disconnect

Allows fast disconnect with one hand and automatically shuts off gas when internal temperature exceeds 350°F (177°C).

360° Swivel MAX Movement

Rotational end fitting reduces stress on the hose and helps increase kitchen aisle space by allowing the appliance to sit closer to the wall.

Stainless Steel Hose Construction

Made with annealed 304 stainless steel tubing and multi-strand stainless steel wire braiding for durability.

Blue Antimicrobial PVC Coating

The blue coating helps protect the hose and is designed to melt at 350°F (177°C) without holding a flame.

Restraining Cable and Hardware Included

PVC-coated, multi-strand steel restraining device and mounting hardware are included for moveable gas equipment installations.

High Flow Capacity

The 1-inch, 48-inch configuration is rated for 310,000 BTU/hr minimum natural gas flow capacity at the stated pressure drop.

Limited Lifetime Warranty

Guaranteed for the life of the original appliance to which it is connected.

Made in USA

Manufactured in the USA under an ISO-qualified production process.

Type Gas Connector Hose Assembly
Style Moveable
Material 304 Stainless Steel
Color Blue
Finish Blue Antimicrobial PVC
BTU 310,000 BTU/hr
Length 48 Inches
Inside Diameter 1 Inch
Country of Origin USA
Selling Unit Each
Units Per Case 1

Warranty & Protection

Limited lifetime warranty

Documents

PDF Cutsheet PDF Download PDF Restraining cable instructions PDF Download

Frequently Asked Questions

It is 48 inches long with a 1-inch inside diameter.
Yes. The assembly includes a PVC-coated steel multi-strand restraining cable with mounting hardware.
It is a one-handed quick-disconnect fitting with thermal shut-off that closes when internal temperature exceeds 350°F (177°C).
The 1-inch, 48-inch configuration is rated for a minimum flow capacity of 310,000 BTU/hr.
It uses annealed 304 stainless steel tubing with stainless steel wire braiding and a blue antimicrobial PVC coating.
It comes with a limited lifetime warranty for the life of the original appliance.
