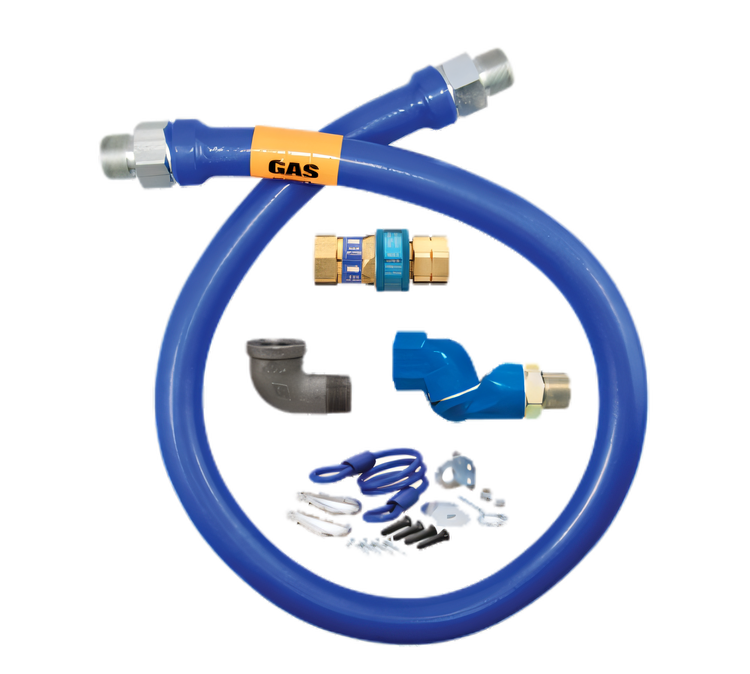

Dormont Blue Hose 1 Inch x 36 Inch Moveable Gas Connector Hose Assembly with SnapFast Quick-Disconnect and Swivel MAX

Basic Kit with Restraining Device, Blue Antimicrobial PVC-Coated Stainless Steel

Built for moveable commercial gas equipment, this 1-inch x 36-inch connector combines swivel movement, quick-disconnect safety, and an included restraining cable to help reduce stress and improve appliance placement.

  • 1-inch inside diameter and 36-inch length for moveable commercial gas appliances.
  • Swivel MAX fitting provides 360° rotational movement to reduce connector stress and free up aisle space.
  • SnapFast quick-disconnect allows one-handed disconnect and features thermal shut-off above 350°F.
  • Stainless steel tubing and braid are protected by a blue antimicrobial PVC coating.
  • Includes a PVC-coated restraining cable with mounting hardware for safer caster-mounted installations.
  • Limited lifetime warranty and manufactured in the USA.

Product Weight:

7.62 lb

Swivel MAX 360° Rotation

Multi-plane fitting adds 360° rotational movement to reduce stress on the connector and help position equipment closer to the wall.

SnapFast Quick-Disconnect

One-handed quick-disconnect fitting provides fast appliance removal and automatically shuts off gas when internal temperatures exceed 350°F (177°C).

Stainless Steel Hose Construction

Annealed 304 stainless steel tubing with multi-strand stainless steel wire braid supports durability in commercial kitchens.

Blue Antimicrobial PVC Coating

Blue coating over the braid helps protect the hose and will not hold a flame; it melts at 350°F (177°C).

Included Restraining Device

PVC-coated steel multi-strand cable and mounting hardware are included to help secure moveable equipment.

Indoor Commercial Use

Designed for moveable gas appliances; the document states the connector is for indoor use only and has a maximum operating pressure of 1/2 psi.

Limited Lifetime Warranty

Guaranteed for the life of the original appliance to which it is connected.

Made in the USA

Manufactured in the USA under an ISO-qualified production process.

Type Moveable Gas Connector Hose Assembly
Style Basic Kit
Inside Diameter 1 Inch
Length 36 Inches
Material Stainless Steel
Color Blue
Finish Blue Antimicrobial PVC Coating
BTU 353,000 BTU/hr
Shipping Weight 7.62 lb.
Selling Unit Each
Units Per Case 1
Country of Origin USA

Warranty & Protection

Limited lifetime warranty

Documents

PDF Cutsheet PDF Download PDF Restraining cable instructions PDF Download

Frequently Asked Questions

It has a 1-inch inside diameter and a 36-inch length.
The assembly includes a Swivel MAX fitting, a SnapFast quick-disconnect, and a coiled restraining cable with hardware.
Yes. The SnapFast fitting shuts off gas when internal temperatures exceed 350°F (177°C).
Yes. The document states that a restraining device is required for all moveable gas equipment.
For the 1-inch, 36-inch version, the documented natural gas flow capacity is 353,000 BTU/hr.
It is covered by a limited lifetime warranty for the life of the original appliance.
