Dormont Manufacturing

Dormont Blue Hose 1 Inch ID x 48 Inch Moveable Gas Connector Hose Assembly with SnapFast QD and Swivel MAX

SKU: 16100BPQS48BX
$464.30
/each
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers Dormont Manufacturing Gas Hose General Restaurant Equipment Parts New Arrivals Parts & Accessories Restaurant Equipment Restaurant Equipment Parts

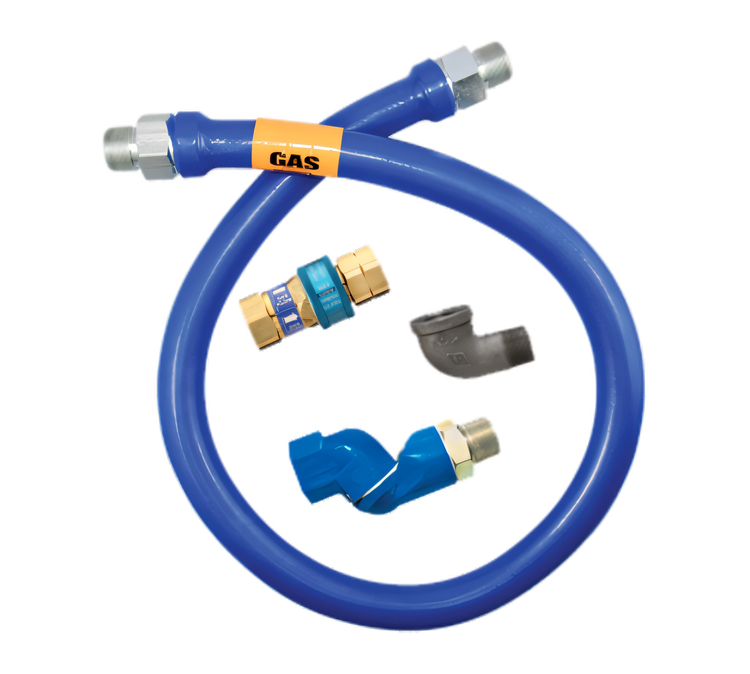

Dormont Blue Hose 1 Inch ID x 48 Inch Moveable Gas Connector Hose Assembly with SnapFast QD and Swivel MAX

Stainless Steel Braid, Blue Antimicrobial PVC Coating, Retail Box Packaging

Built for moveable commercial gas equipment, this 48-inch hose assembly combines 360° rotation with one-handed quick-disconnect safety for easier, lower-stress appliance positioning.

  • 1-inch inside diameter and 48-inch length fit the specified moveable gas connection application.
  • Swivel MAX provides 360° rotational movement to reduce connector stress and help appliances sit closer to the wall.
  • SnapFast one-handed quick-disconnect includes a thermal shut-off that closes gas flow above 350°F.
  • Annealed stainless steel tubing and stainless steel braid are protected by a blue antimicrobial PVC coating.
  • Designed for indoor use on moveable gas equipment; a restraining device is required and maximum operating pressure is 1/2 psi.
  • Packaged in a retail box and backed by a limited lifetime warranty.

Product Weight:

7.89 lb

Swivel MAX 360° Rotation

Multi-plane rotational fitting helps reduce stress on the connector and adds kitchen aisle space by allowing the appliance to be positioned closer to the wall.

SnapFast One-Handed Quick-Disconnect

Provides quick, one-handed disconnection and includes thermal shut-off that automatically stops gas flow when internal temperatures exceed 350°F.

304 Stainless Steel Construction

Uses annealed 304 stainless steel tubing with multi-strand stainless steel wire braid for durable moveable-gas service.

Blue Antimicrobial PVC Coating

The blue coating helps protect the hose, will not hold a flame, and melts at 350°F.

Stress Guard Rotation Technology

Rotational end fittings at both ends help reduce wear and extend connector life.

Moveable Equipment Safety Requirements

Intended for moveable gas equipment applications; a restraining device is required. For indoor use only and not for temperatures below 32°F.

Type Moveable Gas Connector Hose Assembly
Style Single Swivel
Inside Diameter 1 Inch
Length 48 Inches
Material 304 Stainless Steel
Finish Blue Antimicrobial PVC
Color Blue
BTU 310,000 BTU/hr
Shipping Weight 7.89 lb.
Country of Origin USA
Selling Unit Each
Units Per Case 1

Warranty & Protection

Limited lifetime warranty

Documents

PDF Cutsheet PDF Download

Frequently Asked Questions

It has a 1-inch inside diameter and is 48 inches long.
It includes a SnapFast one-handed quick-disconnect with thermal shut-off and Swivel MAX 360° rotation.
It uses annealed 304 stainless steel tubing, stainless steel braid, and a blue antimicrobial PVC coating.
Yes. The documentation states that a restraining device is required for all moveable gas equipment.
The maximum operating pressure is 1/2 psi.
No. The documentation states that it is for indoor use only.
