Dormont Manufacturing

Dormont Blue Hose 1-Inch ID x 36-Inch Moveable Gas Connector Hose Assembly with Swivel MAX and SnapFast Quick-Disconnect

SKU: 16100BPQS36BX
$446.28
/each
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers Dormont Manufacturing Gas Hose General Restaurant Equipment Parts New Arrivals Parts & Accessories Restaurant Equipment Restaurant Equipment Parts

Dormont Blue Hose 1-Inch ID x 36-Inch Moveable Gas Connector Hose Assembly with Swivel MAX and SnapFast Quick-Disconnect

Stainless steel braid with blue antimicrobial PVC coating

Built for safe, flexible commercial gas hookups, this 36-inch hose assembly combines 360° swivel movement, one-handed quick disconnect convenience, and thermal shutoff protection.

  • 1-inch inside diameter x 36-inch length for moveable commercial gas equipment.
  • Swivel MAX provides 360° rotational movement to reduce connector stress and improve wall clearance.
  • SnapFast offers one-handed quick disconnect performance with automatic thermal shutoff above 350°F.
  • Annealed 304 stainless steel tubing and stainless steel braid support durable gas service.
  • Blue antimicrobial PVC coating adds protection and will not hold a flame.
  • Designed for indoor use; a restraining device is required for moveable gas equipment.

Product Weight:

7.39 lb

360° Swivel MAX Rotation

Multi-plane rotational end fitting helps reduce stress on the connector and allows the appliance to sit closer to the wall.

SnapFast Quick-Disconnect

One-handed quick-disconnect fitting with brass body and aluminum collar for fast service access.

Thermal Shut-Off Protection

Automatically shuts off gas when internal temperatures exceed 350°F (177°C).

304 Stainless Steel Construction

Annealed 304 stainless steel tubing with multi-strand stainless steel wire braid for durable commercial use.

Blue Antimicrobial PVC Coating

Protective blue coating resists flame and melts at 350°F (177°C).

Moveable Equipment Design

Engineered for moveable commercial gas appliances; a restraining device is required when used on caster-mounted equipment.

Type Moveable Gas Connector Hose Assembly
Style Swivel MAX / SnapFast Quick-Disconnect
Length 36 Inches
Inside Diameter 1 Inch
Material Stainless Steel
Finish Blue Antimicrobial PVC Coating
Color Blue
BTU 353,000 BTU/hr
Gas Type Natural Gas
Country of Origin USA
Selling Unit Each
Units Per Case 1
Shipping Weight 7.39 lb.

Warranty & Protection

Limited lifetime warranty

Documents

PDF Cutsheet PDF Download

Frequently Asked Questions

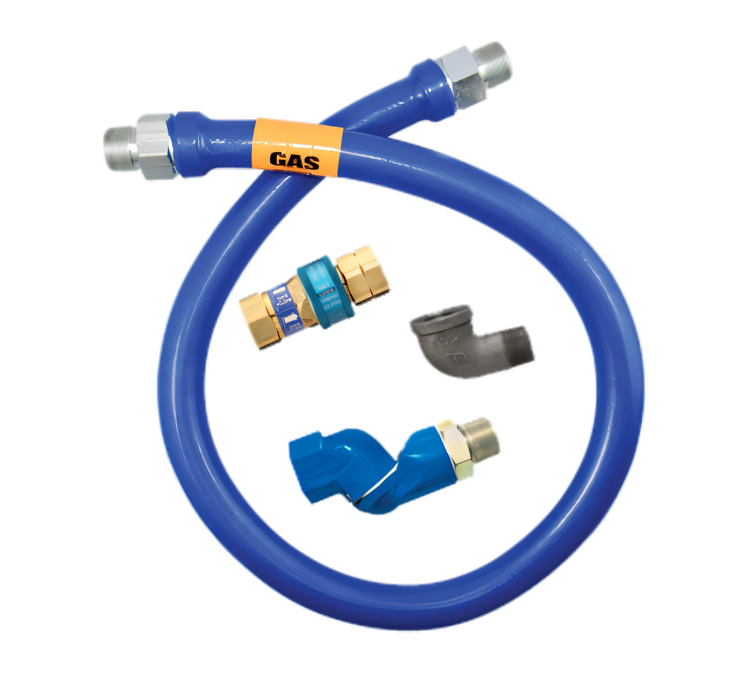

The hose assembly includes the Dormont Blue Hose, Swivel MAX, SnapFast, and a street elbow.
SnapFast allows one-handed disconnecting and automatically shuts off gas if internal temperatures exceed 350°F (177°C).
Swivel MAX provides 360° rotational movement, which reduces connector stress and can let the appliance sit closer to the wall.
Yes. A restraining device is required for all moveable gas equipment, including caster-mounted equipment.
No. It is for indoor use only and is not for use in temperatures below 32°F (0°C).
The maximum operating pressure is 1/2 psi.
