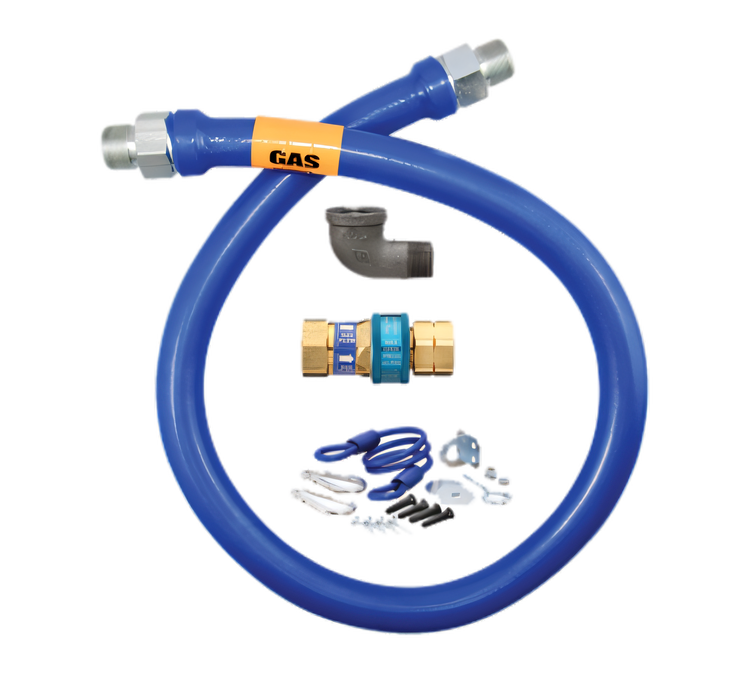

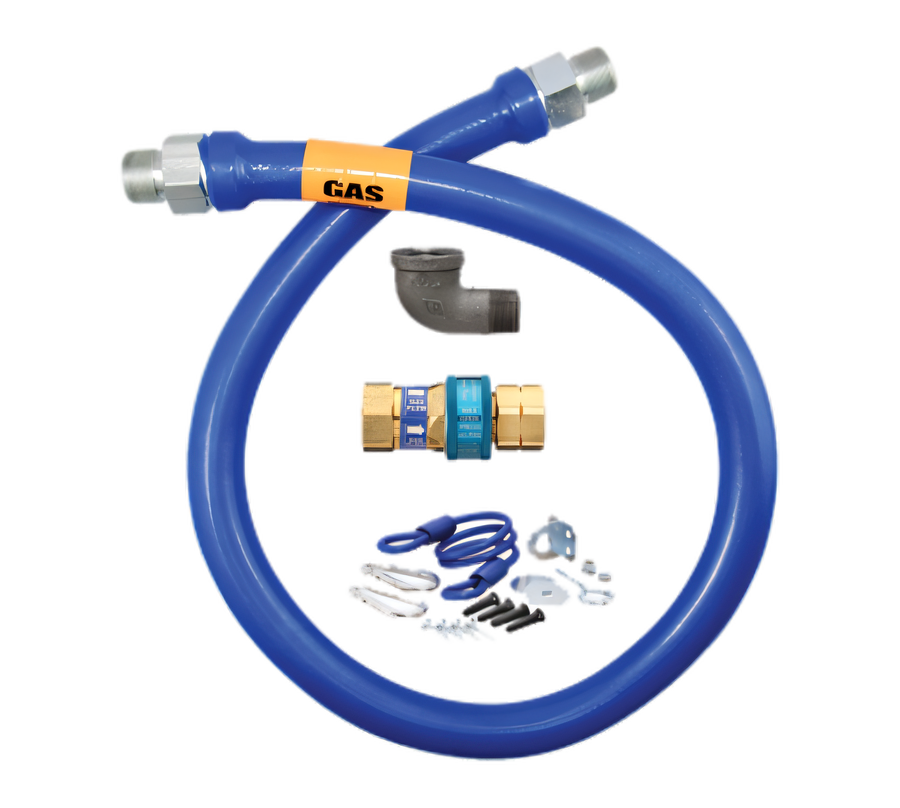

Dormont Blue Hose 1 Inch I.D. x 24 Inch Moveable Gas Connector Basic Kit with SnapFast Quick Disconnect and Restraining Cable

Blue Antimicrobial PVC, Stainless Braid, 414,000 BTU/hr Flow Capacity

Built for safe movement and fast service disconnects, this compact gas connector kit combines high flow capacity with integrated restraint protection.

  • 24-inch moveable gas connector basic kit for commercial kitchen equipment
  • Includes a SnapFast one-handed quick-disconnect, elbow, and coiled restraining cable with hardware
  • 1-inch I.D. hose with 304 stainless steel tubing, stainless braid, and blue antimicrobial PVC coating
  • Thermal shut-off feature automatically closes gas flow when internal temperature exceeds 350°F
  • Rated for 414,000 BTU/hr minimum flow capacity
  • Backed by a limited lifetime warranty and made in the USA

Product Weight:

4.95 lb

SnapFast One-Handed Quick-Disconnect

Brass-body, aluminum-collar quick-disconnect lets users separate the connection with one hand and includes thermal shut-off protection.

Thermal Shut-Off Safety

Automatically shuts off gas when internal temperature exceeds 350°F (177°C) for added safety.

Included Restraining Device

Comes with a PVC-coated steel multi-strand restraining cable and mounting hardware, which is required for moveable gas equipment.

Blue Hose Construction

Features annealed 304 stainless steel tubing with multi-strand stainless steel wire braid for flexible, durable service.

Blue Antimicrobial PVC Coating

Blue coating helps resist flame and melts at 350°F (177°C).

Stress Guard Rotation Technology

360° rotational end fittings at both ends help reduce stress on the hose during movement and connection changes.

Limited Lifetime Warranty

Commercial gas connectors are guaranteed for the life of the original appliance to which they are connected.

Type Moveable Gas Connector
Style Quick Disconnect
Inside Diameter 1 Inch
Length 24 Inches
Material 304 Stainless Steel
Finish Blue Antimicrobial PVC
Gas Type Natural Gas
BTU 414,000 BTU/hr
Shipping Weight 4.95 lb.
Country of Origin USA
Selling Unit Each
Units Per Case 1

Warranty & Protection

Limited lifetime warranty

Documents

PDF Cutsheet PDF Download PDF Restraining cable instructions PDF Download

Frequently Asked Questions

It includes the 24-inch Dormont Blue Hose connector, one SnapFast quick-disconnect, one elbow, and a coiled restraining cable with hardware.
Yes. The SnapFast quick-disconnect automatically shuts off gas when the internal temperature exceeds 350°F (177°C).
Yes. A restraining device is included, and the documentation states that a restraining device is required for all moveable gas equipment.
This model has a minimum flow capacity of 414,000 BTU/hr.
No. The documentation says it is for indoor use only and not for use in temperatures less than 32°F (0°C).
