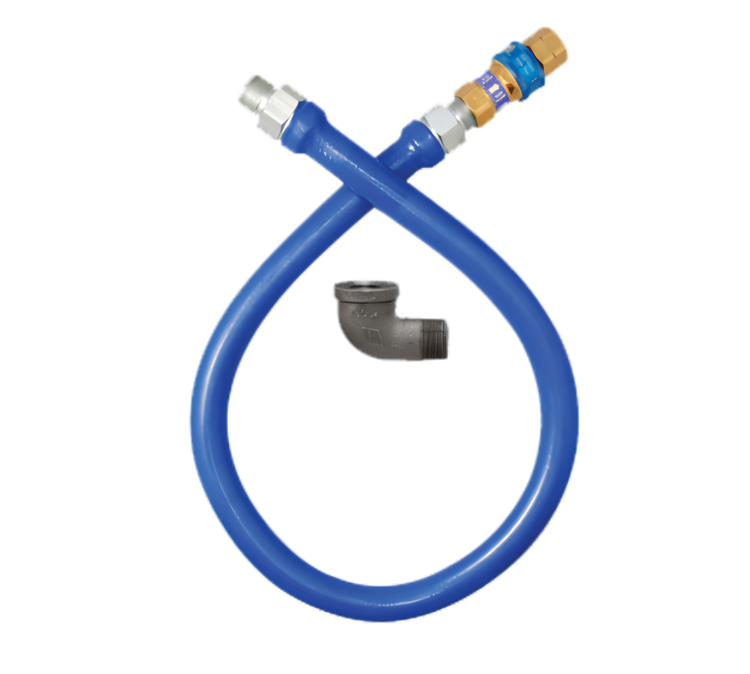

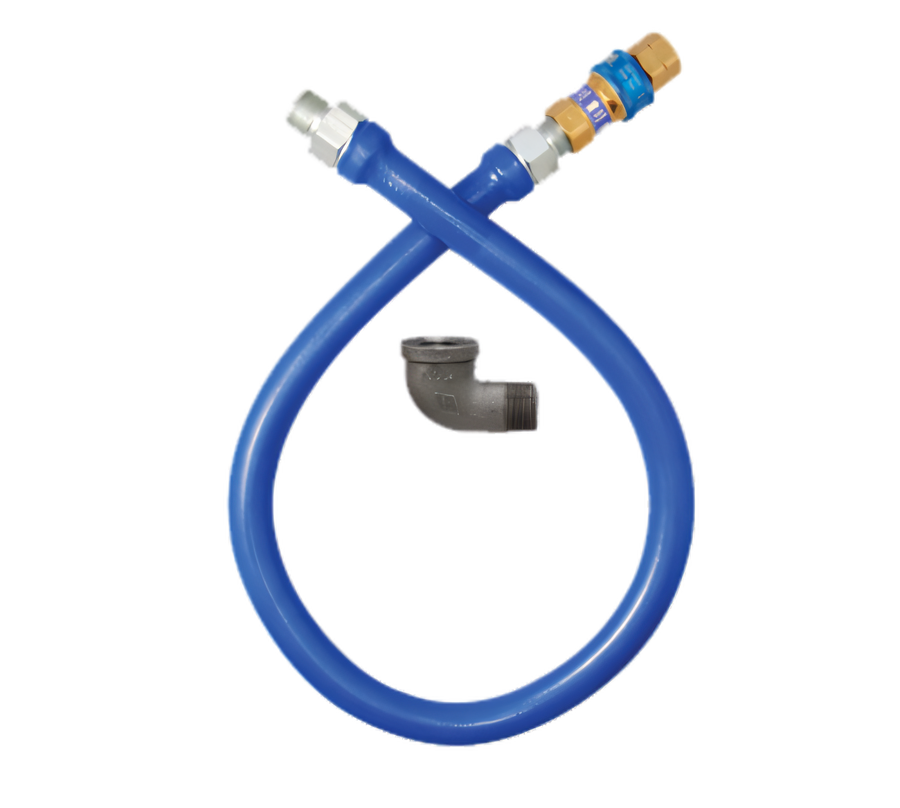

Dormont Blue Hose 1-Inch I.D. 48-Inch Moveable Gas Connector Hose Assembly with SnapFast Quick-Disconnect and Elbow

SKU: 16100BPQ48
GTIN: 662447000892
$336.30
/each
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers Dormont Manufacturing Gas Hose General Restaurant Equipment Parts New Arrivals Parts & Accessories Restaurant Equipment Restaurant Equipment Parts

Dormont Blue Hose 1-Inch I.D. 48-Inch Moveable Gas Connector Hose Assembly with SnapFast Quick-Disconnect and Elbow

Blue antimicrobial PVC coating, stainless steel braid, 334,000 BTU/hr flow capacity

Designed for moveable commercial gas equipment, this stainless steel hose assembly combines a one-handed quick-disconnect with thermal shut-off protection and high flow capacity.

  • Built for moveable gas equipment that needs a flexible, easy-to-disconnect connection.
  • 1-inch inside diameter and 48-inch length suit a wide range of commercial kitchen setups.
  • Stainless steel tubing and braid are protected by a blue antimicrobial PVC coating.
  • SnapFast one-handed quick-disconnect includes automatic thermal shut-off above 350°F.
  • Includes one elbow and Stress Guard rotational end fittings to help reduce hose strain.
  • 334,000 BTU/hr minimum flow capacity and a limited lifetime warranty add value and peace of mind.

Product Weight:

6.16 lb

Moveable Equipment Compatible

Designed for commercial gas equipment that may be mounted on casters or otherwise subject to movement.

One-Handed SnapFast Quick-Disconnect

Quick-disconnect fitting with a brass body and aluminum collar for fast, one-handed separation.

Thermal Shut-Off Safety

Automatically shuts off gas when internal temperature exceeds 350°F (177°C).

Stainless Steel Hose Construction

Annealed 304 stainless steel tubing with multi-strand stainless steel wire braid for durability.

Blue Antimicrobial PVC Coating

Protective blue coating that melts at 350°F (177°C) and will not hold a flame.

Stress Guard Rotation Technology

360° rotational end fittings at both ends help reduce stress on the hose assembly.

Included Elbow

Assembly includes one malleable iron elbow.

High Flow Capacity

Rated for a 334,000 BTU/hr minimum flow capacity.

Type Moveable Gas Connector Hose Assembly
Style Quick-Disconnect
Length 48 Inches
Inside Diameter 1 Inch
Material 304 Stainless Steel
Color Blue
Finish Blue Antimicrobial PVC Coated
BTU 334,000 BTU/hr
Country of Origin USA
Shipping Weight 6.16 lb.
Selling Unit Each
Units Per Case 1

Warranty & Protection

Limited lifetime warranty

Documents

PDF Cutsheet PDF Download

Frequently Asked Questions

It includes the Dormont Blue Hose, one SnapFast quick-disconnect, and one elbow.
The hose has a 1-inch inside diameter and is 48 inches long.
It includes a thermal shut-off that shuts off gas when internal temperature exceeds 350°F (177°C).
The assembly has a minimum flow capacity of 334,000 BTU/hr.
Yes. The documentation states that a restraining device is required for all moveable gas equipment.
It is backed by a limited lifetime gas connector warranty for the life of the original appliance to which it is connected.
