Dormont Blue Hose 1-Inch I.D. x 72-Inch Moveable Gas Connector Hose Assembly with SnapFast Quick-Disconnect and Double Swivel MAX

SKU: 16100BPQ2SR72
GTIN: 662447049952
$716.75
/each
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers Dormont Manufacturing Gas Hose New Arrivals Restaurant Equipment Restaurant Equipment Parts

Dormont Blue Hose 1-Inch I.D. x 72-Inch Moveable Gas Connector Hose Assembly with SnapFast Quick-Disconnect and Double Swivel MAX

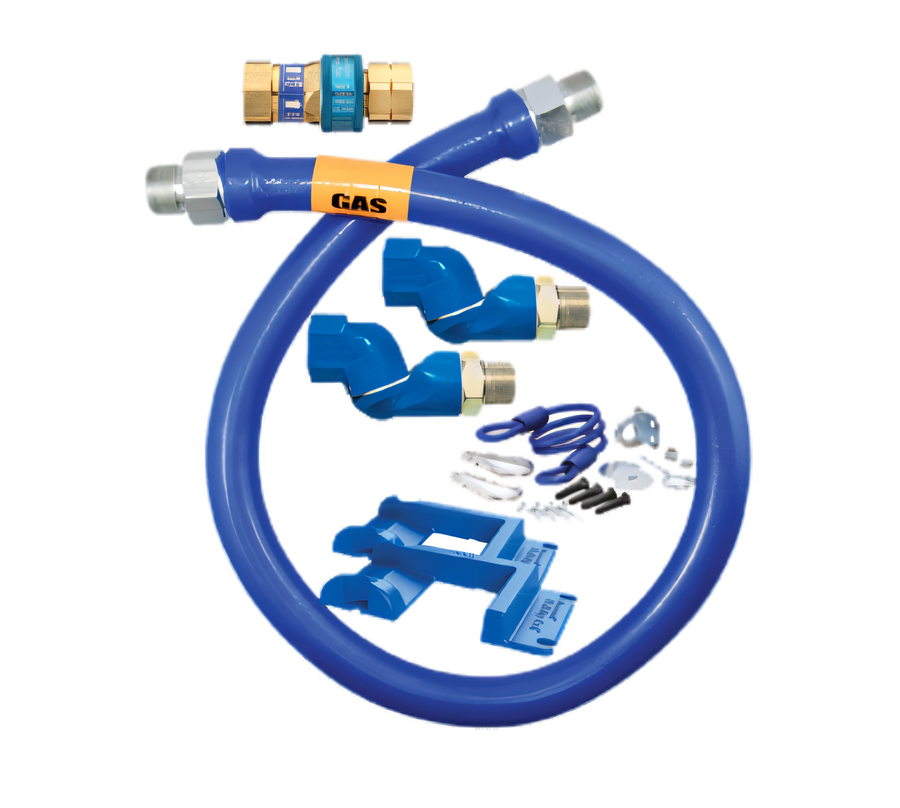

Basic Kit with Restraining Device

Built for moveable commercial appliances, this high-flow hose assembly combines stress-reducing swivel fittings, one-handed quick disconnect, and a restraining cable for safer installation.

  • 72-inch moveable gas connector hose assembly with 1-inch inside diameter
  • Annealed 304 stainless steel tubing with stainless steel wire braid and blue antimicrobial PVC coating
  • Double Swivel MAX fittings provide 360° rotation to reduce hose stress and improve appliance positioning
  • SnapFast one-handed quick-disconnect includes thermal shut-off above 350°F (177°C)
  • Coiled restraining cable with mounting hardware supports moveable or caster-mounted equipment
  • Rated for 247,000 BTU/hr minimum flow capacity and backed by a limited lifetime warranty

Product Weight:

10.18 lb

304 Stainless Steel Tubing

Annealed 304 stainless steel tubing provides a durable core for commercial gas connection use.

Stainless Steel Wire Braid

Multi-strand stainless steel braiding adds strength and flexibility.

Blue Antimicrobial PVC Coating

Blue PVC coating resists flame hold and is designed to melt at 350°F (177°C).

Double Swivel MAX End Fittings

360° rotational end fittings help reduce stress on the hose and allow closer wall placement.

SnapFast Quick-Disconnect

One-handed quick-disconnect fitting with a brass body and aluminum collar for faster appliance connection changes.

Thermal Shut-Off

Automatically shuts off gas when internal temperatures exceed 350°F (177°C).

Restraining Device Included

PVC-coated multi-strand steel restraining cable with mounting hardware is included for moveable equipment applications.

Limited Lifetime Warranty

Covered for the life of the original appliance to which it is connected.

Type Moveable Gas Connector Hose Assembly
Style Double Swivel MAX / SnapFast Quick-Disconnect
Material Stainless Steel
Finish Blue Antimicrobial PVC Coating
Color Blue
BTU 247,000 BTU/hr
Inside Diameter 1 Inch
Length 72 Inches
End Fittings Double Swivel MAX and SnapFast Quick-Disconnect
Restraining Device Included
Shipping Weight 10.18 lb.
Country of Origin USA
Selling Unit Each
Units Per Case 1

Warranty & Protection

Limited lifetime warranty

Documents

PDF Cutsheet PDF Download PDF Restraining cable instructions PDF Download

Frequently Asked Questions

The basic kit includes the Dormont Blue Hose, Double Swivel MAX, SnapFast quick-disconnect, and a restraining device.
This model has a 1-inch inside diameter and is 72 inches long.
The 1-inch, 72-inch configuration is rated at 247,000 BTU/hr in the natural gas flow table.
SnapFast has a thermal shut-off that automatically shuts off gas when internal temperature exceeds 350°F (177°C).
The documentation states this product is for indoor use only, should not be used below 32°F (0°C), and has a maximum operating pressure of 1/2 psi.
It carries a limited lifetime warranty for the life of the original appliance to which it is connected.
