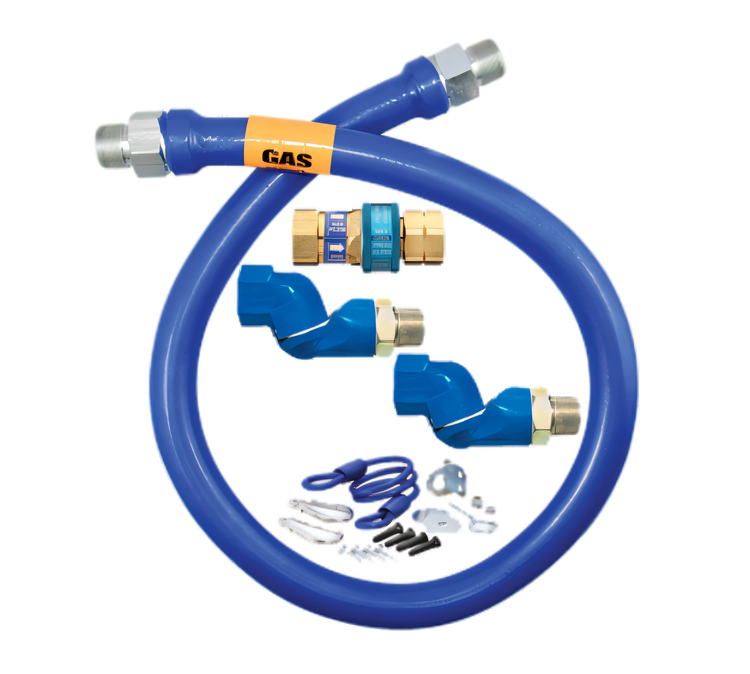

Dormont Blue Hose 1 Inch x 60 Inch Moveable Gas Connector Hose Assembly, Basic Kit with Double Swivel MAX and SnapFast Quick-Disconnect

Includes restraining device; 261,000 BTU/hr minimum flow capacity

Designed for moveable commercial gas equipment, this 60-inch connector combines flexible 360° swivel action, one-handed quick-disconnect convenience, and an included restraining device for safer installation.

  • 1-inch I.D., 60-inch-long moveable gas connector hose assembly for commercial kitchen equipment.
  • Double Swivel MAX fittings provide 360° movement to reduce stress on the connector and help position appliances closer to the wall.
  • SnapFast quick-disconnect allows one-handed connection and includes thermal shut-off protection above 350°F.
  • 304 stainless steel construction with blue antimicrobial PVC coating adds durability and flame resistance.
  • Includes a restraining cable and hardware to help support safe moveable-equipment installation.
  • 261,000 BTU/hr minimum flow capacity for the 60-inch, 1-inch I.D. model.

Product Weight:

9.3 lb

Double Swivel MAX Fittings

360° rotational end fittings help reduce stress on the hose and give the appliance more placement flexibility.

SnapFast Quick-Disconnect

One-handed quick-disconnect fitting with thermal shut-off that automatically stops gas flow when internal temperature exceeds 350°F.

304 Stainless Steel Hose

Annealed 304 stainless steel tubing with stainless steel wire braid provides strength and flexibility.

Blue Antimicrobial PVC Coating

The blue coating helps protect the hose and is designed to melt at 350°F without holding a flame.

Included Restraining Device

PVC-coated steel multi-strand cable with mounting hardware helps prevent strain on the connector.

High Flow Capacity

Rated for a minimum natural gas flow capacity of 261,000 BTU/hr at the 60-inch length.

Indoor Commercial Use

Documented for indoor use and intended for moveable commercial gas appliances.

Type Moveable Gas Connector Hose Assembly
Style Basic Kit
Length 60 Inches
Inside Diameter 1 Inch
Gas Type Natural Gas
BTU 261,000 BTU/hr
Material 304 Stainless Steel
Color Blue
Finish Blue Antimicrobial PVC Coating
Maximum Operating Pressure 1/2 psi
Country of Origin USA
Selling Unit Each
Units Per Case 1
Shipping Weight 9.3 lb.

Warranty & Protection

Limited lifetime warranty

Documents

PDF Cutsheet PDF Download PDF Restraining cable instructions PDF Download

Frequently Asked Questions

It includes the Dormont Blue Hose, Double Swivel MAX fittings, SnapFast quick-disconnect, and a restraining device with hardware.
The 1-inch I.D., 60-inch model has a minimum flow capacity of 261,000 BTU/hr for natural gas.
Yes. The SnapFast fitting is designed to shut off gas automatically when internal temperature exceeds 350°F.
Yes. The documentation states that a restraining device is required for all moveable gas equipment, and this kit includes one.
The hose uses annealed 304 stainless steel tubing, stainless steel wire braid, blue antimicrobial PVC coating, and carbon steel end fittings.
Yes. The document states it is for indoor use only and not for use in temperatures below 32°F (0°C).
