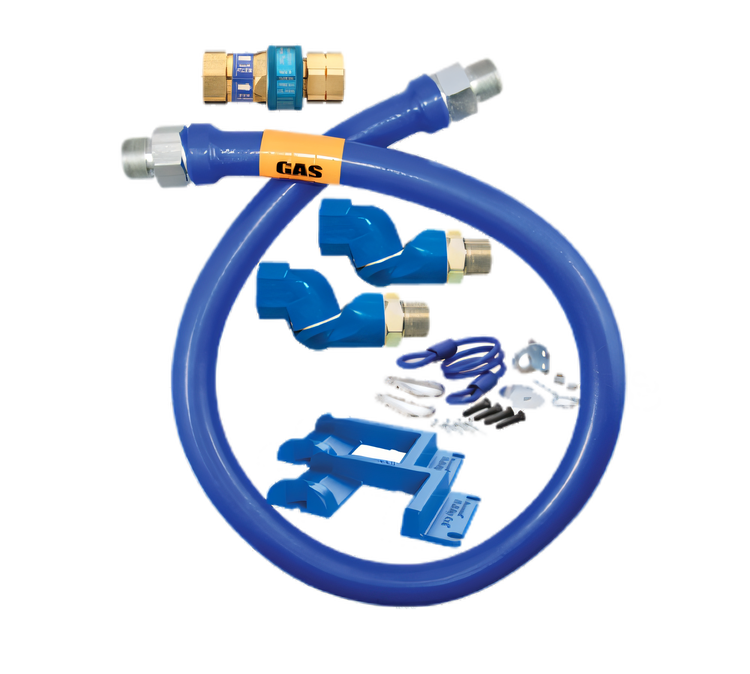

Dormont Blue Hose 1 Inch I.D. x 48 Inch Moveable Gas Connector Hose Assembly with SnapFast Quick-Disconnect, Swivel MAX, and Safety Set

SKU: 16100BPQ2SR48BXPS
$704.14
/each
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers Dormont Manufacturing Gas Hose General Restaurant Equipment Parts New Arrivals Parts & Accessories Restaurant Equipment Restaurant Equipment Parts

Dormont Blue Hose 1 Inch I.D. x 48 Inch Moveable Gas Connector Hose Assembly with SnapFast Quick-Disconnect, Swivel MAX, and Safety Set

304 Stainless Steel Braid, Blue Antimicrobial PVC Coating, Limited Lifetime Warranty

Built for moveable commercial gas equipment, this 1" x 48" assembly combines one-handed quick disconnect, 360° swivel protection, and an included Safety Set for safer installs.

  • 1" inside diameter and 48" length sized for commercial moveable gas equipment.
  • SnapFast quick-disconnect offers one-handed operation with thermal shut-off at 350°F (177°C).
  • Dual Swivel MAX ends provide 360° movement and help reduce stress on the connector.
  • 304 stainless steel tubing and braid are protected by a blue antimicrobial PVC coating.
  • Includes a Safety Set restraining device with adhesive foam tape and hardware mounting options.
  • Rated for 295,000 BTU/hr natural gas flow capacity and backed by a limited lifetime warranty.

Product Weight:

8.72 lb

One-Handed SnapFast Quick-Disconnect

Allows fast, single-handed disconnecting and automatically shuts off gas when internal temperature exceeds 350°F (177°C).

Double Swivel MAX Movement

360° rotational fittings at both ends reduce stress on the hose and increase usable kitchen aisle space.

304 Stainless Steel Construction

Annealed 304 stainless steel tubing with multi-strand stainless steel wire braiding is built for commercial durability.

Blue Antimicrobial PVC Coating

The blue coating protects the hose, melts at 350°F (177°C), and will not hold a flame.

Included Safety Set

Comes with a pair of restraining devices plus adhesive foam tape and hardware mounting options.

High Flow Capacity

The 1" x 48" size is rated at 295,000 BTU/hr under the documented natural gas test conditions.

Limited Lifetime Warranty

Guaranteed for the life of the original appliance to which it is connected.

Type Moveable Gas Connector Hose Assembly
Style Double Swivel MAX / SnapFast Quick-Disconnect
Inside Diameter 1 Inch
Length 48 Inches
Material 304 Stainless Steel
Finish Blue Antimicrobial PVC
BTU 295,000 BTU/hr
Country of Origin USA
Selling Unit Each
Units Per Case 1

Warranty & Protection

Limited lifetime warranty

Documents

PDF Cutsheet PDF Download

Frequently Asked Questions

It has a 1" inside diameter and is 48" long.
Yes. It includes a pair of Safety Set restraining devices with adhesive foam tape and hardware mounting options.
The SnapFast fitting is designed for one-handed quick disconnection and includes thermal shut-off above 350°F (177°C).
The 1" x 48" model is rated at 295,000 BTU/hr under the documented natural gas test conditions.
Yes. The document states indoor use only and notes it is not for use in temperatures below 32°F (0°C).
The document lists a maximum operating pressure of 1/2 psi.
