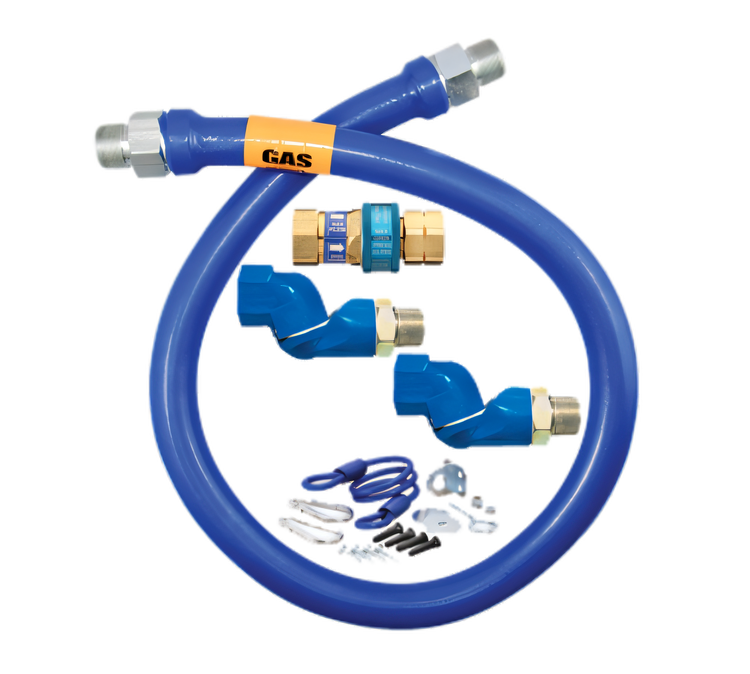

Dormont Blue Hose 1-Inch I.D. x 36-Inch Moveable Gas Connector Hose Assembly with SnapFast Quick-Disconnect and Restraining Cable

Double Swivel MAX Ends, Blue Antimicrobial PVC Coating, 336,000 BTU/hr Flow Capacity

Built for moveable commercial gas appliances, this 36-inch hose assembly pairs 360° swivel protection with a SnapFast quick-disconnect and included restraining cable for safer, easier installation.

  • 1-inch inside diameter and 36-inch length for moveable commercial gas equipment.
  • Double Swivel MAX end fittings provide 360° rotational movement to reduce stress on the hose.
  • SnapFast one-handed quick-disconnect adds convenience and thermal shut-off protection at 350°F.
  • Blue antimicrobial PVC coating over stainless steel braid helps protect the hose and will not hold a flame.
  • Includes a PVC-coated restraining cable and mounting hardware for safer moveable installation.
  • Rated for 336,000 BTU/hr minimum natural gas flow capacity at 0.5-inch W.C. pressure drop.

Product Weight:

7.59 lb

Moveable Gas Appliance Application

Designed for commercial moveable equipment that may be mounted on casters or otherwise subject to movement.

Double Swivel MAX End Fittings

360° rotational end fittings at both ends help reduce connector stress and allow equipment to sit closer to the wall.

SnapFast Quick-Disconnect

One-handed quick-disconnect fitting with thermal shut-off that stops gas flow when internal temperature exceeds 350°F (177°C).

304 Stainless Steel Construction

Annealed 304 stainless steel tubing with multi-strand stainless steel wire braid for durable gas service.

Blue Antimicrobial PVC Coating

Blue PVC coating adds protection and is designed not to hold a flame.

Restraining Device Included

PVC-coated steel multi-strand restraining cable with mounting hardware is included for safer moveable equipment installation.

High Flow Capacity

Minimum natural gas flow capacity of 336,000 BTU/hr at 0.5-inch W.C. pressure drop.

Type Gas Hose Assembly
Style Moveable
Material 304 Stainless Steel
Color Blue
Finish Antimicrobial PVC Coated
Inside Diameter 1 Inch
Length 36 Inches
BTU 336,000 BTU/hr
Restraining Device Included
Selling Unit Each
Units Per Case 1
Country of Origin USA

Warranty & Protection

Limited lifetime warranty

Documents

PDF Cutsheet PDF Download PDF Restraining cable instructions PDF Download

Frequently Asked Questions

It has a 1-inch inside diameter and is 36 inches long.
Yes. It includes a PVC-coated steel multi-strand restraining cable with mounting hardware.
It includes one SnapFast one-handed quick-disconnect and two Swivel MAX rotational end fittings.
It is rated for 336,000 BTU/hr minimum natural gas flow capacity at a 0.5-inch W.C. pressure drop.
Yes. It carries a limited lifetime warranty for the life of the original appliance to which it is connected.
No. The document states indoor use only and not for temperatures less than 32°F (0°C).
