Dormont Manufacturing

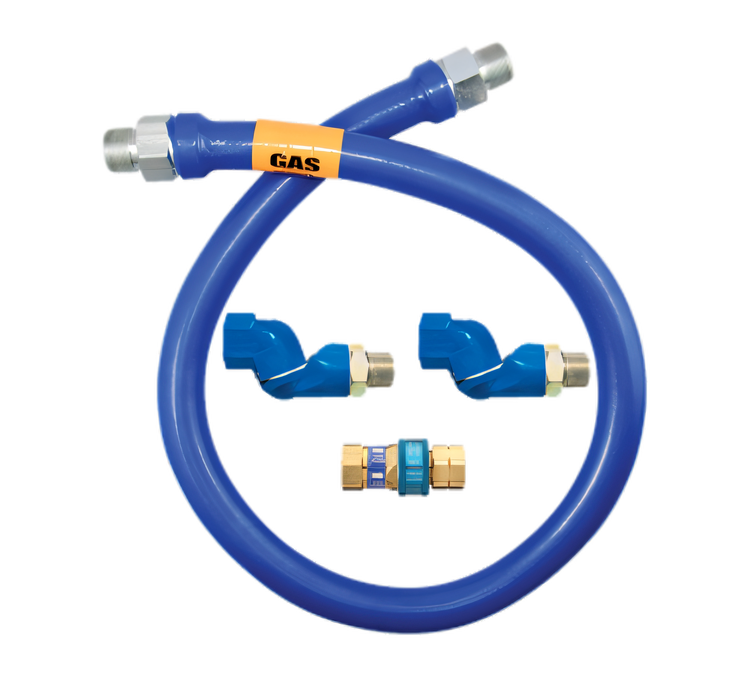

Dormont Blue Hose 1 Inch I.D. x 72 Inch Moveable Gas Connector Hose Assembly with Double Swivel MAX and SnapFast Quick-Disconnect

SKU: 16100BPQ2S72
GTIN: 662447046845
$691.50
/each
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers Dormont Manufacturing Gas Hose General Restaurant Equipment Parts New Arrivals Parts & Accessories Restaurant Equipment Restaurant Equipment Parts

Dormont Blue Hose 1 Inch I.D. x 72 Inch Moveable Gas Connector Hose Assembly with Double Swivel MAX and SnapFast Quick-Disconnect

Blue Antimicrobial PVC Coated Stainless Steel, 247,000 BTU/hr Capacity

A commercial-grade moveable gas connector hose that combines 360° swivel protection, one-handed quick-disconnect convenience, and a durable blue antimicrobial coating.

  • 1-inch I.D. x 72-inch hose assembly for moveable commercial gas equipment.
  • Double Swivel MAX fittings provide 360° movement at both ends to reduce stress.
  • SnapFast one-handed quick-disconnect includes thermal shut-off above 350°F.
  • 304 stainless steel tubing with stainless braid and blue antimicrobial PVC coating.
  • Rated at 247,000 BTU/hr minimum flow capacity and backed by a limited lifetime warranty.
  • Restraining device required for caster-mounted equipment; indoor use only.

Product Weight:

9.61 lb

304 Stainless Steel Tubing

Annealed 304 stainless steel construction provides a durable, flexible gas connector body.

Stainless Steel Braid

Multi-strand stainless steel wire braid adds strength and helps protect the hose.

Blue Antimicrobial PVC Coating

Blue PVC coating is antimicrobial and designed not to hold a flame.

Double Swivel MAX End Fittings

360° rotation at both ends helps reduce connector stress and allows the appliance to sit closer to the wall.

SnapFast Quick-Disconnect with Thermal Shut-Off

One-handed quick-disconnect fitting automatically shuts off gas when internal temperature exceeds 350°F.

Moveable Equipment Compatibility

Designed for commercial moveable equipment; a restraining device is required for caster-mounted applications.

Type Moveable Gas Connector Hose Assembly
Style Double Swivel MAX / SnapFast
Material 304 Stainless Steel
Finish Blue Antimicrobial PVC Coating
Color Blue
Inside Diameter 1 Inch
Length 72 Inches
BTU 247,000 BTU/hr
Maximum Operating Pressure 1/2 PSI
Country of Origin USA
Shipping Weight 9.61 lb.
Selling Unit Each
Units Per Case 1

Warranty & Protection

Limited lifetime warranty.

Documents

PDF Cutsheet PDF Download

Frequently Asked Questions

The hose assembly includes the Dormont Blue Hose, Double Swivel MAX, and SnapFast.
SnapFast is a one-handed quick-disconnect fitting with thermal shut-off when internal temperature exceeds 350°F.
It provides 360° rotation at both ends, which helps reduce stress on the connector and improves appliance placement.
The document lists a 247,000 BTU/hr minimum flow capacity for the 72-inch, 1-inch I.D. configuration.
Yes. The document states that a restraining device is required for all moveable gas equipment, especially caster-mounted units.
The document states that it is for indoor use only and not for use in temperatures below 32°F (0°C).
