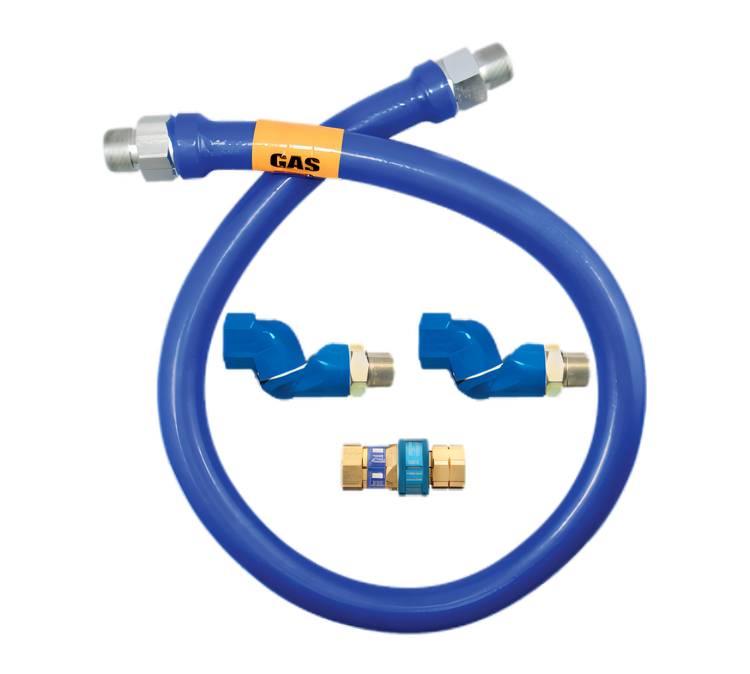

Dormont Blue Hose 1-Inch I.D. x 36-Inch Moveable Gas Connector Hose Assembly with SnapFast QD and Double Swivel MAX

Blue Antimicrobial PVC Coating, Stainless Steel Braid

Built for moveable commercial gas equipment, this 36-inch connector combines 360° swivel action and thermal-shutoff quick-disconnect safety in a flexible stainless steel assembly.

  • 1-inch inside diameter and 36-inch length for moveable gas appliance connections.
  • Double Swivel MAX fittings provide 360° movement and help reduce stress on the connector.
  • SnapFast one-handed quick-disconnect includes thermal shut-off protection above 350°F.
  • Annealed 304 stainless steel tubing with stainless steel wire braid and blue antimicrobial PVC coating.
  • Designed for indoor use only; not for temperatures below 32°F and max operating pressure is 1/2 psi.
  • Backed by a limited lifetime warranty.

Product Weight:

6.49 lb

Double Swivel MAX End Fittings

360° rotational fittings at both ends reduce connector stress and help allow equipment to sit closer to the wall.

SnapFast Quick-Disconnect

One-handed quick-disconnect fitting automatically shuts off gas when internal temperatures exceed 350°F.

304 Stainless Steel Tubing

Annealed 304 stainless steel tubing provides durable, flexible hose construction.

Stainless Steel Wire Braid

Multi-strand stainless steel wire braiding adds protection and flexibility.

Blue Antimicrobial PVC Coating

Protective blue coating melts at 350°F and will not hold a flame.

Moveable Equipment Compatibility

Designed for commercial gas appliances that are mounted on casters or otherwise subject to movement.

Safety Limits

For indoor use only, not for temperatures below 32°F, with a maximum operating pressure of 1/2 psi.

Type Moveable Gas Connector Hose Assembly
Style Double Swivel MAX / SnapFast Quick-Disconnect
Length 36 Inches
Inside Diameter 1 Inch
Material 304 Stainless Steel
Finish Blue Antimicrobial PVC
Max Operating Pressure 1/2 PSI
BTU 336,000 BTU/hr
Shipping Weight 6.49 lb.
Country of Origin USA
Selling Unit Each
Units Per Case 1

Warranty & Protection

Limited lifetime warranty.

Documents

PDF Cutsheet PDF Download

Frequently Asked Questions

It is 1 inch inside diameter and 36 inches long.
It provides one-handed quick disconnect operation and thermal shut-off if internal temperatures exceed 350°F.
Yes. The documentation states that a restraining device is required for all moveable gas equipment.
No. It is for indoor use only and should not be used in temperatures below 32°F.
It includes a limited lifetime warranty for the life of the original appliance to which it is connected.
