Dormont Manufacturing

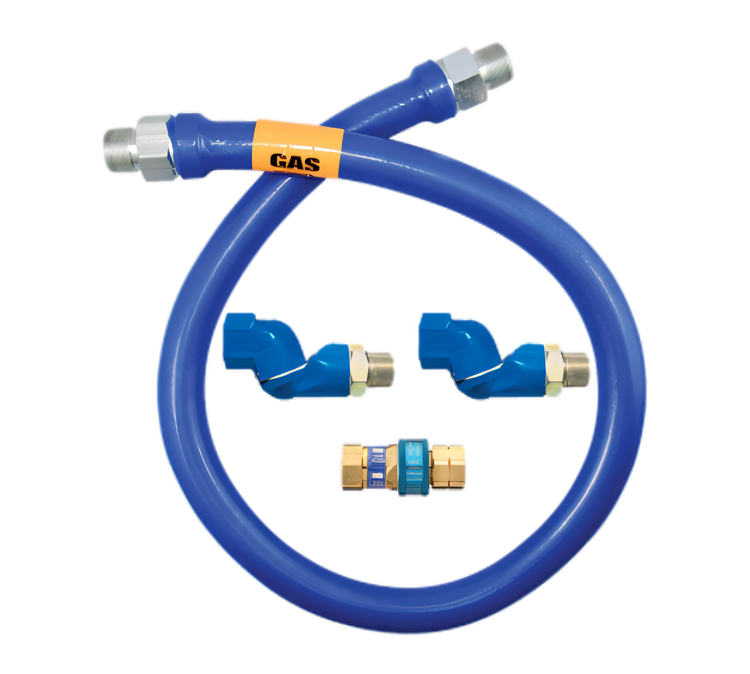

Dormont Blue Hose 1 Inch I.D. x 36 Inch Moveable Gas Connector Hose Assembly with Double Swivel MAX and SnapFast Quick-Disconnect

SKU: 16100BPQ2S36
GTIN: 662447015841
$577.01
/each
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers Dormont Manufacturing Gas Hose General Restaurant Equipment Parts New Arrivals Parts & Accessories Restaurant Equipment Restaurant Equipment Parts

Dormont Blue Hose 1 Inch I.D. x 36 Inch Moveable Gas Connector Hose Assembly with Double Swivel MAX and SnapFast Quick-Disconnect

Blue antimicrobial PVC-coated 304 stainless steel; 336,000 BTU/hr flow capacity

Built for moveable commercial appliances, this 36-inch gas connector combines 360° swivel action, a one-handed quick-disconnect, and high-flow performance.

  • 1 inch inside diameter and 36 inch length for moveable commercial gas equipment applications.
  • Double Swivel MAX fittings provide 360° rotational movement at both ends to reduce connector stress.
  • SnapFast one-handed quick-disconnect adds convenience and includes thermal shut-off protection.
  • Annealed 304 stainless steel tubing with stainless steel braid supports durable service.
  • Blue antimicrobial PVC coating adds an extra layer of protection and visibility.
  • Rated for 336,000 BTU/hr minimum flow capacity.
  • Limited lifetime warranty for the life of the original appliance connection.

Product Weight:

7.13 lb

Double Swivel MAX Fittings

360° rotational end fittings at both ends help reduce stress on the connector and allow appliances to sit closer to the wall.

SnapFast Quick-Disconnect

One-handed quick-disconnect fitting with automatic thermal shut-off when internal temperature exceeds 350°F.

304 Stainless Steel Construction

Annealed 304 stainless steel tubing with multi-strand stainless steel wire braid for durability.

Blue Antimicrobial PVC Coating

Blue PVC coating provides added protection and is designed to melt at 350°F without holding a flame.

High Flow Capacity

36 inch, 1 inch I.D. assembly rated for 336,000 BTU/hr natural gas flow capacity.

Designed for Moveable Equipment

Made for commercial gas appliances mounted on casters or otherwise subject to movement; a restraining device is required.

Limited Lifetime Warranty

Guaranteed for the life of the original appliance to which it is connected.

Type Moveable Gas Connector Hose Assembly
Style Double Swivel MAX / SnapFast
Inside Diameter 1 Inch
Length 36 Inches
Material 304 Stainless Steel
Color Blue
Finish Antimicrobial PVC Coated
BTU 336,000 BTU/hr
Shipping Weight 7.13 lb.
Selling Unit Each
Units Per Case 1
Country of Origin USA

Warranty & Protection

Limited lifetime warranty

Documents

PDF Cutsheet PDF Download

Frequently Asked Questions

This assembly has a 1 inch inside diameter and is 36 inches long.
The 36 inch, 1 inch I.D. model is rated at 336,000 BTU/hr natural gas flow capacity.
Yes. It includes a SnapFast one-handed quick-disconnect fitting with thermal shut-off at 350°F.
Yes. It is designed for commercial gas appliances mounted on casters or otherwise subject to movement, and a restraining device is required.
No. The document states it is for indoor use only and not for temperatures below 32°F (0°C).
It comes with a limited lifetime warranty for the life of the original appliance connected.
