Dormont Manufacturing

Dormont Blue Hose 1-Inch I.D. x 72-Inch Moveable Gas Connector Hose Assembly with Swivel MAX and Safety Quik

SKU: 16100BPCFS72
GTIN: 662447054918
$622.98
/each
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers Dormont Manufacturing Gas Hose New Arrivals Restaurant Equipment Restaurant Equipment Parts

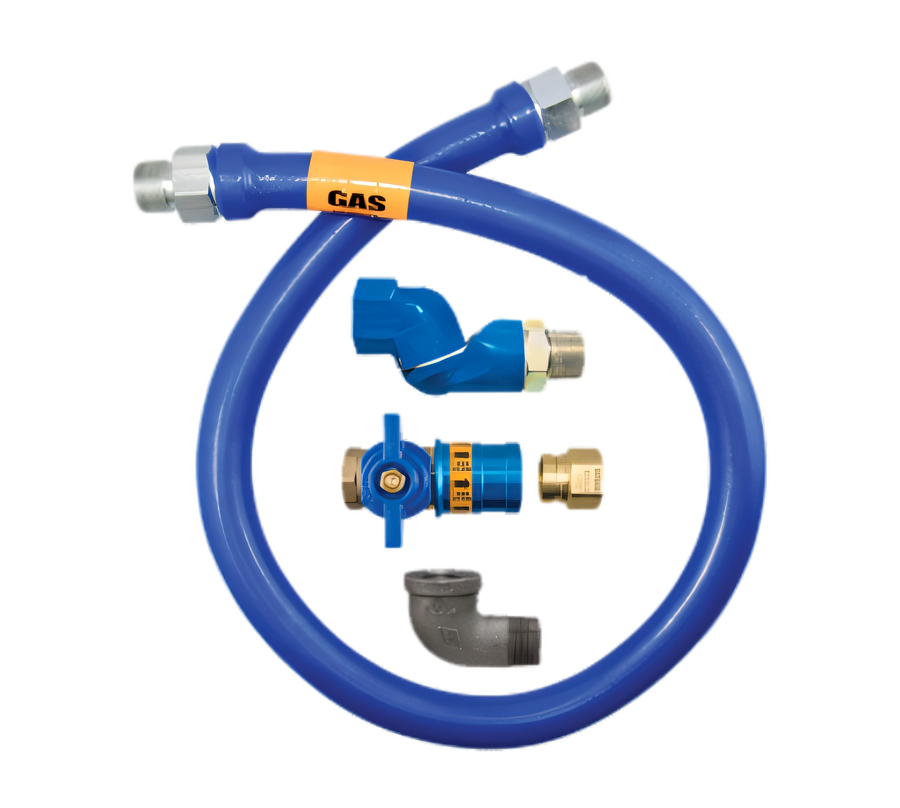

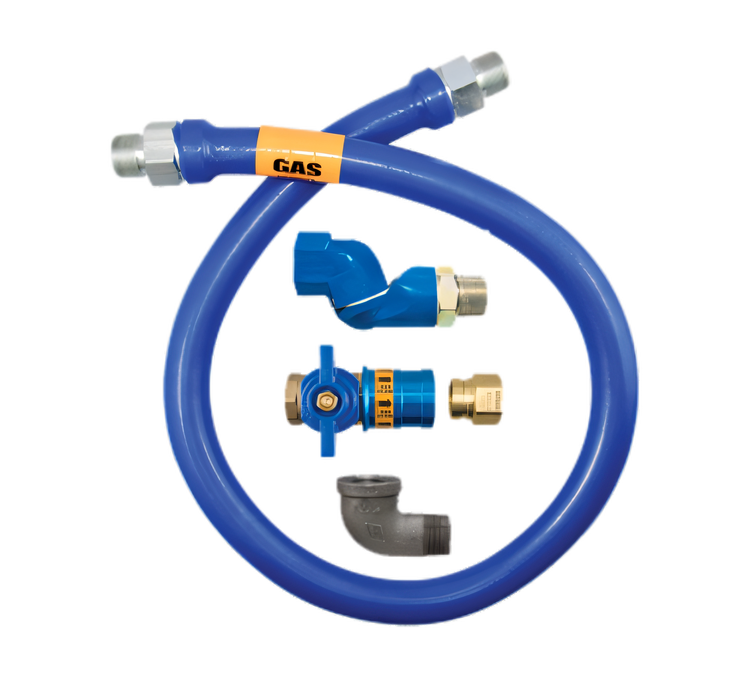

Dormont Blue Hose 1-Inch I.D. x 72-Inch Moveable Gas Connector Hose Assembly with Swivel MAX and Safety Quik

Blue Antimicrobial PVC-Coated Stainless Steel, 1 Inch I.D. x 72 Inches

Built for moveable commercial equipment, this high-capacity gas connector combines 360° swivel action, quick-disconnect safety, and durable stainless steel construction.

  • 1-inch I.D. x 72-inch commercial gas connector hose assembly for moveable equipment
  • Swivel MAX 360° end fittings help reduce connector stress and let appliances sit closer to the wall
  • Safety Quik quick-disconnect valve adds one-handed disconnect convenience and safety shutoff protection
  • Annealed 304 stainless steel tubing with stainless steel braid and blue antimicrobial PVC coating
  • Includes 1 Safety Quik QDV, 1 Swivel MAX, and 1 elbow
  • 260,000 BTU/hr minimum flow capacity with limited lifetime warranty

Product Weight:

9.32 lb

Moveable-Grade Design

Designed for commercial gas equipment that moves or is mounted on casters.

Swivel MAX 360° Rotation

360° rotational end fittings reduce connector stress and help equipment sit closer to the wall.

Safety Quik Quick-Disconnect Valve

Push-to-connect disconnect valve with a safety shutoff feature that helps prevent accidental gas flow.

Thermal Shut-Off Protection

Safety Quik shuts off gas flow within a 250°F to 300°F temperature range.

Stainless Steel Hose Construction

Annealed 304 stainless steel tubing with multi-strand stainless steel wire braid for durability.

Blue Antimicrobial PVC Coating

Protective blue coating melts at 350°F and will not hold a flame.

Included Components

Ships with 1 Safety Quik QDV, 1 Swivel MAX, and 1 elbow.

High Flow Capacity

Rated for 260,000 BTU/hr minimum flow capacity in the 1-inch by 72-inch configuration.

Operating Limits

For indoor use only, maximum operating pressure is 1/2 psi, and it is not for use below 32°F.

Type Gas Connector Hose Assembly
Style Moveable
Inside Diameter 1 Inch
Length 72 Inches
Material 304 Stainless Steel
Finish PVC Coated
Color Blue
BTU 260,000 BTU/hr
Country of Origin USA
Shipping Weight 9.32 lb.
Selling Unit Each
Units Per Case 1

Warranty & Protection

Limited lifetime warranty

Documents

PDF Cutsheet PDF Download

Frequently Asked Questions

It has a 1-inch inside diameter and is 72 inches long.
The 1-inch by 72-inch configuration has a minimum flow capacity of 260,000 BTU/hr.
It includes Swivel MAX 360° rotation, a Safety Quik quick-disconnect valve, and thermal shut-off protection that activates between 250°F and 300°F.
The hose uses annealed 304 stainless steel tubing with a stainless steel wire braid and a blue antimicrobial PVC coating.
Yes. The documentation states a restraining device is required for all moveable gas equipment.
It includes a limited lifetime warranty, and the connectors are guaranteed for the life of the original appliance to which they are connected.
