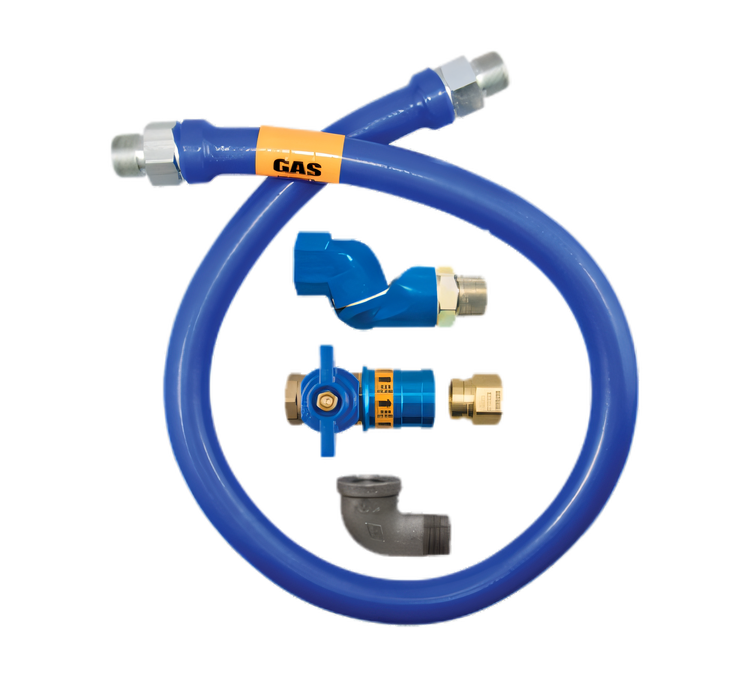

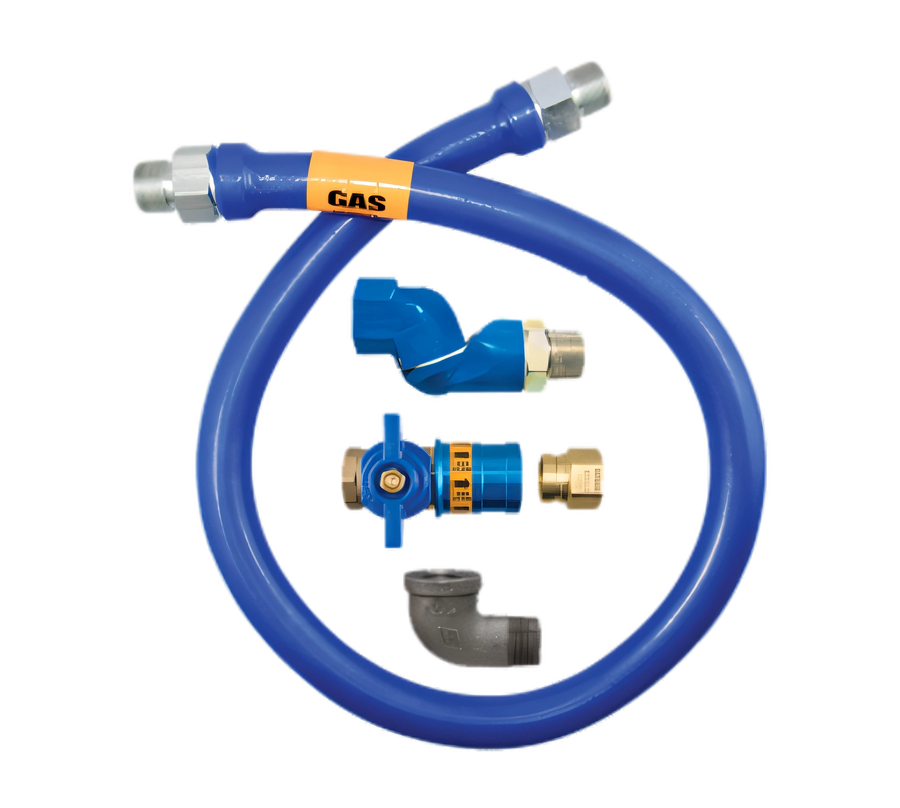

Dormont Blue Hose 1 Inch ID x 48 Inch Moveable Gas Connector Hose Assembly with Swivel MAX and Safety Quik Quick-Disconnect Valve

Blue antimicrobial PVC-coated stainless steel braid; 310,000 BTU/hr flow capacity

Built for moveable commercial gas equipment, this 48-inch hose assembly combines 360° swivel protection with Safety Quik shutoff safety for easier, safer appliance positioning.

  • 1-inch inside diameter and 48-inch length for moveable commercial gas appliances.
  • Swivel MAX 360° rotation helps reduce connector stress and allows tighter wall placement.
  • Safety Quik quick-disconnect valve provides one-handed disconnect protection and shuts off gas if the appliance is disconnected.
  • Stainless steel tubing and braid are protected by a blue antimicrobial PVC coating for durable everyday use.
  • Includes a 90° street elbow; made in the USA and backed by a limited lifetime warranty.

Product Weight:

10.01 lb

Swivel MAX 360° Rotational Fitting

Multi-plane fitting rotates 360° to reduce stress on the connector and help position equipment closer to the wall.

Safety Quik Quick-Disconnect Valve

Flat-face, push-to-connect valve provides one-handed quick disconnection and a safety shutoff that helps prevent gas from being turned on while disconnected.

Thermal Shut-Off Protection

Safety Quik shuts off gas flow within a temperature range of 250°F to 300°F.

Stainless Steel Hose Construction

Annealed 304 stainless steel tubing with multi-strand stainless steel wire braiding for commercial-duty durability.

Blue Antimicrobial PVC Coating

Blue coating adds antimicrobial protection, melts at 350°F, and will not hold a flame.

Stress Guard Rotational End Fittings

360° rotational end fittings at both ends help reduce stress and extend connector life.

Includes 90° Street Elbow

Assembly includes a 90-degree street elbow for installation flexibility.

Indoor-Use Moveable Gas Connector

Designed for indoor use on moveable gas equipment with a maximum operating pressure of 1/2 psi.

Type Moveable Gas Connector Hose Assembly
Style Swivel MAX / Safety Quik
Length 48 Inches
Inside Diameter 1 Inch
Material 304 Stainless Steel
Color Blue
Finish Blue Antimicrobial PVC Coating
BTU 310,000 BTU/hr
Country of Origin USA
Selling Unit Each
Units Per Case 1
Shipping Weight 10.01 Pounds

Warranty & Protection

Limited lifetime warranty

Documents

PDF Cutsheet PDF Download

Frequently Asked Questions

The hose assembly includes the Dormont Blue Hose tubing, Swivel MAX fitting, Safety Quik quick-disconnect valve, and a 90° street elbow. A restraining device is not included.
This model has a 1-inch inside diameter and is 48 inches long.
Safety Quik combines one-handed quick-disconnect functionality with a safety shutoff that helps prevent gas from being turned on when the appliance is disconnected.
For the 1-inch, 48-inch configuration, the natural gas flow capacity is 310,000 BTU/hr at a 0.5 inch WC pressure drop.
Yes. The document states that a restraining device is required for all moveable gas equipment.
No. The document specifies that it is for indoor use only.
