Dormont Blue Hose 1 Inch I.D. x 48 Inch Moveable Gas Connector Hose Assembly with Swivel MAX and Safety Quik

SKU: 16100BPCFS48
GTIN: 662447053027
$553.56
/each
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers Dormont Manufacturing Gas Hose General Restaurant Equipment Parts New Arrivals Parts & Accessories Restaurant Equipment Restaurant Equipment Parts

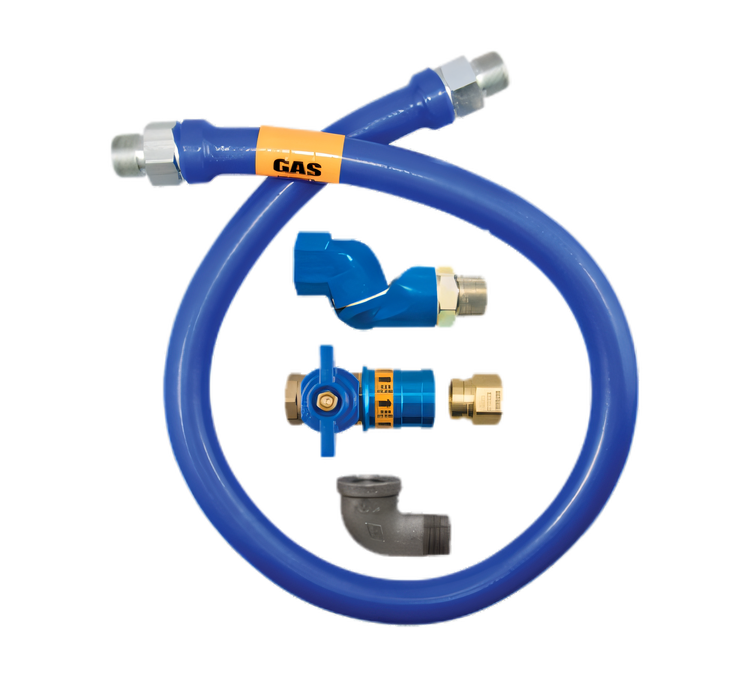

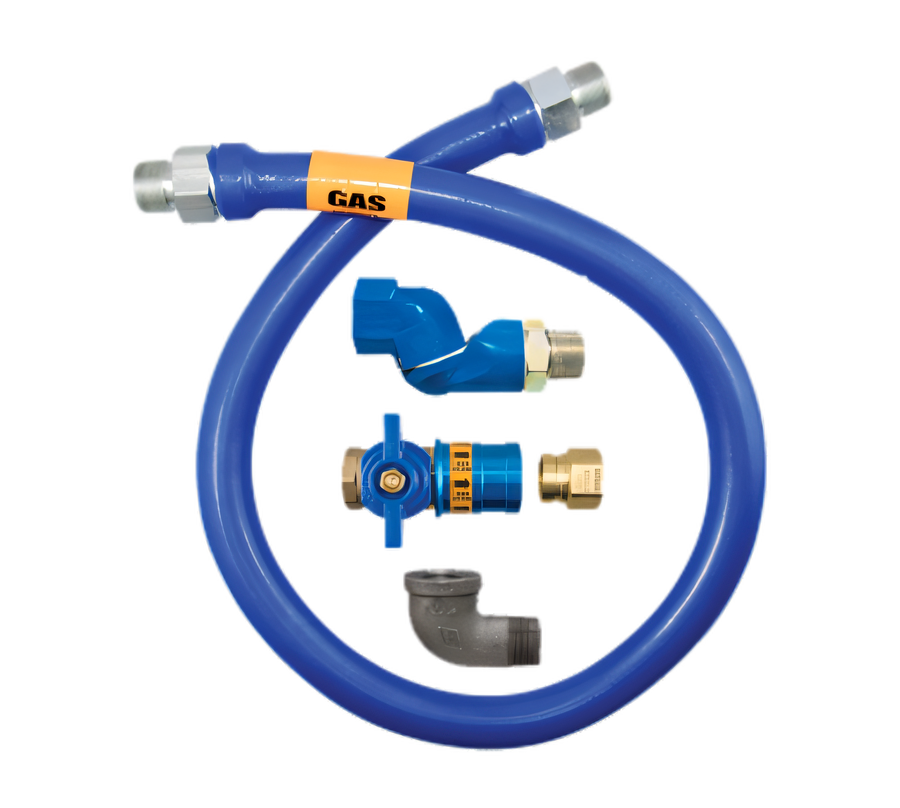

Dormont Blue Hose 1 Inch I.D. x 48 Inch Moveable Gas Connector Hose Assembly with Swivel MAX and Safety Quik

Blue antimicrobial PVC-coated stainless steel braid, 310,000 BTU/hr minimum flow capacity

Built for moveable commercial gas equipment, this 1-inch x 48-inch hose assembly combines 360° swivel movement and a safety shutoff valve to reduce stress and improve kitchen safety.

  • 1 inch inside diameter and 48 inch length for moveable commercial gas connector applications.
  • 310,000 BTU/hr minimum flow capacity for demanding natural gas installations.
  • Annealed 304 stainless steel tubing with multi-strand stainless steel braid for durability.
  • Blue antimicrobial PVC coating adds protection and will not hold a flame.
  • Swivel MAX 360° rotation helps reduce connector stress and allows appliances to sit closer to the wall.
  • Safety Quik quick-disconnect valve adds one-handed connection and safety shutoff; limited lifetime warranty included.

Product Weight:

7.67 lb

1 Inch I.D. x 48 Inch Length

Sized for commercial moveable gas equipment and standard connector applications.

310,000 BTU/hr Flow Capacity

High-capacity gas flow rating for natural gas applications.

304 Stainless Steel Construction

Annealed stainless steel tubing with multi-strand stainless steel wire braid for strength and flexibility.

Blue Antimicrobial PVC Coating

Protective blue coating helps resist flame spread and melts at 350°F (177°C) without holding a flame.

Swivel MAX 360° Rotation

Multi-plane rotational fitting reduces stress on the connector and helps save kitchen aisle space.

Safety Quik Quick-Disconnect Valve

Flat-face push-to-connect valve with a full-port brass ball valve and thermal shutoff for safer disconnects.

Restraining Device Required

Moveable gas equipment must use a restraining device to prevent strain on the connector.

Elbow Included

Assembly includes an elbow fitting for installation.

Type Gas Hose Assembly
Style Moveable
Inside Diameter 1 Inch
Length 48 Inches
Material Stainless Steel
Finish Blue Antimicrobial PVC
Color Blue
Flow Capacity 310,000 BTU/hr
Country of Origin USA
Selling Unit Each
Units Per Case 1

Warranty & Protection

Limited lifetime warranty.

Documents

PDF Cutsheet PDF Download

Frequently Asked Questions

This 1 inch I.D. x 48 inch hose assembly has a 310,000 BTU/hr minimum flow capacity.
It includes a Safety Quik quick-disconnect valve with thermal shutoff, plus a Swivel MAX fitting that reduces connector stress.
The hose uses annealed 304 stainless steel tubing with stainless steel wire braid and a blue antimicrobial PVC coating.
Yes. The documentation states that a restraining device is required for all moveable gas equipment.
Yes. The documentation specifies indoor use only and a maximum operating pressure of 1/2 psi.
