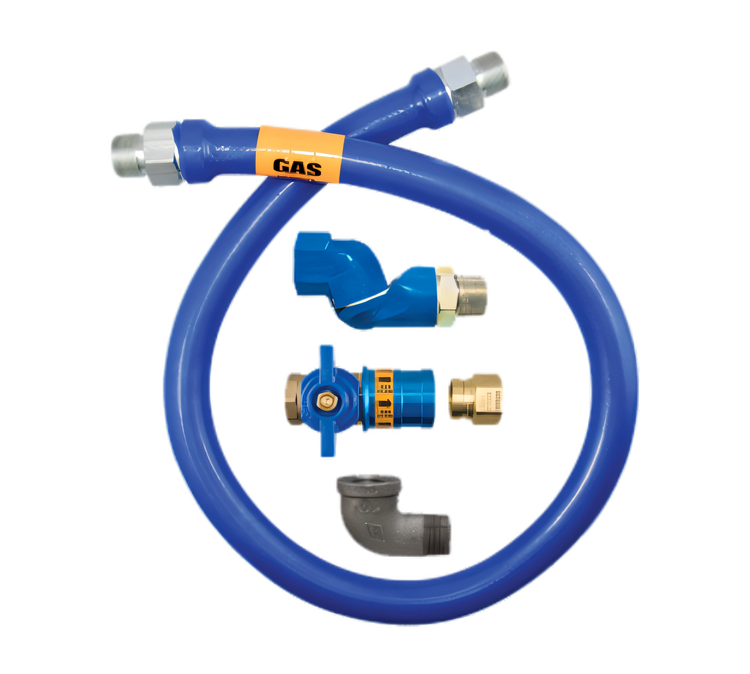

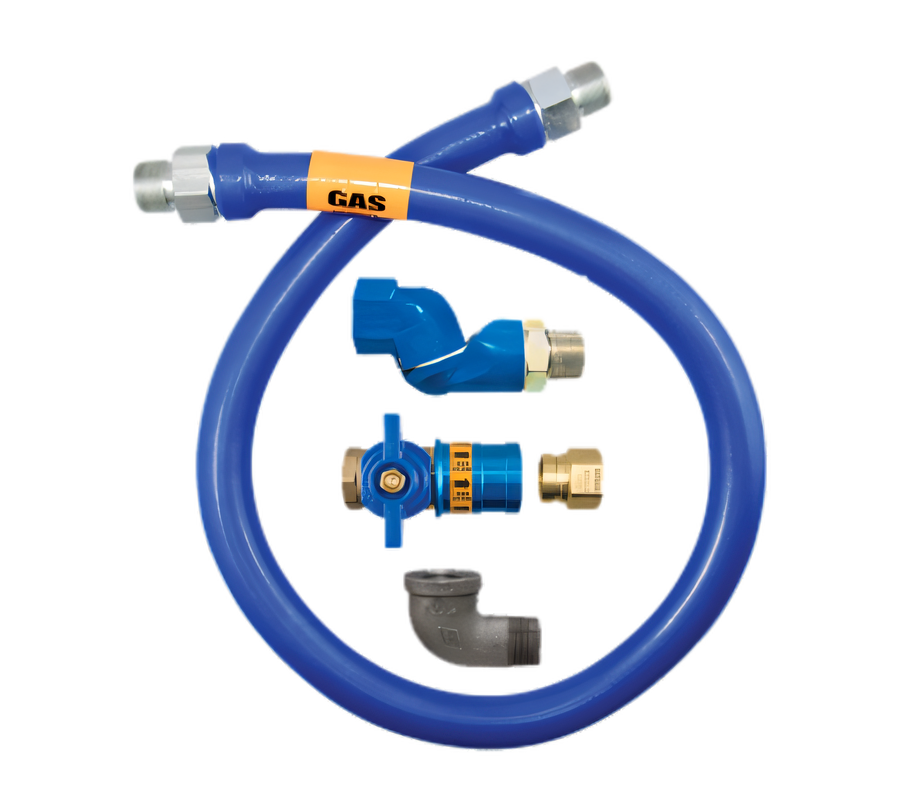

Dormont Blue Hose 1-Inch I.D. x 36-Inch Moveable Gas Connector Hose Assembly with Swivel MAX and Safety Quik Quick-Disconnect Valve

Blue Antimicrobial PVC Coating, Stainless Steel Braid, 353,000 BTU/hr Minimum Flow Capacity

Designed for moveable commercial gas equipment, this 1-inch x 36-inch hose assembly combines 360° swivel flexibility with a built-in safety quick-disconnect valve for safer, easier appliance positioning.

  • 1-inch inside diameter and 36-inch length sized for moveable gas appliances.
  • Swivel MAX fittings provide 360° rotational movement to reduce connector stress and improve appliance positioning.
  • Safety Quik quick-disconnect valve adds one-handed disconnect functionality and automatic safety shutoff.
  • Annealed 304 stainless steel tubing with stainless steel wire braid and blue antimicrobial PVC coating for durability.
  • 353,000 BTU/hr minimum flow capacity for natural gas applications.
  • Includes one elbow; restraining device required for moveable gas equipment.

Product Weight:

6.84 lb

Swivel MAX Rotational Fittings

Provides 360° movement at the end fitting to reduce stress on the connector and allow the appliance to sit closer to the wall.

Safety Quik Quick-Disconnect Valve

Flat-face push-to-connect valve with a full-port brass ball valve and thermal shutoff for added gas safety.

304 Stainless Steel Construction

Annealed 304 stainless steel tubing with multi-strand stainless steel wire braiding for strength and flexibility.

Blue Antimicrobial PVC Coating

Blue PVC coating adds protection and is designed not to hold a flame.

Stress Guard Rotation Technology

360° rotational end fitting at both ends helps reduce stress and extend connector life.

Included Elbow

Supplied with one elbow for installation convenience.

Indoor Moveable Equipment Use

Designed for commercial moveable gas equipment; a restraining device is required for caster-mounted applications.

Limited Lifetime Warranty

Covered for the life of the original appliance to which it is connected.

Type Moveable Gas Connector Hose Assembly
Style Swivel MAX / Safety Quik
Length 36 Inches
Inside Diameter 1 Inch
BTU 353,000 BTU/hr
Gas Type Natural Gas
Material Stainless Steel
Finish Blue Antimicrobial PVC
Color Blue
Country of Origin USA
Shipping Weight 6.84 lb.
Selling Unit Each
Units Per Case 1

Warranty & Protection

Limited lifetime warranty

Documents

PDF Cutsheet PDF Download

Frequently Asked Questions

It is designed for commercial moveable gas equipment that may be mounted on casters or otherwise subject to movement.
The 1-inch I.D. x 36-inch assembly is rated at 353,000 BTU/hr minimum flow capacity.
It includes the Safety Quik quick-disconnect valve, which provides one-handed quick disconnect functionality and a thermal shutoff feature.
The hose uses annealed 304 stainless steel tubing, stainless steel wire braiding, and a blue antimicrobial PVC coating.
Yes. The documentation states that a restraining device is required for all moveable gas equipment.
The documentation states that it is for indoor use only.
