Dormont Manufacturing

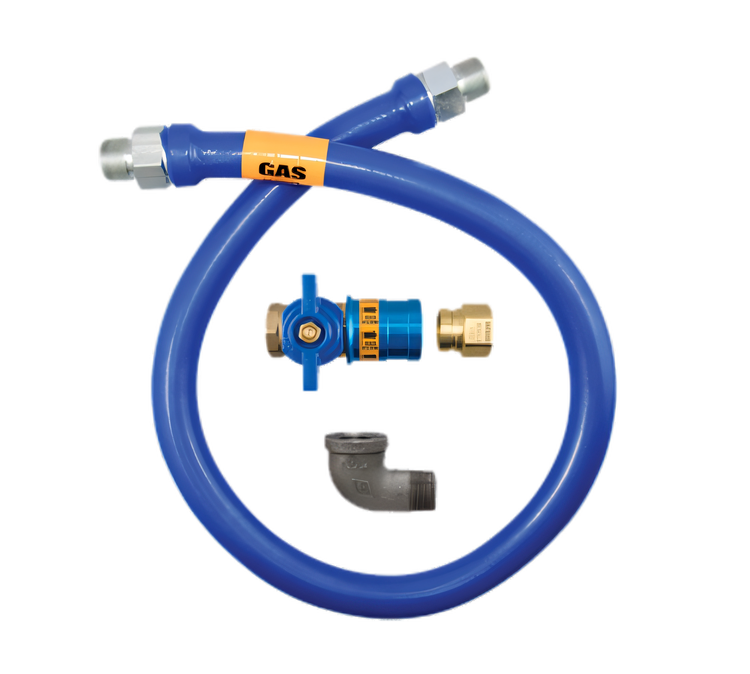

Dormont Blue Hose 1 Inch I.D. x 48 Inch Moveable Gas Connector Hose Assembly with Safety Quik Quick-Disconnect Valve

SKU: 16100BPCF48BX
$410.21
/each
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers Dormont Manufacturing Gas Hose General Restaurant Equipment Parts New Arrivals Parts & Accessories Restaurant Equipment Restaurant Equipment Parts

Dormont Blue Hose 1 Inch I.D. x 48 Inch Moveable Gas Connector Hose Assembly with Safety Quik Quick-Disconnect Valve

Stainless Steel Braid, Blue Antimicrobial PVC Coating, Retail Box

Built for moveable commercial gas equipment, this 48-inch Dormont Blue Hose assembly combines a Safety Quik quick-disconnect valve, stainless steel braid, and antimicrobial blue PVC coating for safer, flexible hookups.

  • 1-inch inside diameter, 48-inch long moveable-grade gas connector hose assembly
  • Safety Quik valve adds quick-disconnect protection and helps prevent accidental gas flow
  • 304 stainless steel tubing with multi-strand stainless steel wire braid for durability
  • Blue antimicrobial PVC coating helps protect the hose and will not hold a flame
  • Includes one Safety Quik QD and one 90° street elbow; packaged in a retail box
  • For indoor use only; maximum operating pressure is 1/2 psi
  • Limited lifetime gas connector warranty

Product Weight:

7.34 lb

Safety Quik Quick-Disconnect Valve

One-handed flat-face push-to-connect valve with a brass body and full-port brass ball valve; helps prevent the gas from being turned on when the appliance is disconnected and prevents disconnecting while gas is flowing.

Thermal Shut-Off Protection

Thermal shut-off stops gas flow within a 250°F to 300°F temperature range.

304 Stainless Steel Hose Construction

Annealed 304 stainless steel tubing with multi-strand stainless steel wire braid provides flexibility and durability.

Blue Antimicrobial PVC Coating

Blue antimicrobial PVC coating helps protect the hose, melts at 350°F, and will not hold a flame.

Stress Guard Rotation Technology

360° rotational end fittings at both ends reduce stress on the hose connection points.

Included Components

Hose assembly includes one Safety Quik QD and one 90° street elbow; packaged in a retail box.

Moveable Equipment Use

Designed for moveable commercial gas equipment; a restraining device is required for all moveable gas equipment.

Operating Limits

For indoor use only, not for use in temperatures less than 32°F, and maximum operating pressure is 1/2 psi.

Type Gas Connector Hose Assembly
Style Braided
Material Stainless Steel
Color Blue
Inside Diameter 1 Inch
Length 48 Inches
BTU 334,000 BTU/hr
Gas Type Natural Gas
Country of Origin USA
Selling Unit Each
Units Per Case 1

Warranty & Protection

Limited lifetime warranty

Documents

PDF Cutsheet PDF Download

Frequently Asked Questions

It includes the Dormont Blue Hose, one Safety Quik QD, and one 90° street elbow, and it is packaged in a retail box.
It provides quick-disconnect protection and helps prevent the gas from being turned on while the appliance is disconnected or disconnecting while gas is flowing.
The thermal shut-off operates in the 250°F to 300°F range, the hose is for indoor use only, and the maximum operating pressure is 1/2 psi.
Yes. A restraining device is required for all moveable gas equipment.
No. The documentation states that it is for indoor use only.
