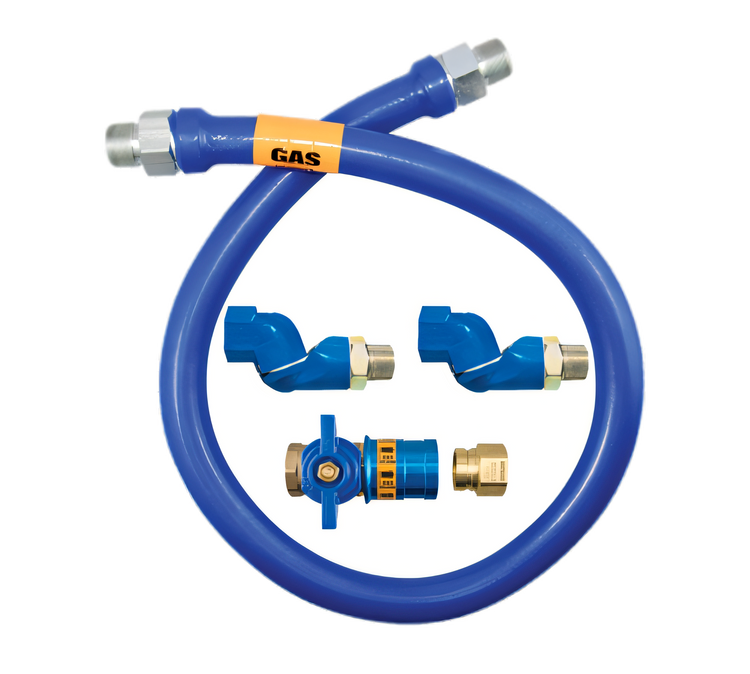

Dormont Blue Hose 1-Inch ID 72-Inch Moveable Gas Connector Hose Assembly with Safety Quik Quick-Disconnect Valve

Double Swivel MAX, Stainless Steel Braid, Blue Antimicrobial PVC Coating, 247,000 BTU/hr Minimum Flow Capacity

Built for demanding commercial kitchens, this 72-inch moveable gas connector combines 360-degree swivel flexibility, quick-disconnect safety, and durable stainless steel construction.

  • 1-inch inside diameter and 72-inch hose length for commercial moveable gas equipment.
  • Double Swivel MAX fittings provide 360-degree movement and help reduce connector stress.
  • Safety Quik quick-disconnect valve adds one-handed disconnect convenience and thermal shutoff protection.
  • Stainless steel tubing and braid are covered with blue antimicrobial PVC for added durability and visibility.
  • Rated for 247,000 BTU/hr minimum flow capacity at 0.5 inch WC pressure drop.
  • Made in the USA and backed by a limited lifetime warranty.

Product Weight:

9.96 lb

Double Swivel MAX Movement

360-degree rotational end fittings at both ends help reduce stress on the connector and allow appliances to be positioned closer to the wall.

Safety Quik Quick-Disconnect Valve

Flat-face, push-to-connect brass valve provides quick disconnect functionality with added gas safety protection.

Thermal Shut-Off Protection

The valve shuts off gas flow within a 250°F to 300°F temperature range.

304 Stainless Steel Construction

Annealed stainless steel tubing with multi-strand stainless steel wire braid is built for commercial use.

Blue Antimicrobial PVC Coating

Blue coating improves visibility and is designed to melt at 350°F without holding a flame.

High Flow Capacity

Minimum flow capacity is rated at 247,000 BTU/hr for the 1-inch by 72-inch assembly.

Limited Lifetime Warranty

Dormont guarantees the connector for the life of the original appliance to which it is connected.

Type Moveable Gas Connector Hose Assembly
Style Double Swivel
Inside Diameter 1 Inch
Hose Length 72 Inches
BTU 247,000 BTU/hr
Material 304 Stainless Steel
Color Blue
Finish Blue Antimicrobial PVC Coating
Maximum Operating Pressure 0.5 psi
Country of Origin USA
Selling Unit Each
Units Per Case 1
Shipping Weight 9.96 lb.

Warranty & Protection

Limited lifetime warranty

Documents

PDF Cutsheet PDF Download

Frequently Asked Questions

It includes The Dormont Blue Hose, Double Swivel MAX fittings, and a Safety Quik quick-disconnect valve.
This assembly has a 1-inch inside diameter and is 72 inches long.
The 1-inch by 72-inch assembly is rated at 247,000 BTU/hr minimum flow capacity for natural gas at a 0.5 inch WC pressure drop.
Yes. The Safety Quik valve shuts off gas flow within a 250°F to 300°F thermal range.
No. A restraining device is required for all moveable gas equipment, and it is included with Deluxe Kit assemblies rather than this hose assembly.
No. The documentation states it is for indoor use only and not for use in temperatures below 32°F.
