Dormont Manufacturing

Dormont Blue Hose 1 Inch I.D. x 60 Inch Moveable Gas Connector Hose Assembly with Double Swivel MAX and Safety Quik

SKU: 16100BPCF2S60
GTIN: 662447055014
$743.80
/each
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers Dormont Manufacturing Gas Hose General Restaurant Equipment Parts New Arrivals Parts & Accessories Restaurant Equipment Restaurant Equipment Parts

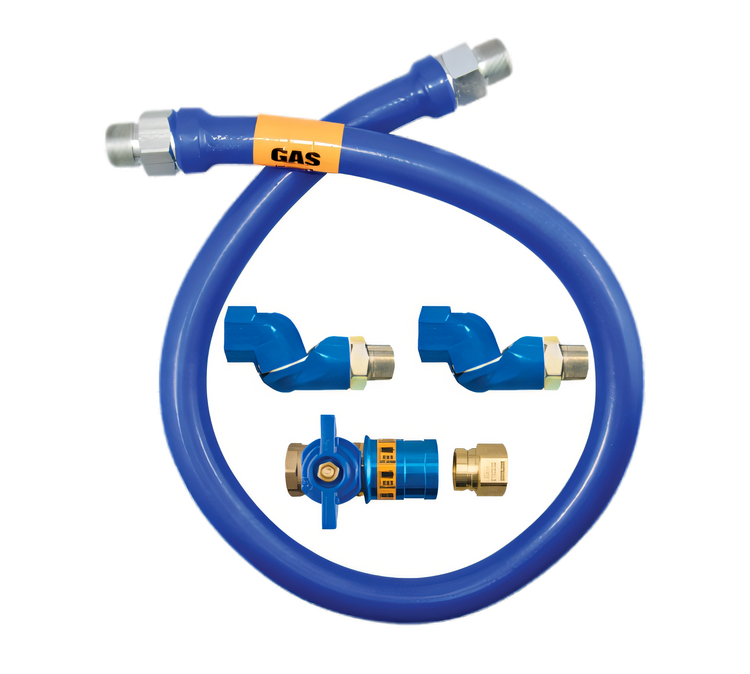

Dormont Blue Hose 1 Inch I.D. x 60 Inch Moveable Gas Connector Hose Assembly with Double Swivel MAX and Safety Quik

Blue Antimicrobial PVC-Coated Stainless Steel, 261,000 BTU/hr Natural Gas Capacity

A flexible, moveable-grade gas connector hose that adds 360° swivel motion and a built-in safety shutoff for safer, easier appliance positioning.

  • 1 inch inside diameter and 60 inch length for moveable commercial gas equipment.
  • Double Swivel MAX fittings provide 360° movement at both ends to reduce connector stress.
  • Safety Quik quick-disconnect valve adds one-handed disconnect capability and thermal shut-off protection.
  • Annealed 304 stainless steel tubing with stainless steel braid and blue antimicrobial PVC coating.
  • Rated for 261,000 BTU/hr natural gas flow capacity at a 60 inch length.
  • Designed for indoor use only; a restraining device is required for moveable gas equipment.

Product Weight:

9.08 lb

360° Swivel Movement

Swivel MAX fittings rotate at both ends to reduce strain on the connector and help position equipment closer to the wall.

Safety Quik Quick-Disconnect Valve

Provides one-handed quick-disconnect functionality with a safety shut-off to help prevent accidental gas flow when disconnected.

Stainless Steel Hose Construction

Annealed 304 stainless steel tubing with multi-strand stainless steel wire braiding delivers flexible, durable performance.

Blue Antimicrobial PVC Coating

Blue PVC coating adds antimicrobial protection, will not hold a flame, and melts at 350°F.

High Flow Capacity

1 inch model is rated for 261,000 BTU/hr natural gas flow capacity at 0.5 inch W.C. pressure drop.

Indoor Use Only

Documented for indoor use only and not for use in temperatures below 32°F.

Restraining Device Required

A restraining device is required for all moveable gas equipment; Deluxe Kit versions include one.

Type Moveable Gas Connector Hose Assembly
Style Double Swivel MAX
Length 60 Inches
Inside Diameter 1 Inch
Material 304 Stainless Steel
Finish Blue Antimicrobial PVC Coating
BTU 261,000 BTU/hr
Gas Type Natural Gas
Country of Origin USA
Shipping Weight 9.08 Pounds
Selling Unit Each
Units Per Case 1

Warranty & Protection

Limited lifetime warranty

Documents

PDF Cutsheet PDF Download

Frequently Asked Questions

This hose assembly includes the Dormont Blue Hose, Double Swivel MAX fittings, and the Safety Quik quick-disconnect valve.
The 1 inch x 60 inch model is rated at 261,000 BTU/hr natural gas flow capacity at 0.5 inch W.C. pressure drop.
No. The hose assembly does not include a restraining device; the document states that a restraining device is required for moveable gas equipment.
The hose uses annealed 304 stainless steel tubing with multi-strand stainless steel wire braiding and a blue antimicrobial PVC coating.
Yes. The document states that it is for indoor use only and not for use in temperatures below 32°F.
It carries a limited lifetime warranty, with coverage for the life of the original appliance to which it is connected.
