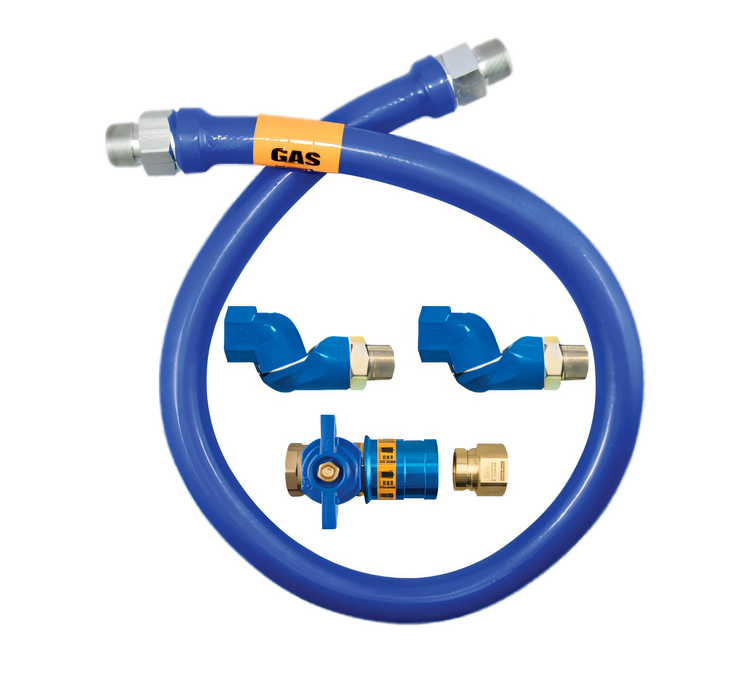

Dormont Blue Hose 1-Inch I.D. x 48-Inch Double Swivel MAX/Safety Quik Moveable Gas Connector Hose Assembly

SKU: 16100BPCF2S48
GTIN: 662447051023
$697.81
/each
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers Dormont Manufacturing Gas Hose General Restaurant Equipment Parts New Arrivals Parts & Accessories Restaurant Equipment Restaurant Equipment Parts

Dormont Blue Hose 1-Inch I.D. x 48-Inch Double Swivel MAX/Safety Quik Moveable Gas Connector Hose Assembly

Stainless Steel Braid, Blue Antimicrobial PVC Coating, 295,000 BTU/hr Minimum Flow Capacity

Built for commercial moveable equipment, this gas connector hose combines 360° swivel flexibility with a Safety Quik quick-disconnect valve for safer appliance positioning and shutdown.

  • 1-inch inside diameter and 48-inch length for commercial moveable gas equipment applications.
  • Double Swivel MAX fittings provide 360° rotational movement at both ends to reduce hose stress.
  • Safety Quik quick-disconnect valve adds one-handed disconnect convenience and safety shutoff protection.
  • 304 stainless steel tubing and stainless steel braid are protected by a blue antimicrobial PVC coating.
  • Rated for 295,000 BTU/hr minimum natural gas flow capacity at a 0.5-inch WC pressure drop.
  • Limited lifetime warranty and manufactured in the USA.

Product Weight:

8.31 lb

Double Swivel MAX Rotation

360° rotational end fittings at both ends help reduce connector stress and let appliances be positioned closer to the wall.

Safety Quik Quick-Disconnect Valve

Flat-face, push-to-connect brass quick-disconnect design helps prevent gas flow when the appliance is disconnected and includes thermal shutoff protection.

304 Stainless Steel Hose Construction

Annealed 304 stainless steel tubing with multi-strand stainless steel wire braid provides durable commercial-grade construction.

Blue Antimicrobial PVC Coating

The blue antimicrobial PVC coating helps protect the hose, will not hold a flame, and is designed to melt at 350°F.

High Flow Capacity

Supports a minimum natural gas flow capacity of 295,000 BTU/hr at a 0.5-inch WC pressure drop.

Moveable Equipment Use

Designed for commercial moveable gas equipment; a restraining device is required for all moveable gas equipment.

Type Moveable Gas Connector Hose Assembly
Style Double Swivel
Inside Diameter 1 Inch
Length 48 Inches
Material 304 Stainless Steel
Finish Blue Antimicrobial PVC
BTU 295,000 BTU/hr
Gas Type Natural Gas
Country of Origin USA
Shipping Weight 8.31 Pounds
Selling Unit Each
Units Per Case 1

Warranty & Protection

Limited lifetime warranty

Documents

PDF Cutsheet PDF Download

Frequently Asked Questions

This model is 1 inch inside diameter and 48 inches long.
It includes a Safety Quik quick-disconnect valve with one-handed push-to-connect operation and thermal shutoff protection.
Yes. The documentation states that a restraining device is required for all moveable gas equipment.
This 1-inch hose assembly has a minimum natural gas flow capacity of 295,000 BTU/hr at a 0.5-inch WC pressure drop.
It is for indoor use only, should not be used at temperatures below 32°F, and has a maximum operating pressure of 1/2 psi.
It carries a limited lifetime warranty and is guaranteed for the life of the original appliance to which it is connected.
