Dormont Manufacturing

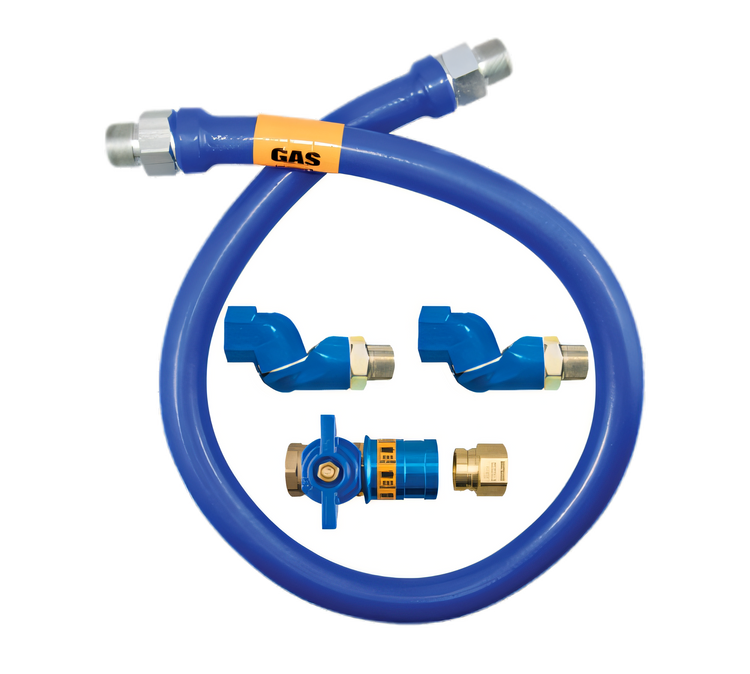

Dormont Blue Hose 1 Inch I.D. x 36 Inch Moveable Gas Connector Hose Assembly with Safety Quik and Double Swivel MAX

SKU: 16100BPCF2S36
GTIN: 662447055007
$661.74
/each
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers Dormont Manufacturing Gas Hose General Restaurant Equipment Parts New Arrivals Parts & Accessories Restaurant Equipment Restaurant Equipment Parts

Dormont Blue Hose 1 Inch I.D. x 36 Inch Moveable Gas Connector Hose Assembly with Safety Quik and Double Swivel MAX

Stainless steel braid with blue antimicrobial PVC coating; 336,000 BTU/hr minimum natural gas flow capacity

Built for moveable commercial gas equipment, this 36-inch hose combines 360° swivel flexibility with a safety quick-disconnect valve and durable stainless steel construction.

  • 1-inch inside diameter and 36-inch length fit a wide range of moveable commercial gas applications.
  • Safety Quik quick-disconnect valve helps prevent accidental gas flow when the appliance is disconnected.
  • Double Swivel MAX fittings provide 360° rotational movement at both ends for easier positioning.
  • Annealed stainless steel tubing with stainless steel braid is protected by a blue antimicrobial PVC coating.
  • 336,000 BTU/hr minimum flow capacity supports demanding natural gas applications.
  • A restraining device is required for all moveable gas equipment.

Product Weight:

7.48 lb

Safety Quik Quick-Disconnect Valve

Flat-face, push-to-connect valve with brass body and thermal shutoff for added safety when the appliance is disconnected.

Double Swivel MAX Ends

360° rotational end fittings help reduce stress on the connector and allow closer wall placement.

Stainless Steel Construction

Annealed 304 stainless steel tubing with stainless steel wire braid for durable gas service.

Blue Antimicrobial PVC Coating

Protective blue coating helps resist flame holding and melts at 350°F.

High Flow Capacity

Rated at 336,000 BTU/hr minimum flow capacity for natural gas applications.

Restraining Device Required

Moveable gas equipment must be installed with a restraining device to prevent strain transfer to the connector.

Indoor Use Only

Not for use in temperatures below 32°F.

Made in the USA

Manufactured in the USA under an ISO qualified production process.

Type Moveable Gas Connector Hose Assembly
Style Double Swivel
Length 36 Inches
Inside Diameter 1 Inch
Material Stainless Steel
Finish Blue Antimicrobial PVC Coating
BTU 336,000 BTU/hr
Shipping Weight 7.48 lb.
Country of Origin USA
Selling Unit Each
Units Per Case 1

Warranty & Protection

Limited lifetime warranty

Documents

PDF Cutsheet PDF Download

Frequently Asked Questions

It has a 1-inch inside diameter and is 36 inches long.
The hose assembly has a minimum natural gas flow capacity of 336,000 BTU/hr.
Yes. It includes one Safety Quik quick-disconnect valve.
It has two Swivel MAX fittings, one at each end, for 360° movement.
Yes. The documentation states that a restraining device is required for all moveable gas equipment.
Yes. The documentation states it is for indoor use only and not for use in temperatures below 32°F.
