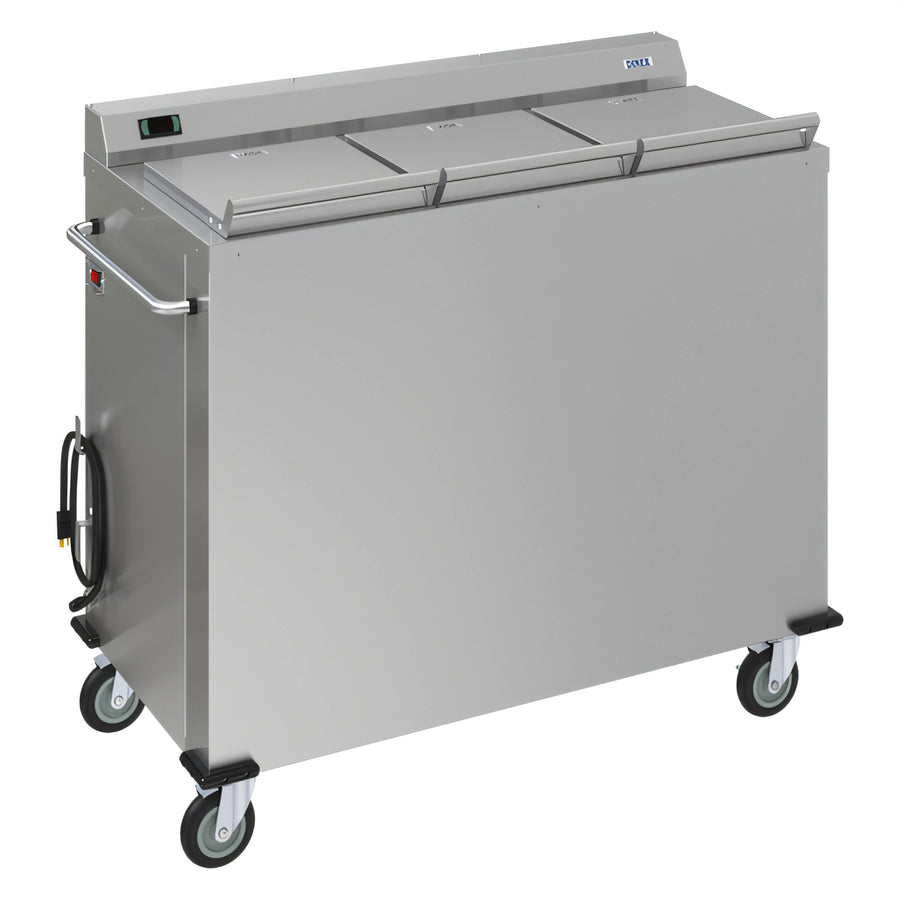

Dinex DXPSBH3P Colossus Mobile Heated Plate Dispenser with 3 Self-Leveling Cylinders

Full-Size, Round Plates, Dual Voltage

Efficiently serve hot meals with the Dinex Colossus DXPSBH3P, a robust mobile heated plate dispenser designed for high-volume tray makeup systems.

  • Equipped with three self-leveling, adjustable cylinders for easy and continuous plate access.
  • Accommodates up to 75 (10-1/4" dia.) china plates per silo, with a total capacity of 225 plates.
  • Thermostatically controlled forced air convection heating system maintains plates at a consistent 180°F.
  • Constructed from heavy-duty 304 high nickel 18-8 stainless steel for maximum durability and sanitation.
  • Mobile design with four 5" swivel plate casters (two with brakes) and a push handle for effortless transport.
  • Features dual voltage operation (208V or 240V) for flexible electrical installation.

Overall Dimensions:

50.21"W x 24.75"D x 43.0"H

Product Weight:

425.0 lb

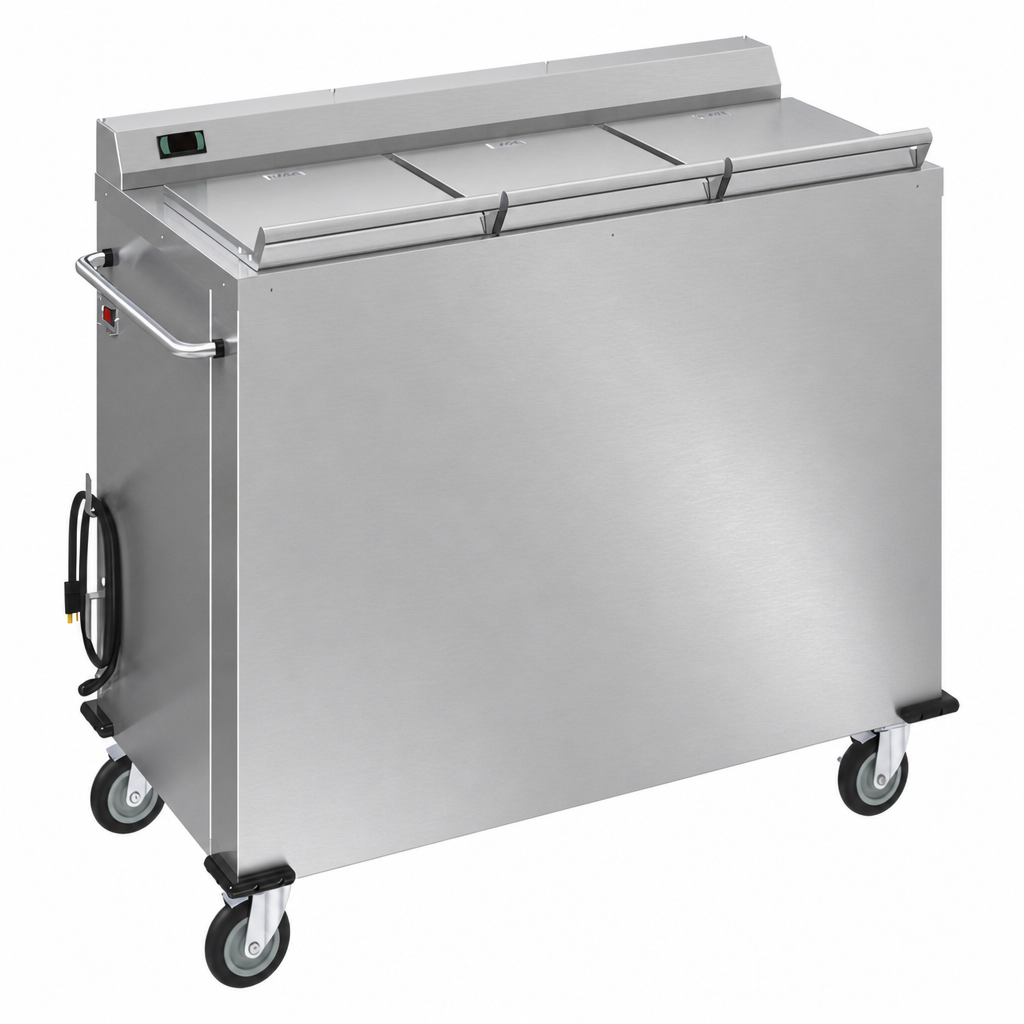

Heavy-Duty Stainless Steel Construction

The exterior is constructed of 304 high nickel 18-8 stainless steel, with an 18-gauge frame and panels, and a 14-gauge base, ensuring long-lasting durability in commercial environments.

Heavy-Duty Stainless Steel Construction

Convection Heating System

A forced air convection design circulates thermostatically controlled superheated air evenly throughout the fully insulated cabinet, ensuring rapid and efficient heating of plates.

Self-Leveling Dispensing

Three field-adjustable spring dispensing mechanisms provide easy access to plates, keeping them at a convenient serving height as they are removed.

Adjustable Digital Thermostat

Allows for precise control of internal temperature, making the unit compatible for various heat retention applications.

Insulated Lids with Soft-Close Hinges

The fully insulated lids are constructed from 20-gauge stainless steel with a gasketless design to maintain heat, and feature soft-close hinges for quiet and safe operation.

Mobile Design

Equipped with four 5" polyurethane non-marking swivel casters (two with brakes) and corner bumpers, facilitating easy movement and protection in busy kitchen or serving areas.

Enclosed Base

The enclosed base provides a clean aesthetic and protects internal components.

Type Heated Plate Dispenser
Style Mobile
Installation Type Floor Model (With Casters)
Compartments 3
Pan Capacity 75 10-1/4" dia. plates Per Cylinder (225 Total)
Plate Diameter 10-1/4 Inches
Controls Adjustable Digital Thermostat, Thermostatic
Temperature Range Maintains 180°F
Heating Time 75 - 90 minutes
Material 304 Stainless Steel
Caster Size 5 Inches
Voltage 208/240 Volts
Phase 1-Phase
Hertz 60 Hz
Watts 4800 Watts
Amps 23 Amps (at 208V), 20 Amps (at 240V)
Plug Type NEMA 6-30P
Shipping Width 51 Inches
Shipping Depth 25 Inches
Shipping Height 43 Inches
Shipping Weight 425 lb.
Selling Unit Each
Units Per Case 1
Country of Origin USA

Warranty & Protection

1-year parts and labor warranty

Documents

PDF Cutsheet PDF Download PDF Catalog page PDF Download PDF Catalog page PDF Download

Frequently Asked Questions

The DXPSBH3P dispenser is equipped with three self-leveling cylinders, each accommodating 75 (10-1/4" diameter) china plates, for a total capacity of 225 plates.
The exterior of the plate dispenser is constructed from heavy-duty 304 high nickel 18-8 stainless steel, ensuring durability and compliance with sanitation standards.
Plates can be fully heated in approximately 75 to 90 minutes. Initial heat-up for a fully loaded unit is about 2 hours or less.
Yes, this model is a mobile unit featuring four 5" polyurethane non-marking swivel casters, two of which have brakes, and includes a push handle for easy maneuverability.
The thermostatic controls are designed to maintain plates at a consistent temperature of 180°F.
The DXPSBH3P is a dual voltage unit operating at 208V (23 Amps) or 240V (20 Amps) with 4800 Watts. It requires a 1-Phase, 60 Hz electrical connection and comes with a NEMA 6-30P plug.
