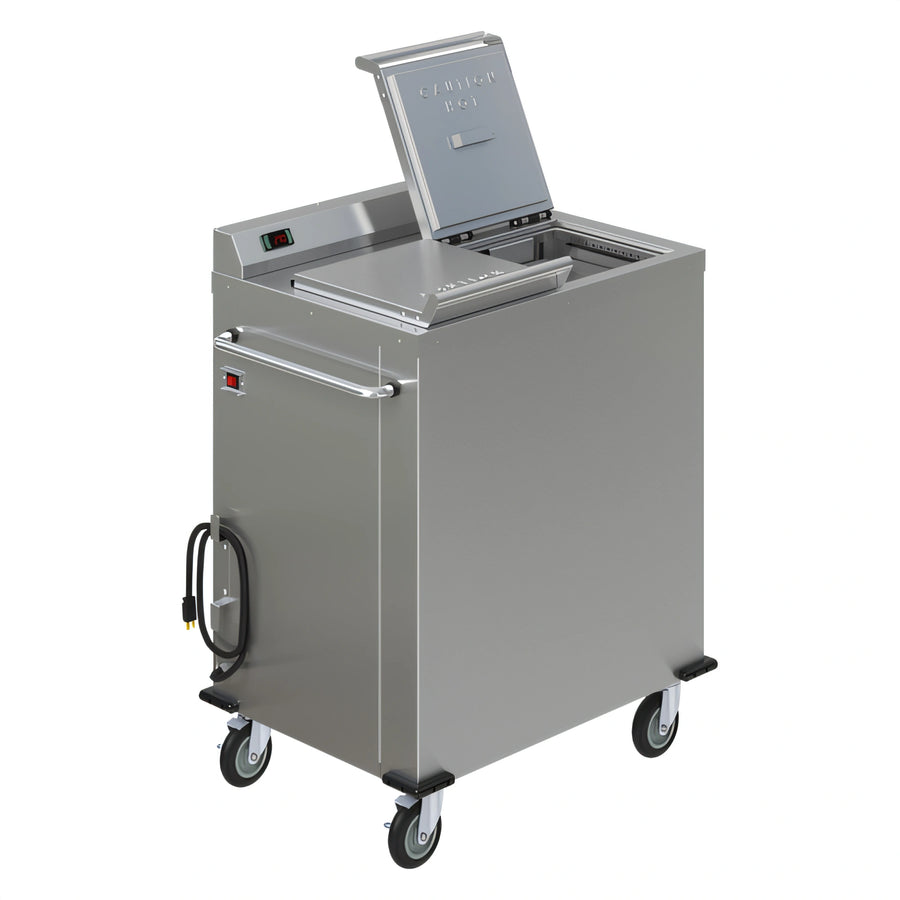

Dinex Colossus Mobile Convection Wax Base Heater/Dispenser, 2-Silo, 9-Inch Base Capacity

Mobile, Heated, Dual Voltage, Full-Size

Efficiently heat and dispense up to 120 wax bases with this heavy-duty, mobile convection heater, designed for high-volume tray make-up systems.

  • Heats and dispenses up to 120 (9-inch) wax bases across two self-leveling silos.
  • Utilizes forced air convection heating for rapid and even temperature maintenance up to 300°F.
  • Heavy-duty 304 stainless steel construction ensures durability and longevity in commercial environments.
  • Mobile design with 5-inch swivel casters (2 with brakes) and corner bumpers for easy transport and protection.
  • Features an adjustable digital thermostat and thermostatic controls for precise temperature management.
  • Dual voltage capabilities (208V or 240V) provide flexibility for various electrical setups.
  • Made in the USA, ensuring quality and compliance with NSF/ANSI Standard 2.

Overall Dimensions:

35.28"W x 24.75"D x 43.0"H

Product Weight:

300.0 lb

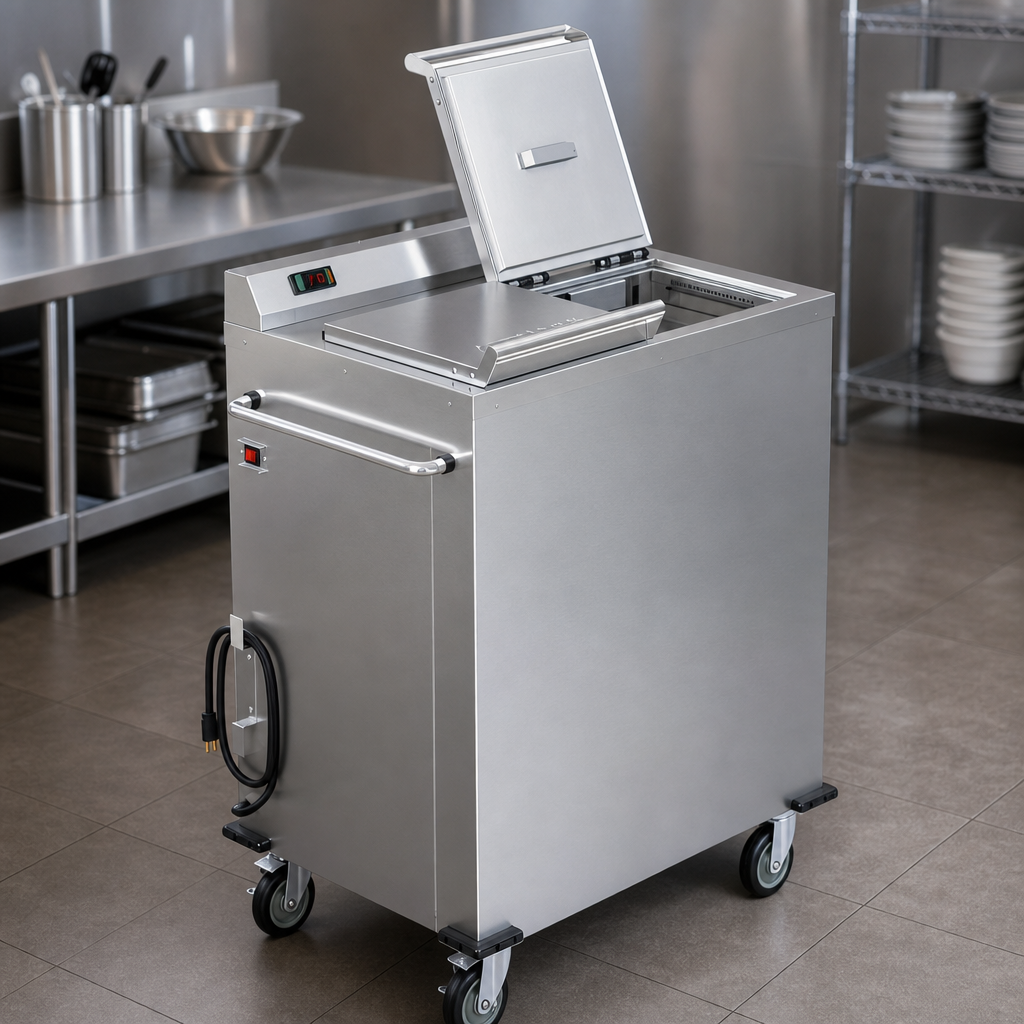

Heavy-Duty Stainless Steel Construction

Built with 304 high nickel 18-8 stainless steel exterior and frame, ensuring exceptional durability and resistance to corrosion for demanding commercial use.

Heavy-Duty Stainless Steel Construction

Forced Air Convection Heating

Circulates super-heated air evenly through the fully insulated cabinet, providing fast and efficient heating of wax bases in 75 to 90 minutes.

Self-Leveling Adjustable Silos

Two dispensing mechanisms with adjustable springs ensure easy access to bases as they are removed, accommodating 60 bases per silo (120 total).

Adjustable Digital Thermostat

Allows for precise temperature control, maintaining wax bases at an optimal 300°F for service.

Mobile Design with Casters

Equipped with four 5-inch polyurethane non-marking swivel casters (two with brakes) and corner bumpers for easy maneuverability and protection within busy kitchens.

Gasketless Soft-Close Lids

Fully insulated 20-gauge stainless steel lids with a gasketless design and soft-close hinges effectively retain heat and provide quiet operation.

Dual Voltage Operation

Operates efficiently at either 208V/60Hz/1-Phase or 240V/60Hz/1-Phase, adapting to different electrical service without additional components.

Type Wax Base Heater/Dispenser
Style Mobile, Convection
Installation Type Floor Model (With Casters)
Material 304 Stainless Steel
Interior Finish Stainless Steel
Compartments 2
Capacity 120 Wax Bases (60 per silo)
Pan Capacity 60 bases per silo
Temperature Range Up to 300°F (for bases)
Heating Time 75-90 minutes (for bases)
Controls Digital Thermostat, Thermostatic
Voltage 208/240 Volts
Hertz 60 Hz
Phase 1-Phase
Watts 3.2 kW (at 208V), 3 kW (at 240V)
Amps 15 Amps (at 208V), 13.3 Amps (at 240V)
Plug Type NEMA 6-20P
Country of Origin USA
Selling Unit Each
Units Per Case 1
Shipping Width 36 Inches
Shipping Depth 25 Inches
Shipping Height 43 Inches
Shipping Weight 300 lb.

Warranty & Protection

1-year parts and labor

Documents

PDF Cutsheet PDF Download PDF Catalog page PDF Download PDF Catalog page PDF Download

Frequently Asked Questions

This model, DXPSBH2WB, is specifically designed to heat and dispense 9-inch wax bases.
The unit features two self-leveling silos, each capable of holding approximately 60 wax bases, for a total capacity of 120 bases.
Full heating of the wax bases is accomplished in 75 to 90 minutes. For a fully loaded unit, the initial heat-up time is approximately 2 hours or less.
Yes, the DXPSBH2WB is a mobile unit equipped with four 5-inch polyurethane non-marking swivel casters, two of which have brakes, along with corner bumpers for easy and safe transport.
This is a dual voltage unit that operates on 208V/60Hz/1-Phase drawing 15 Amps (3200 Watts) or 240V/60Hz/1-Phase drawing 13.3 Amps (3000 Watts), and requires a NEMA 6-20P plug.
The exterior and frame are constructed from heavy-duty 304 high nickel 18-8 stainless steel, ensuring durability and a long service life.
